GIGA LXFG-1200 Automatic Folder Gluer Machine Off Line

Specifications

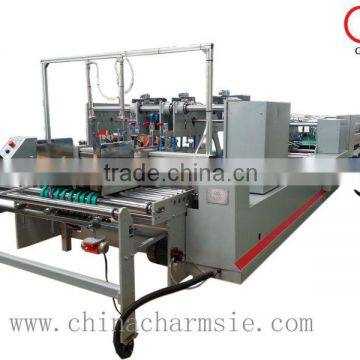

GIGA LXFG-1200 Automatic Folder Gluer Machine (Off line)

Ⅰ. Machine model: FG-1200 folder gluer for corrugated boxes

 Power supply:  380V    AC3F    50Hz

Ⅲ Machine configuration:

Feeder

1.Feeding belts   9 pcs (remarks:good friction for smoother feeding)

specification:8×25×1115mm

2. Equipped with 3 pcs adjustable feeding knives

3. Japan pulley (speed regulator)  1set ( controls the distance between sheets)

4. Vibrating motor   1 set

5. Motor for feeding:1.5KW

Gluing system

1.    each one for left and right

2.    glue-scraping device make glue not leaking

3. shaft core adopts multi-layer sealed anti-leaking device, developed by urselves

4.  knurled stainless steel gluing wheels

5.  anti-rust copper-made glue-scraper

Trombone section

1. Taiwan counter and sensor

2. Pneumatic kicker

3. Upper and lower belts are both driving system

4. Jogger system for the third correction of paper boxes

5. Inner frame are controlled by motors

Conveyor section

 1. Speed can be controlled according to main section

 2. Conveyor is lengthened, it is 5 meters, so the finished boxes will not be open.

 3.Upper and lower belts in conveyor are in driving system (more synchronous running)

We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for Fully Automatic Corrugated Box Machine  LX308N, LX-608CN LX707N or corrugating machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
