QT10-15 Automatic Cement Block Moulding Machine

nude packing.if needed,customers pay for it.

QT10-15 automatic cement block moulding machine

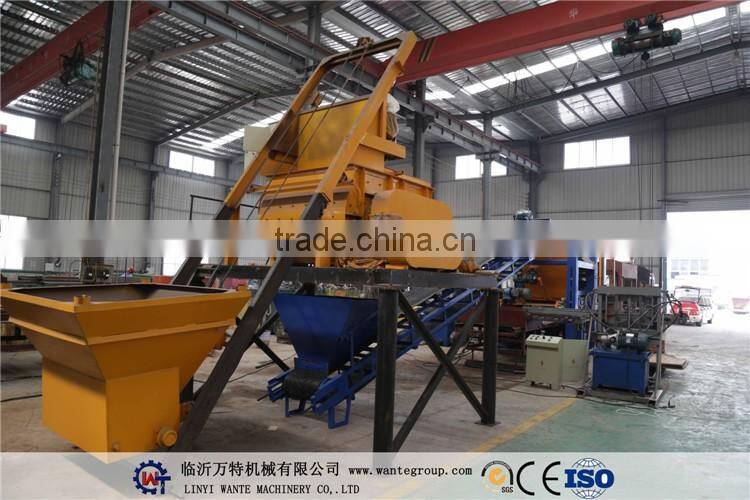

>>Production line

>>Features
1. Mainframe
The automatic block making machine applies the high-strength structural steel and special welding technique for its mainframe. The

firmness of the mainframe allows the whole machine to come with good rigidity and vibration resistance.
2. Guide Pillar
The guide pillar of this machine applies the ultrastrong special steel. By virtue of the chromate plated treatment, it perfectly resists torsion

and abrasion. Additionally, the four guide pillars together with the ultra-long guide bearing make the pressure head and mould move

accurately. This moving system adopts the special device that is good for lubrication, thus avoiding abrasion.
3. Material System
The crane of the material machine is controlled by the hydraulic system. That its hopper is connected to the crane by the rubber spring,

can offer favourable damping effect while preventing the vibration compaction of the remained materials. In the system, the hopper is

equipped with a door which can help realize the uniform material distribution.
4. Material Distributing System

In this system, the material storage and distribution are independent from each other. The material receiving in the material box is

accurately controlled. Under the function of the powerful centrifugal force, the material is speedily and evenly distributed.

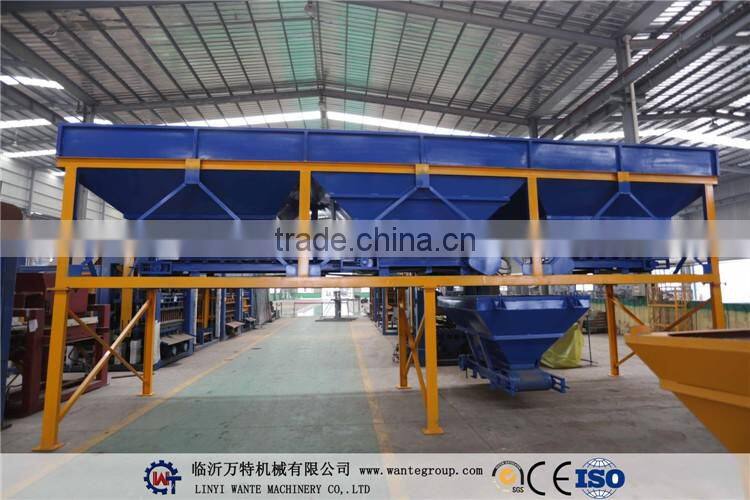

>>Batching machine

Three hoopers, 3 material hopper is of 3 M3, the weighing hopper is of 1.5M3, using accumulating  weighing system.

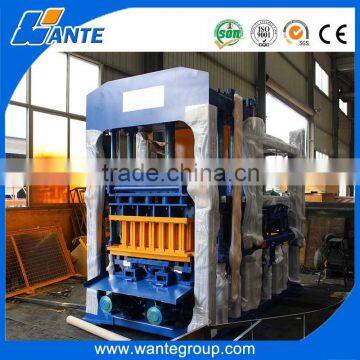

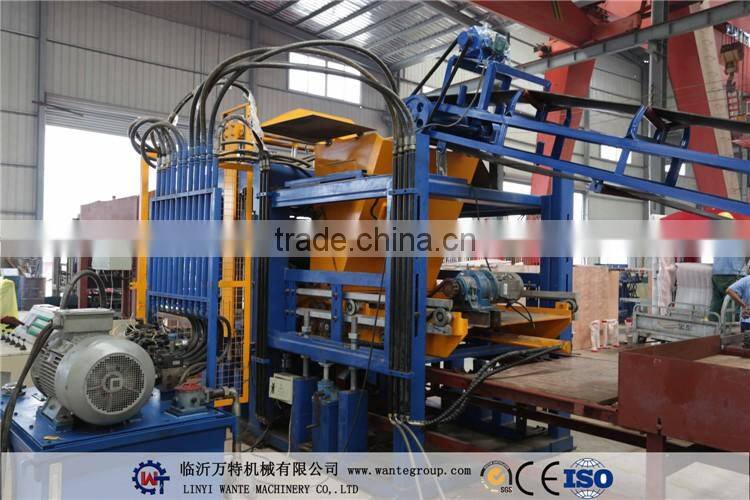

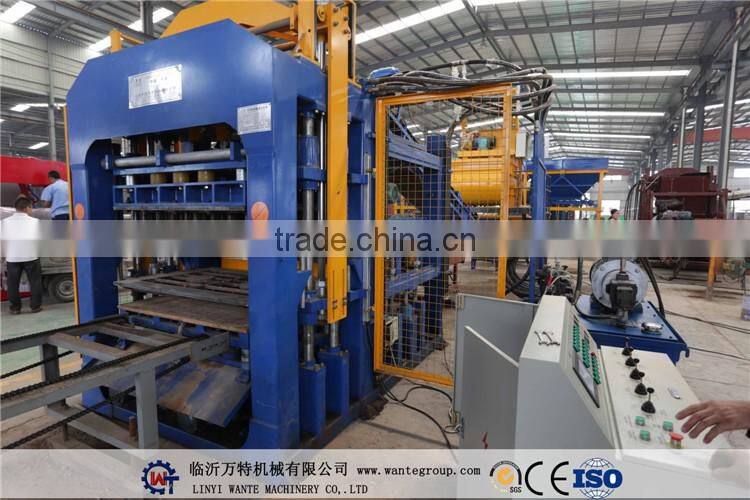

>>Host machine

The crane of the material machine is controlled by the hydraulic system. That its hopper is connected to the crane by

the rubber spring,can offer favourable damping effect while preventing the vibration compaction of the remained materials.

In the system, the hopper isequipped with a door which can help realize the uniform material distribution.

The guide pillar of this machine applies the ultrastrong special steel. By virtue of the chromate plated treatment, it perfe

ctly resists torsion and abrasion. Additionally, the four guide pillars together with the ultra-long guide bearing make the

pressure head and mould moveaccurately. This moving system adopts the special device that is good for lubrication,

thus avoiding abrasion.

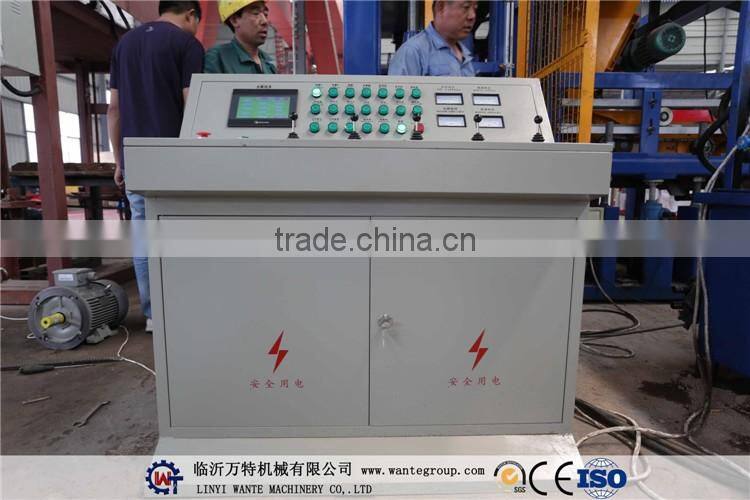

>>PLC

 Japan Mitsubishi PLC control system and Omron travel switch, man-machine interface, achieve dialogue and exchange

between manand machine. Dozens of mechanical action of different products could be adjusted through the menu to

select the addition and subtraction without needing professionals.

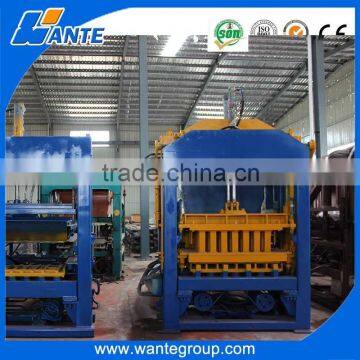

>>Mould

Moulds are made of 16 # Manganese steel, and being processed via the procedures of carburizing,nitriding and

quenching which gurantee moulds can be used 200 thousand times, The strength of moulds is HRC54~58 and each

mould shall be tested by QC before out of factory. and mould structure of the brick machine is designed to change

the mould easily.

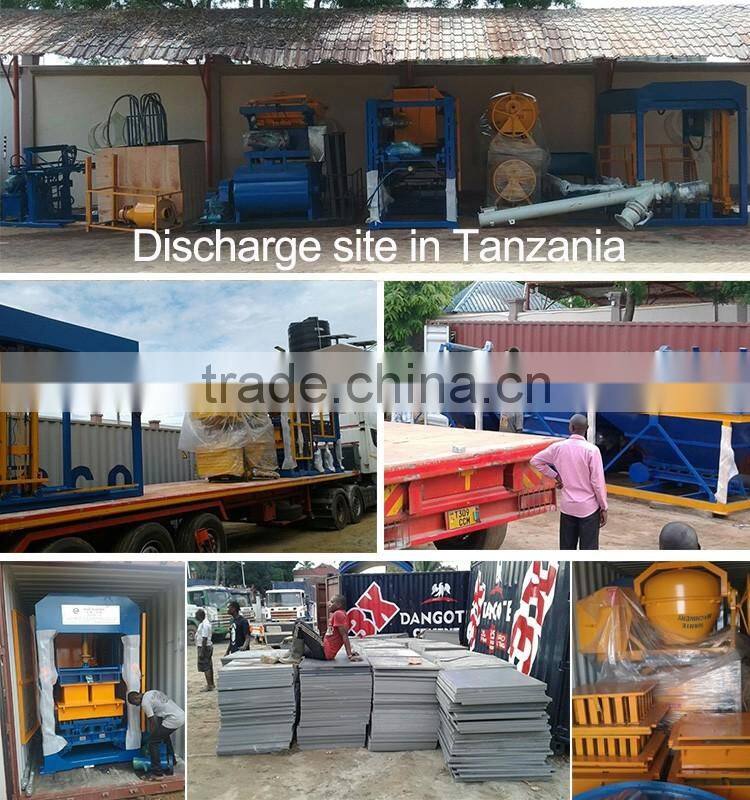

>>Customers

>>Feedback from customer

>>OUR SERVICE

----- Sales team & Technology team

>>COMPANY INTRODUCTION

Linyi WANTE machinery Co.,Ltd has more than 18 years' exprience of manufacturing burn-free block machine.We are

always the leading company in the field of block macihines industry. for now, we have achieved essential ceticifications

domestic and overseas,such like ISO9001,CE.

Our  products are Automatic Burn-free brick making machine, concrete brick machine, clay brick machine,mobile brick

machine mixer,batching machine .Our company posses more than 2000 employees,and one third of them are professio

nal engineers.
