QT6-15 hydraulic press fully automatic brick making machine,guangzhou block making machine Supplier's Choice
- qingdao port or any port of China
- T/T Credit Card
You May Like
-
QT6-15 block moulding machines for sale,columbia concrete block machine
-
QT6-15 fly ash brick making machine manufacturers,china construction equipment
Supplier's Choice
-
QT6-15 easy business opportunities hollow block machine for sale,cement block maker
Supplier's Choice
-
QT6-15 hotsale concrete block making machine,fully automatic block machine
-
Wante Machinery QT4-15C Automatic hydraulic concrete block machine price
-
Hot selling QT4-25 Fully Automatic Concrete Hollow Block Machine Line
Product Details
| Condition | New | Type | Paving Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 1260pcs/hrs | Place of Origin | Shandong, China | |
| Brand Name | wante | Model Number | QT6-15 brick making machine price | |
| Voltage | 220/240v/380v/adjustable | Power | 29.1KW | |
| Dimension(L*W*H) | 3500x1700x2930mm | Certification | ISO9001&CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
The package divided
The full line need container loading
The spare parts will packed in small package
Some big parts will divided into small part of loading
Product Description
QT6-15 fully automatic block machine introduction:
1>QT6-15 can realized fully automatic,4 workers is enough for whole line.it including PLD1200 batching,JS750 mixer,,QT6-15 host machine,stacker.

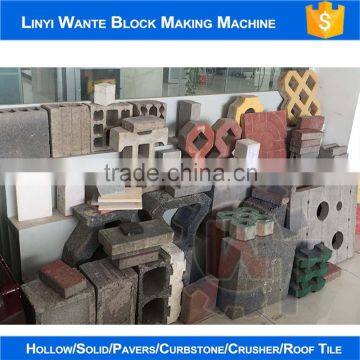

2>one machine can produce hollow blocks,solid blocks,paving blocks,curbstone by changing different molds.we have specialized engineer team,whom can give you best solution for block design.
3>High quality of every parts of line.sensor brand omron,motor brand siemens or shanbo,ABB.PLC brand japan mitubishi.
4>Mass process of machines.All machines have the same standard,so one mold can be shared to other machines.and accesory avilable for customers all the time.

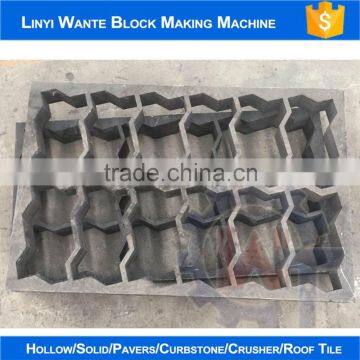

5>Mold all made by manganese steel with carburizing treatment,it will be wear-resistance and can be used for more than 200,000times.
6>High capacity.one mold 6 pieces for 400*200*200mm hollow blocks.the shaping clycle is 15s.
Production line showing:
QT6-15 block making machine line parts:
1.wheel loader
To transport the material like sand,gravel,stone chips to batching machine hopper.
| Wheel loader | |
Rated weight of the hopper (m3) | 1 | |
Rated loading weight (T) | 1.8 | |
Maximum breakout force | ≥58kN | |
Max discharging height (mm) | 2510mm | |
Maximum drawbar pull | 2510mm | |
Maximum drawbar pull | ≥56kN | |
Maximum grade ability | 30° | |
Gross weight (kg) | 6200 | |
Demission(mm) | 5798*2140*2920 | |
To store the cement | Cement silo | |
Length | 11M | |
capacity | 50T | |
Diameter | 2.15M | |
Total weight | 5T | |
3.Batching machine
To store the material of sand,garvel,stone chips it adopts accumulate meaturing.
| PLD1200 Batching machine | |
Weigh bucket capacity (L) | 1200 | |
Productivity (m3/h) | 56 | |
Batching precision | ±1% | |
Max weighing capacity (kg) | 3000 | |
Number of material matching | 3 | |
Work loading height (mm) | 3000 | |
Feeding belt speed (m/s) | 1 | |
Power (kw) | 12 | |
Gross weight (kg) | 4000 | |
Dimension (mm) | 9000*2200*3500 | |
4.JS500 mixer
Roll compulsory mixer,water and cement filled automaticlly
| JS500 mixer | ||
Charging Capacity (L) | 800 | ||
Discharging Capacity (L) | 500 | ||
Production Capacity (m3/h) | ≥25 | ||
Max Aggregate Diameter mm | ≤40/60 | ||
Cycle Time (s) | 72 | ||
Stirring Vane | Rev Speed (r/min) | 31 | |
| Quantity | 2×7 | |
Stirring Motor | Model |
| |
| Power (KW) | 18.5 | |
Lifting Motor | Model |
| |
| Power (KW) | 5.5 | |
Pump Motor | Model |
| |
| Power (KW) | 0.75 | |
Dimensions ( mm) | Travel State | 3030×2520×2880 | |
| Operation State | 5025×3100×5680 | |
Total weight (Kg) | 3500 | ||

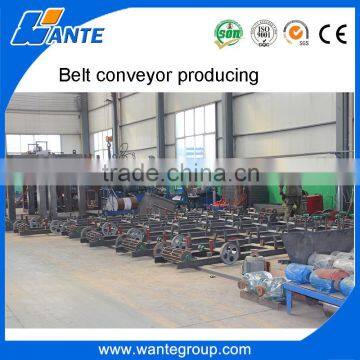

nveryor belt
| Conveyor belt | |
Belt width (M) | 6 | |
Belt length (M)/KW | 6/2.2 | |
Belt speed (M/S) | 2 | |
6.Host machine
| QT6-15 block machine | |
Overall size | 2850x2100x2600mm | |
Shaping cycle | 15-18 seconds | |
Pallet size | 850x750x25mm (bamboo) | |
| 850x750x20mm (plastic) | |
Vibration frequency | Max.5500 R/Min | |
Electricity | 380V/220V/ (adjustable) | |
Vibration force | 55KN | |
Total weight | 7000 KGS | |
7.Stacker machine
it can be stacked with 3-4 layers | Stacker machine | |
Overall size | 2100(L)×1800(W)×2300(H)mm | |
Power (KW) | 3KW | |
Electricity | 380V/220V/ (adjustable) | |
Stacker layer | 3 floor | |
Speed | 0.5M/S | |
Total weight | 2000KGS | |
8.Forklift
| FORKLIFT | |
Model | CPC 30 | |
Power supply | Diesel engine | |
Lifting capacity | 3000KGS | |
Lifting height(mm) | 3000 | |
Fork size (mm) | 1000x120x35 | |
Diesel engine brand | CHINA XINCHANGN | |
Size(mm) | 2700x1250x2150 | |
QT4-15 working principle is the same with QT6-15,the biggest difference is capacity.
We have shipping company cooperated for years,can give you best advice about delivery.
You can tell me your port,and we check the delivery cost for you.
About the package,usually wood package,iron package or as customer's request.
Welcome to visit our factory at anytime.
Send email to get more information,like video,quotation,photos,delivery.
Our services:
Pre-sale service support
According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
During-sale service support
Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking. Provide a full instruction manual for the whole system. Provide technical guidance for the installation and use of the unit, including installation advice and electrical connection. Provide unit debugging and training for the operation of the machine on the working site and coordiante the customers with check and acceptance of the unit.
After-sale service support
Send technicians to installation site for the guidance, equipment adjustment and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
