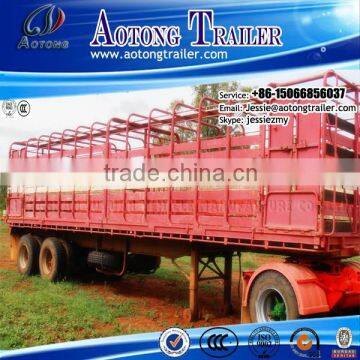

3 Axles Poultry Transport Semi Trailer / Truck Trailer With Stake or Fence

Product Information

Product

store house bar semi trailer

Brand Name

Aotong Brand

Model Number

LAT9403CLXY

Announcement (batch)

226

Place of Origin

Shangdong province, China

Color

Any color will be available

Manufacturer

Liangshan Juyuan special vehicle manufacturing Co., Ltd

Product Specifications

Total Weight

39500 kg

Rated Load

31000 kg

Tare Weight

8500 kg

Wheel Base

5350+1310+1310, 5000+1310+1310(mm)

Tyre Specifications

11.00R20 12PR

12R22.5 12PR(Vacuum tyre or rail tyre)

No. Of the Tyres

12

Axle Brand

FUWA (BPW optional)

No. Of the Axles

3

Axle-load

24000 kg

Pieces of leaf-spring

10 (8) (4)

Suspension

Independent stamping steel rigid suspension ( air suspension)

Departure Angle

17

Front/Rear Overhang

1830 mm

Outside Dimensions (LxWxH)

11000,10500X2500X 3950,3750,3550,3350 (mm)

Interior Dimensions (LxWxH)

10800,10300X2350X 2400,2200,2000,1800 (mm)

Material of the Main Beam

Q345B manganese plates, automatic submerged arc welded

Brake System

ABS: RL122-1 (optional )

Brake Air Chamber

Four double and two single chamber

Usage

Suitable for the agricultural, sideline products and other light products' transportation. The design is convenient for products' unloading, and it's not only satisfy the rated load also reduce the burden of the compartments.

Other Descriptions

The cargo's carring part of the stake truck is store house bar style designed, the beam wears through the longitudinal beam which is welded as a space frame structure, making the frame strength, stiffness, flexibility an equilibrium, a strong carrying capacity without permanent deformation.

Other Specifications

The max height of the rear guard from ground is 400mm, and the cross section is 160mmX70mm.
