Cheap Livestock Price of Truck Trailer

Name

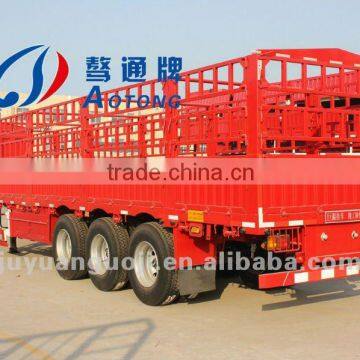

Livestock transport semi trailer

Main Frame

Heavy duty and extra durability designed;

Opting for high tensile steel Q345B,

welded by automatic Submerged-Arc processes.

Floor

Steel sheet 3mm thickness.

Axle

Three Units of FUWA(brand) 13Ton axle (BPW optional)

Suspension

A couple of FUWA mechanical 3-axle suspension

King Pin

One unit of 2" SAE bolted-in kingpin

Landing Gear

JOST-D200,Two-speed,manual operating,heavy duty landing gear

Wheel Rim

12 units of 7.50-20 rim

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Pneumatic Braking System

Two units of WABCO RE 6 relay valve;

four units of T30/30 spring brake chamber;

two units of T30 brake chamber;

two units of reliable local brand 40L air tank;

two units of reliable local brand standard coppery air-connector.

( ABS system optional)

Electrical System

JAEGER POWAY ,24V 7-pin ISO 1185 socket;

Tail lamp with turn signal, brake light & reflector, Side lamp etc.

Painting

Sand blasting processing clean rust;

1 coat of anticorrosive primer;

2 coat of finish urethane paint.(Color as customer choice)

Accessory

One tooling box with a set of standard trailer tool

Description

Model

LAT9400CCQ

Overall Dimension (LxWxH)

13000,12500X2500X3400,3600,3800,4000(mm)

Interior Dimension (LxWxH)

12850,12350X2340X1800,2000,2200,2400(mm)

Tyre

11.00R20 ; 1100-20;12R22.5

Total quality

40000kg

Rated load

33000 kg
