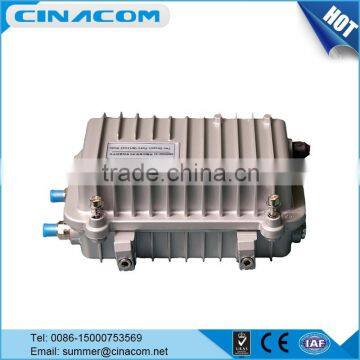

Two RF Output Port Field Optical Receiver

FOB Price

USD $27.67 - $27.67 / Piece

100 Pieces(Min.Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	CINACOM
Model Number	CNOR300-C1

Product Description

CNOR300-C1 is a type of economic optical receiver. Connecting with EPON, it can be applied to FTTB. Extra-low optical receiving, good lighting protection, flexible output power and 6 LED displaying enable it to be the prior choice in HFC network.

Adopting international advanced technology of GaAs HBT ICS makes the optical receiver with extra low noise power. Under the same conditions of receiving power, the CNR is raised at least 5.0dB more than the average optical receiver. The CNR still remains above 50dB when the receiving power is -6dB .

With the applying of ultra low power receiving technology, the cost is saved and also the existing network infrastructure is maintained.

Product Feature

• Combined with EPON, suitable to FTTB and FTTC.

• Advanced synthesis of arsenide technology

• Ultra-low optical receiving in the range of -9~+2dBm

• 6 LED light displaying each optical power by segment

• With high index, high level, low distortion, low power consumption

• Flexible output modes.

• Aluminum-case housing, waterproof

Technical Index

Item	Unit	Index
Operating wavelength	nm	1290~1570
Receiving power	dBm	-9~+2
Optical fiber connector		SC/APC,FC/APC
Return loss	dB	≥45
C/N	dB	≥51(-1 dBm input optical power)
Bandwidth	MHz	47~860/1000
Output power	dBμV	100dBμV(-2dBm input optical power)
Flatness(link)	dB	±0.75
Reflect loss	dB	47~550MHz≥16;550~860MHz≥14
Output impedance	Ω	75
Power supply	V	AC60V/50Hz,AC220V/50Hz
Power consumption	W	12
Maximum current	A	12
Operating temp.	℃	-25~+55
Storage temp.	℃	-40~+70
Relative humidity	%	Maximum 95
Size	mm	220×155×105
Weight	Kg	1.2
