Indoor HFC CATV Optical Node Receiver

FOB Price

USD $198.98 - $236.35 / Piece

1 Piece(Min.Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	CINACOM
Model Number	CNOR300-L

Product Description

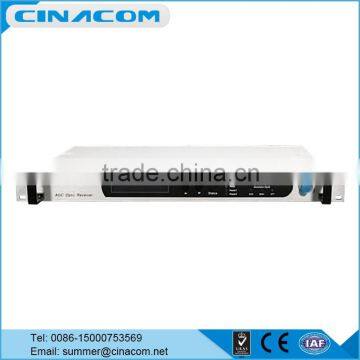

CNOR300-L

Indoor HFC CATV Optical Node Receiver

Product Description

CNOR300-L series AGC forward path optical receiver is designed and produced by absorbing the advantages of all kinds of CATV AGC optical receiver from both home and abroad. Featured with high index, multi-function and high reliability, it is suitable for high-end subscribers.

Product Feature

• With AGC

• The working parameter is controlled by microprocessor and showed by display screen.

• Dual power supply inside backup. Switch full-automatically.

• Casing temperature auto-control.

• Advanced Network Management function.

• Intuitional RF input level display.

Technical Index

Performance			CNOR300-L6	CNOR300-L3
Optic feature	Wavelength	(nm)	1310 / 1550
	Input power	(dBm)	-5~+3
	Working mode		Optical AGC
	Return wave loss	(dB)	≥55
	Optical connector		FC/APC, SC/APC
RF feature	Bandwidth	(MHz)	45-862
	Output level(Vo)	(dBμV)	96	113
	Flatness	(dB)	≤±0.5
	Output level adjustable	(dB)	0~20(MGC)
	Return loss	(dB)	≥16(750MHz)
	Output impedance	(Ω)	75
Link feature	Test channel		PAL-D/60CH
	CNR	(dB)	≥52(10Km fiber, -1dBm receive)
	CTB	(dB)	≤-70
	CSO	(dB)	≤-63
General feature	Network management interface		RJ45,RS232(support IE and SNMP)
	Power supply	(V)	90~265VAC (-48VDC selectable)
	Power Consume	(W)	≤50(single power work)
	Work temp.	(°C)	-5~65(Machine temp. Control automatically)
	Storage temp.	(°C)	-40~85
	Relative humidity	(%)	5~95
	Size	(")	19101.75((W)(D)(H)
