High cost performance zirconia structure ceramics
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Zirconia Ceramic | |
| Model Number | structure ceramics | Brand Name | hxpceramics |
Product Description
Specifications
High cost performance zirconia structure ceramics
-Mechanical strength
-High density
-High hardness
-Wear resistant
High cost performance zirconia structure ceramics
Features:
1.High density
2. High hardness
3. Low thermal conductivity
4. Chemical inertness
5. Resistance to molten metals
6. Good Wear resistance
7. High fracture toughness
We can supply the products according to customer's drawings, samples and performance requirement.

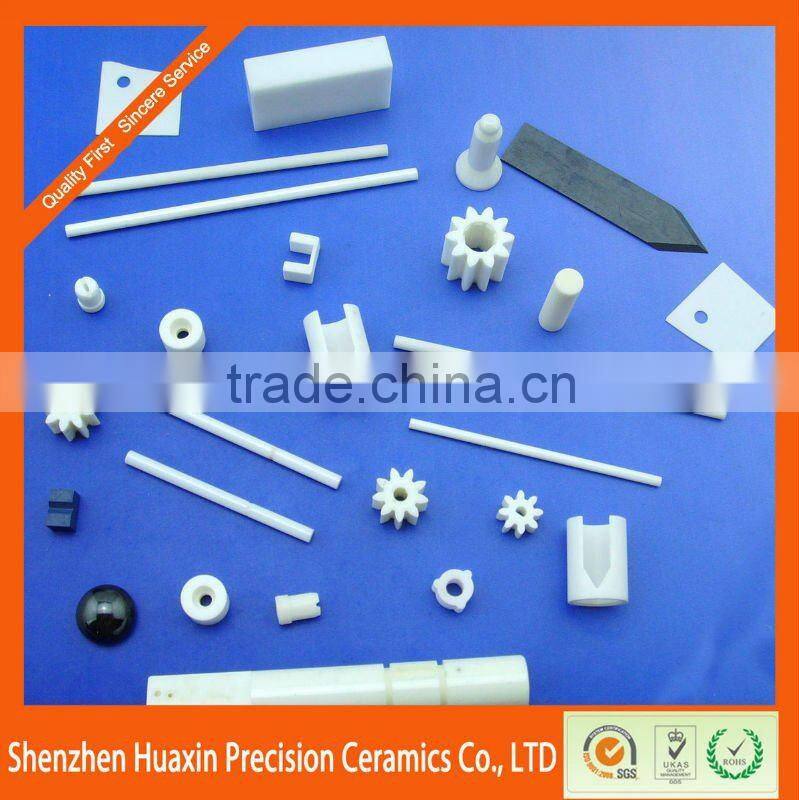

Zirconia ceramic are used in shaft , plunger, sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.
| Performance | |||
| Item | Unit | Zirconia | |
| Physical Characteristics | Bulk density | g/cm3 | 6.05 |
| Water absorption | % | 0 | |
| Mechanical Characteristics | Flexural strength | Mpa | 1000 |
| Hardness Vickers | Gpa | 89 | |
| Elastic modulus | Gpa | 200 | |
| Poisson’s ratio | - | 0.31 | |
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 10 |
| Thermal conductivity | w/(m.k) | 2.5 | |
| Specific Heat | *10-3J/(kg*K) | 0.5 | |
| Processing technology | |||
| Process range (mm) | |||
| Outside Diameter | 1---300 | ||
| Inside Diameter | 0.5---300 | ||
| Length | 0.5---600 | ||
| Accuracy of working (mm) | |||
| Perpendicularity | 0.001 | ||
| Concentricity | 0.001 | ||
| Roundness | 0.0005 | ||
| Straightness | 0.005 | ||
| Parallelism | 0.01 | ||
| Planeness | 0.005 | ||
| Roughness | 0.005 | ||
| Fit clearance | 0.005 | ||
High cost performance zirconia structure ceramics
High cost performance zirconia structure ceramics
Our Services
Inquiry response: Your inquiries will be replied in 24 hours.
Sample support: Two free samples are available in 3~5days.
Delivery time: Your shipment will be loaded in 15~25days.depends on quantity.
Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only)
We can supply the products according to customer's drawings, samples and performance requirement.
