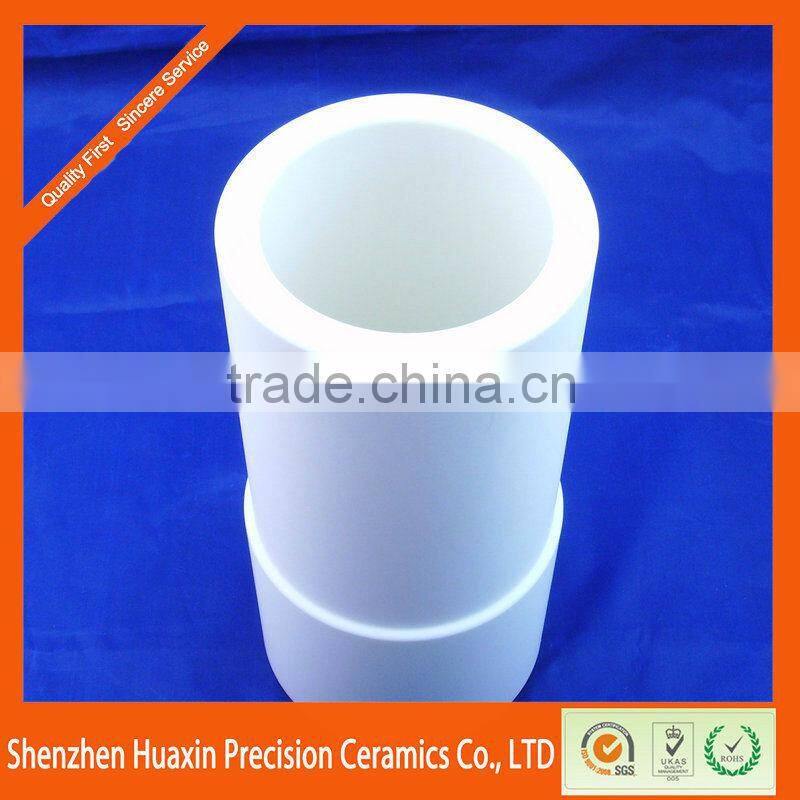

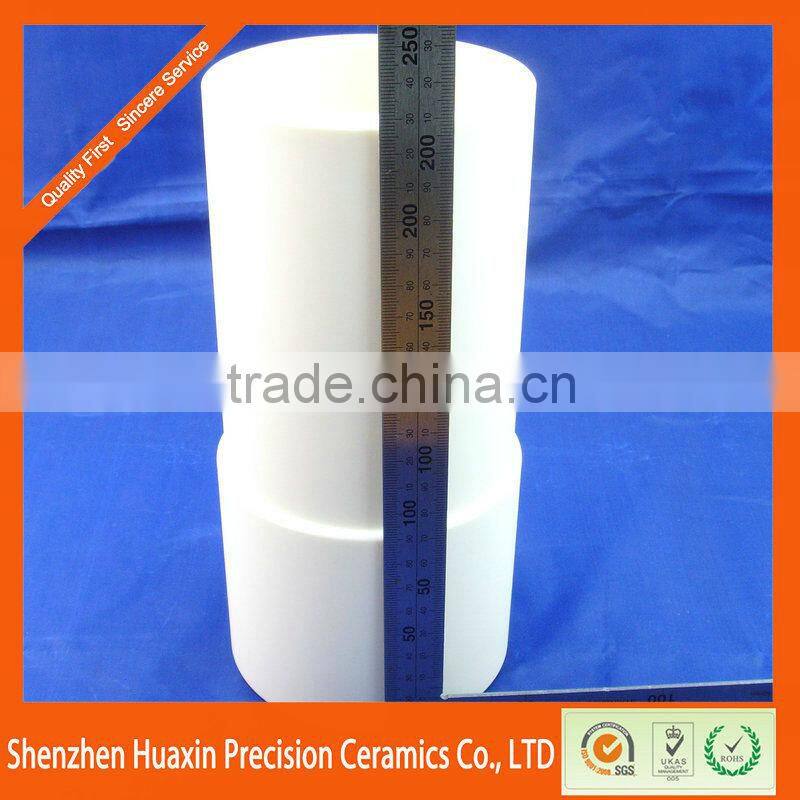

High Quality 99.5% Alumina Ceramic Tube/Pipes Al2o3
USD $0.1 - $20
/ Piece
100 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Great quality industrial 95% alumina ceramic tube al2o3 rods
-
High pure 95% ceramic alumina tube /pipes for the chemical resistance
-
Mission High Quality Industrial 95% Alumina Ceramic Tube /Rod
-
Mission High Quality Industrial Ceramic Alumina Rod
-
Manufacture high quality eletrical 95% al2o3 ceramic alumina rod
-
Stiffness texture industrial 95 99 al2o3 ceramic alumina rods
Quality Choice
Product Details
| Place of Origin | Guangdong, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | 99.5% Alumina Ceramic Tube | Brand Name | hxpceramics |
Product Description
High Quality 99.5% Alumina Ceramic Tube/Pipes Al2o3
Product Description
High Quality 99.5% Alumina Ceramic Tube/Pipes Al2o3
Alumina Ceramic
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
We can supply the products according to customer's drawings, samples and performance requirement.
| Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc | |||||
| Item | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 | |
| Physical Characteristics | Heat resistance | 0C | 1100 | 1500 | 1550 |
| Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 | |
| Water absorption | % | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | 0.21 | 0.22 | 0.23 | ||
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
High Quality 99.5% Alumina Ceramic Tube/Pipes Al2o3
High Quality 99.5% Alumina Ceramic Tube/Pipes Al2o3
Our Services
Inquiry response: Your inquiries will be replied in 24 hours.
Sample support: Two free samples are available in 3~5days.
Delivery time: Your shipment will be loaded in 15~25days.depends on quantity.
Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only)
We can supply the products according to customer's drawings, samples and performance requirement.
