Home > Products > Machinery Ceramic Part > For mini pump application zirconia ceramic shaft

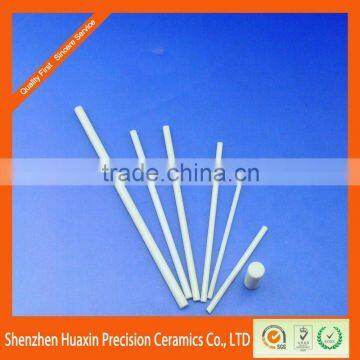

For mini pump application zirconia ceramic shaft
USD $0.1 - $10
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Precision Finishing 99.5% alumina ceramic rod roller, wear resistant ceramic shaft
-
High quality customized black 99.5% alumina ceramic rod roller
-
high hardness advanced ceramics alumina ceramic rod roller
-
Precision Finishing 99.5% alumina ceramic rod shaft
-
For micro pump precision alumina ceramic gear shaft
-
For Micropump precision driving shaft ceramic zirconia
Product Details
| Place of Origin | Guangdong, China | Brand Name | hxpceramics | |
| Model Number | zirconia ceramic shaft |
Product Description
Specifications
For mini pump application zirconia ceramic shaft-Good Wear resistance
-High hardness
-High strengh
-High density
For mini pump application zirconia ceramic shaft
Features:
1.Use temperatures up to 2400°C
2. High density
3. High hardness
4. Low thermal conductivity
5. Chemical inertness
6. Resistance to molten metals
7. Good Wear resistance
8. High fracture toughness
We can supply the products according to customer's drawings, samples and performance requirement.
Zirconia ceramic are used in shaft , plunger, sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.
| Performance For Industrial Ceramic | |||
| Item | Unit | Zirconia | |
| Physical Characteristics | Heat resistance | 0C | 2200 |
| Bulk density | g/cm3 | 6.05 | |
| Water absorption | % | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 1000 |
| Hardness vickers | Gpa | 89 | |
| Elastic modulus | Gpa | 200 | |
| Poisson’s ratio | 0.31 | ||
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 10 |
| Thermal conductivity | w/(m.k) | 2.5 | |
| Specific Heat | *10-3J/(kg*K) | 0.5 | |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | N.A. |
| Dielectric loss angle | *10-4 | N.A. | |
| Dielectric strength | *106V/m | N.A. | |
| Processing technology | |||
| Process range (mm) | |||
| Outside Diameter | 1---300 | ||
| Inside Diameter | 0.5---300 | ||
| Length | 0.5---600 | ||
| Accuracy of working (mm) | |||
| Perpendicularity | 0.001 | ||
| Concentricity | 0.001 | ||
| Roundness | 0.0005 | ||
| Straightness | 0.005 | ||
| Parallelism | 0.01 | ||
| Planeness | 0.005 | ||
| Roughness | 0.005 | ||
| Fit clearance | 0.005 | ||
