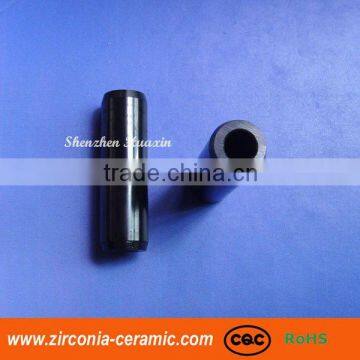

Precision Zirconia Ceramic Plungers, Black Zirconia Ceramic Roller
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Precision Zirconia Ceramic Plungers Industrial Black Zirconia Tube
-
Precision Zirconia Ceramic Plungers, High Quality Zirconia Ceramic Tubes
-
Precision Zirconia Ceramic Plungers
-
Precision Zirconia Ceramic Plungers, Good Insulation Ceramic Tubes And Rods
-
For Micropump precision zirconia ceramic gear shaft
-
For Micro pump precision gear shaft driving ceramic zirconia
Product Details
| Place of Origin | Guangdong, China | Type | Ceramic Rods | |
| Application | Industrial Ceramic | |||
| Model Number | ceramic plungers | Brand Name | Hxpceramcs |
Product Description
Specifications
precision zirconia ceramic plunger-High density
-Wear resistance
-High hardness
-Used in pump plunger
Precision Zirconia Ceramic Plungers, Black Zirconia Ceramic Roller
Use temperatures up to 2400°C
High density
Low thermal conductivity (20% that of alumina)
Chemical inertness
Resistance to molten metals
Ionic electrical conduction
Wear resistance
High fracture toughness
High hardness
Zirconia ceramic are used in shaft , plunger, high-Pressure cleaning machines. sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. | |||
Zirconia ceramics performance | Density | g/cm3 | ≥6.0 |
Water absorption | % | <0.05 | |
Firing temperature | °C | 1550 | |
Hardness | HV | 1350 | |
Bending strength | MPa | 950 | |
Compression strength | Mpa | 25000 | |
Breaking tenacity | Mpa·m1/2 | 8 | |
Hot expansion coefficient | /°C | 9.5x10-6 | |
Processing technology | |||
Process range (mm) | |||
Outside Diameter | 1---300 | ||
Inside Diameter | 0.5---300 | ||
Length | 0.5---800 | ||
Accuracy of working (mm) | |||
Perpendicularity | 0.01 | ||
Concentricity | 0.01 | ||
Roundness | 0.005 | ||
Straightness | 0.005 | ||
Parallelism | 0.01 | ||
Planeness | 0.005 | ||
Roughness | 0.05 | ||
Fit clearance | 0.005 | ||
We can supply the products according to customer's drawings, samples and performance requirement.
precison ceramic, precision ziconia ceramic, zirconia, ceramic part, ceramic structure, zirconia ceramic shaft sleeve pipe roller tube, zirconia ceramic shaft piston and gear, Zirconia ceramic rod, machinable ceramic rod for industry
