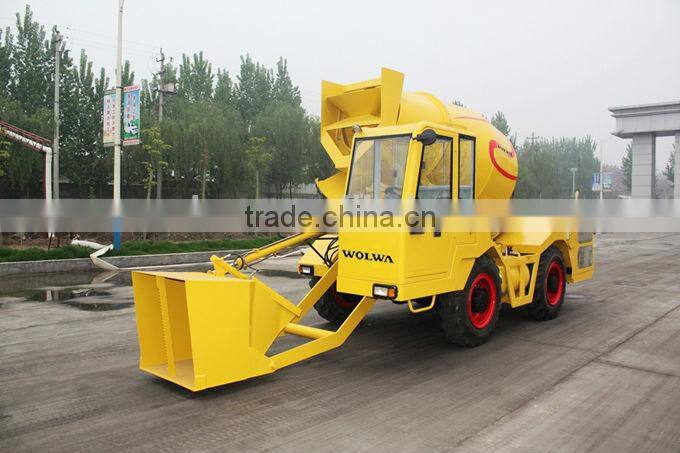

Factory Price Self Loading Concrete Mixer 2.5CBM Mixing Volume GNJB250

FOB Price

US$ 1 - 4 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Wolwa	Model Number	GNJB250
Mixing Power	81KW	Outline Dimension	6700x2400x3100mm
After-sales Service Provided	Engineers available to service machinery overseas

factory price self loading concrete mixer 2.5CBM mixing volume GNJB250

1. engine type: four stroke water-cooled turbocharged engine

2. Number of cylinders: 4

3. drive type:four drive

4.Min turning diameter:8m

5.machine weight:6250kg

6.Dimention:6700x2400x3100mm

Main specification
Mixing capacity	2.5 m3
Drum capacity	3.5m3
Drum angle	16°
Rotation speed	0-14r/min
Angle of drum rotation	270°
Mixing drum blades	Spiral blades
Chute
Swing angle	60°
Angle control	Hydraulic control
Diesel engine
Type	Perkins YC4A125Z-T21
Rated power/rpm	81kw/2300rpm
Max torque/rpm	450n.m/15000-1700rpm
Cylinder	4-cylinder
Cooling type	Water cooling
displacement	4.58L
VEHICLE
Net weight	6250KG
Gross weight	13000kg
Transmission	Hydraulic 4wheel drive*4wheel turning
Brake	Hydraulic brake Front and rear independent system
Chassis	Homemade
Distance of front/rear wheelbase	1905mm
Wheel base	2155mm
Tilt angle	30%
Loader	Hydraulic control door
Speed	High 0-20km/h low 0-9km/h
Min turning radius	6.5m/r
Tire	1000-20
Dimension	670024003100mm
Water tank
Supply water	Hydraulic water pump
Water speed	240l/min
Water tank capacity	450L
