china factory sell diesel power tracked carrier truck
MODEL: tracked carrier 008
loading capacity: 800 to 1000kgs

diesel rubber tracked carrier 800kgs loading weight

mini tracked carrier

ride-on rubber carrier vehicle 008

1) specification for diesel power tracked carrier truck

Model	GNFC600
Length×Width×Height(mm)	2120×1080×1080
Deck dimension (mm)	1300×960×200
Deck height(mm)	500
Grip height(mm)	1070
Pedrail width (mm)	200
Pedrail distance(mm)	640
Max. load weight(Kg)	600
Net weight(Kg)	330
Min. turning radius (mm)	3550
Gear	Forward 1.7,2.5,3.4,5.3, Backward 1.6,3.3
Speed	Up4.8, down2
Engine model	KF205S
Rated power/Rated rotation speed (kW/r/min)	3.6/3600
Fuel tank capacity(L)	3.6
Cooling mode	Forced air cooling
Ignition mode	Recoil starter
Clutch type	Belt tension clutch
Steering device	Grip type
Braking mode	Mechanical inner expanding type
Power driving mode	Belt
Static hill holding angle( °)	No more than 20°

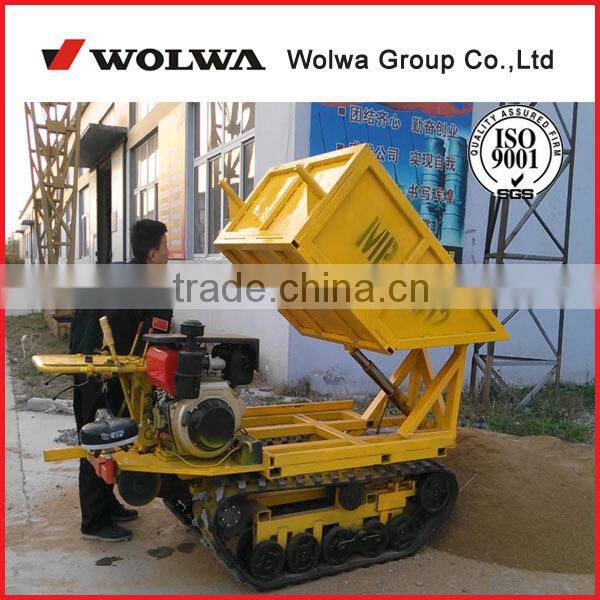

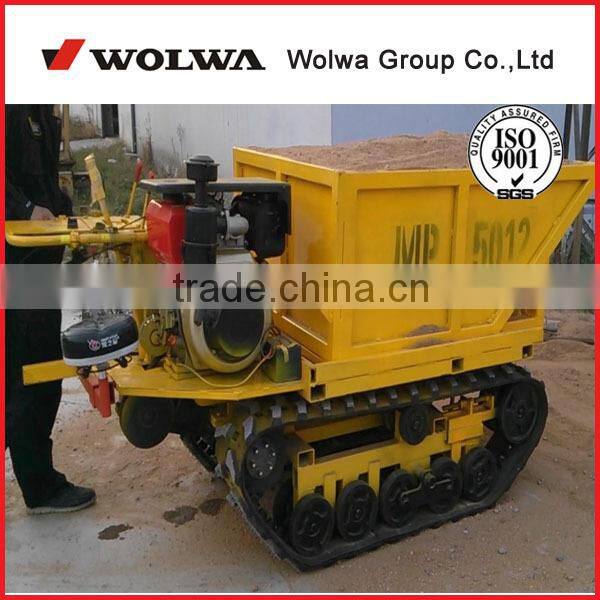

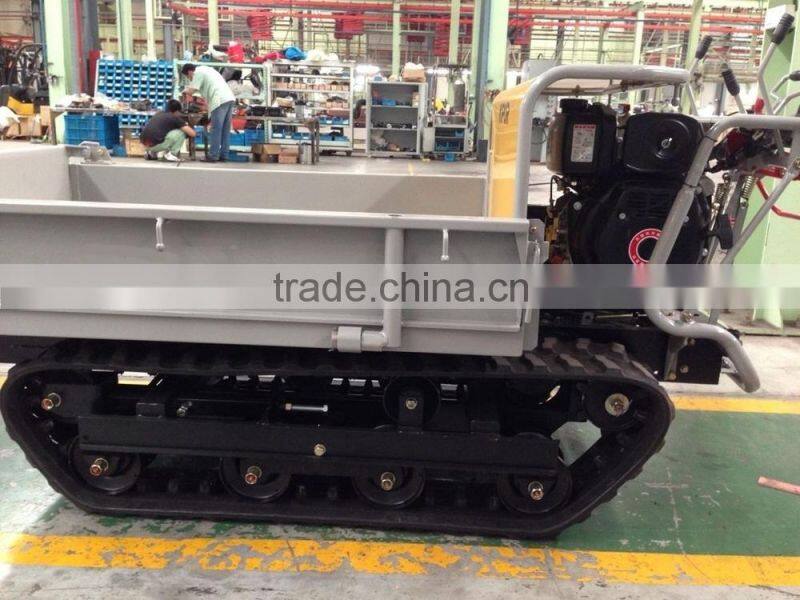

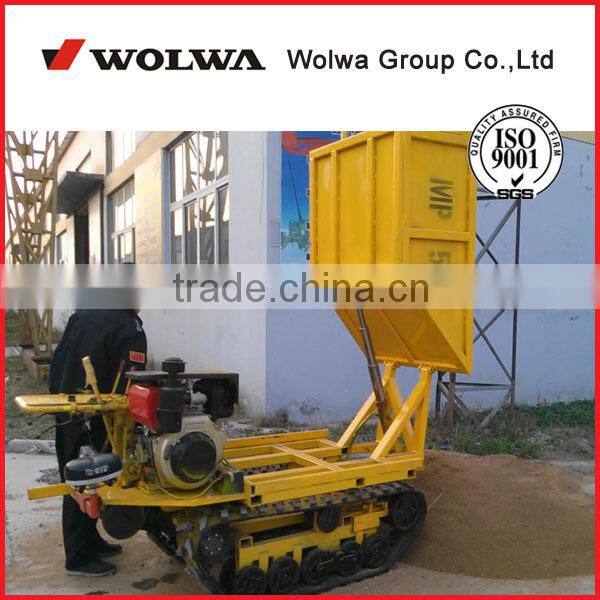

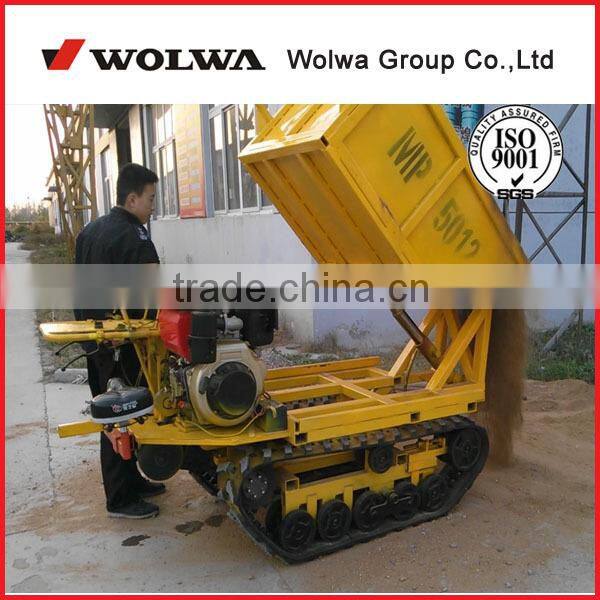

2) diesel power tracked carrier truck photo
