1ton mini dumper truck
Rated load 1000
Rated bucket capacity 0.5
Dumping height 150

dumper truck, dumper price, mini dumper, GN10, 1ton load capactity

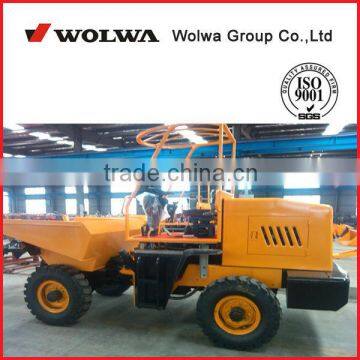

1ton mini dumper truck

GN10 is a kind of mini dumper truck, wheel stype.

1) specification for 1ton mini dumper truck

Item		GN10

Rated load(kg)		1000
Rated bucket capacity(m3)		0.5
Dumping height(mm)		150
Max .climbing gradient ( O )		21
Bucket width		1480
trave speed(km/h)	Forward gear Ⅰ	6.8
	Forward gear Ⅱ	9
	Forward gear Ⅲ	22
	Reverse gear	4.8
Min turning radius (mm)		4000
Overall dimension (length width high)(mm)		262016001420
wheel base(mm_)		1500
tread (mm)		1230
Minimum ground clearance(mm)		200
The weight of machine(kg)		1000
Engine Model	Model	changcai ZS1100
	Rate power(kw)	12.1
	Rated speed(r/min)	2200
Tipping system		Mechanical tipping hopper
Electic starting		NO
20container can be loaded with		6 units/2decks
drive		2 wheel drive
