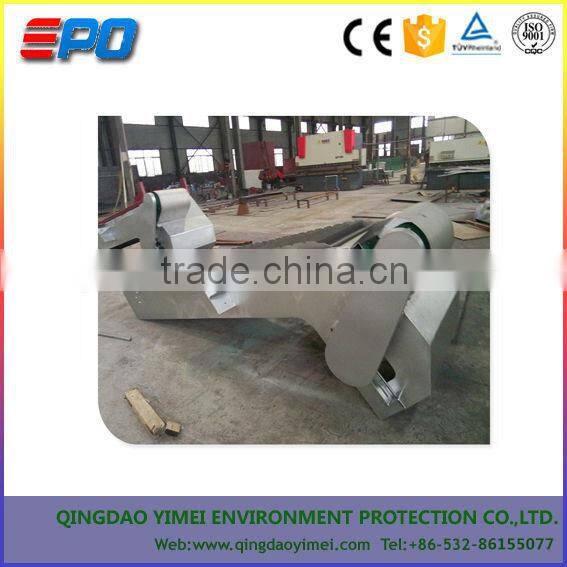

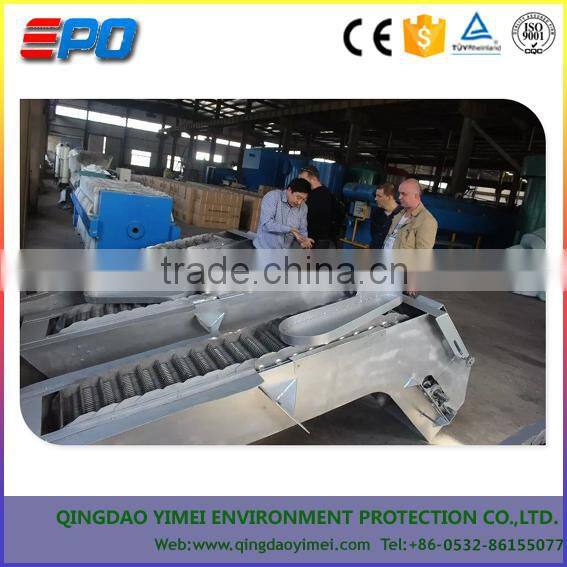

Mechanical Bar Screen/Automatic Rotary Fine Bar Screen Machine

Automatic rotary fine bar screen machine

Introduction:

YMHG serial rotary bar screen (grilling spotter) is a kind of solid-liquid separation device, which can continuous automatic eliminate all kinds of figure sundries in the fluid, which can as a special equipment widely used in urban sewage treatment,

water supply industry,, electric plant water inlet, at the same time, it can be as a essential special equipment in the production processing of textile, food processing,, paper making, leather etc industry, it is the most advanced Solid-liquid separation equipment in china. Rotary grilling machine also called bar screen spotter.

Structure and work principle

YMGS serial rotary bar screen mainly composed of driven device,rake tooth facility ,Flush facility etc, which is assembled to be a group of rotary grille chain by a unique rake tooth, driven by Motor reducer, the rake tooth chain going Rotary motion as reverse flow.

When the rake tooth chain operate to upside of equipment, due to the guiding of Geneva wheel and curve, which produce the relative self-cleaning motion between each group rake tooth, most of the solid drop down by gravity. Another parts clean up the sundries sticking in the rake tooth by sweeper ‘s Reverse movement.

Rake tooth chain similar to grilling by water flow direction, the rake tooth clearance which assembled in rake tooth chain shaft can be chose according to usage condition; Which can guarantee water flow pass by smoothly after the rake tooth separate the suspended solid in the fluid. the whole process can be continuous and intermittent.

Characteristic

The maxi advantage of the equipment is high Automaticity ,high separative effiency, small power consumption,no noise,Good corrosion resistance,can ensure continuous steady operation without unserviced, set overload safeguard device,when the equipment out of order, can give a sounding and light alarm and stop operating automatically ,can avoid equipment working overload. This equipment can

adjust operation interval at will according to user’s request,achieve operation periodic; can automatic control according to the before and after grilling liquid level difference ;with the function of manual control,in order to overhauling convenient.user can chose at will according to different work demand,

As the equipment structure design rational, with stronger self-cleaning ability, won’t appear blocking, few daily maintenance work.

Such equipment specification can divide YMGS300-1500 according to width, the equipment width exceed 1500mm, cab be made into parallel machine, the clearance of a grille can divide into 1mm,3mm,5mm,10mm,20mm,30mm,40mm,50mm etc all kinds of norms, which can be chosen according to water quantity, lift height, the gross of solid-liquid separation and the shape of the separation material and particle size , the material quality of rake tooth can be ABS engineering plastic,nylon,stainless according to user’s request. Main body frame have stainless material and Carbon steel antiseptic.

Technical data

1. How to buy your idea products?

  A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

2. How to pay?

  A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 6 weeks.

4. How to pack the products?

  A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

5. How to keep your equipments from corrosion?

  A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.

6. How do you manufacture your equipment ?

  A:Our  machining technology  includes laser/plasma cutting, automatic welding,CNC cutting and bending.

7. How to install after the equipments arriving destination?

  A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
