Product Details
| Place of Origin | Shandong, China | Brand Name | YIMEI | |
| Model Number | JF-50 |
Product Description

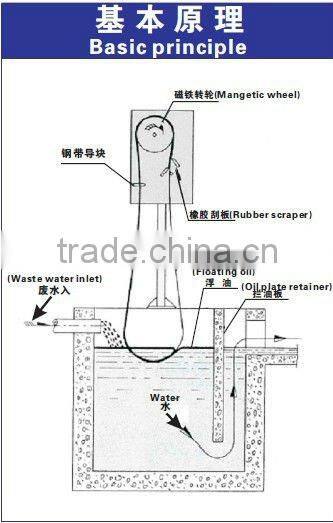

The Belt-oil stripper is the most reliable and economical machine to separate oil from surface of fluid which is low-power consumption and without any materials, It can separate any oil slick such as engine oil, kerosene, lubricant, seed fat which is light than water from mixture of water and oil no matter how thick the oil slick is. The oil which separate by the machine can reuse. This machine is very fit for sewage disposal system of oil field, refinery, steel works, electroplate factory, packinghouse, catering industry, sewage treatment works, garage, parking lot, washing-line of metal parts, covered reservoir, scrap wildcat, and so on.
Characteristics of JF belt style skimmer
For floating-oil:
1. Material of steel belt: Stainless steel.
2. The recovery oil that pare off contains less water, easy to use.
3. Adjustable scraper, obtain the best effect.
4. Be able to used under the strong acid and strong alkali environment, surroundings bearable temperature could go beyond 120Degree Celsius.
5. The length of steel belt is designer according to the depth of customer's pool.
6. Enable to choose the skimmer type(simple type, stainless type, flameproof type) according to the demand.
7. Time control device for 24 hours.
8. Speed-adjustment motor, magnetic pulley steel belt, adjust the running speed according to oil amount in water.
Technical data:
Item  | Specification  | ||
JF-100  | JF-200  | JF-50  | |
Steel belt width  | 100x0.2mm thickness  | 200x0.2mm thickness  | 50x0.2mm thickness  |
oil absorption  | 75 liters/h  | 150 liters/h  | 40 liters/h  |
Power Consumption  | 45W  | 45W  | 28W  |
Steel belt material  | Peculiarity stainless steel  | Peculiarity stainless steel  | Peculiarity stainless steel  |
Speed  | without section adjustment  | without section adjustment  | without section adjustment  |
MAXI Feature:
1.All skimmer models product fully design two sides remove oil, removal oil volume duplicate improves, price more benefit, more cheaper;
2.Design driven parts complete science separated with electric parts, to make whole machine fully damp proof,heat-resisting treatment; under the environment of high temperature, high tide can long-term stable operation, completely is not affected by water temperature and environmental impact, the security is more superior, more outstanding
3.Increase in oil scraper unit special flexible spring, can make the wiper plate according to the steel belt resistance automatically adjust the degree of pinus tabulaeformis, and according to the physical change automatically capture oil adhesion on steel band, make oil scraper cleaner, more smooth, the whole machine performance more perfect.
4.Product process:
Machine body use fully carbon steel material,surface after heating treatment technique design, excellent products, practical, beautiful appearance, and low cost;
Remove oil effect diagram:
