Doha Dammam Kuwait Riyadh Jeddah Z and C Purlins Supplier

Specifications

DANA STEEL PROCESSING INDUSTRY ( A DIVISION OF DANA GROUP) is an ISO 9001:2008 Certified Manufacturer of high quality Galvanized /Cold Roll Formed Z & C Purlins with holes & dimensions as per customer requirements.

CALL NOW - 00971-50-7983153

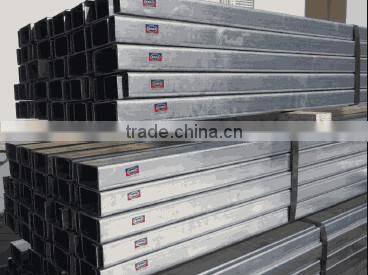

DANA Z & C PURLINS

The section reference code of a Z-Section 202mm deep and 2.5mm thick=202 Z25. The first three digits of section reference indicate the depth of the section in millimeters (ie: 202 equals 202mm depth). The fourth digit is a letter that signifies the profile type(i.e: Z for Z profile & C for C profile). The last two digits indicate the material thickness ( i.e: 25 equals 2.5mm).

• Specification :-
• ASTM A653 Grade 50/80 G90 (New ASTM Standard, Min Yield Strength 340Mpa for Grade 50,and 550 Mpa for Grade 80)
• ASTM A446 Grade 'D' G90 (Old ASTM Standard, Min Yield Strength 340Mpa)
• EN 10147 S350GD Z275 MAC

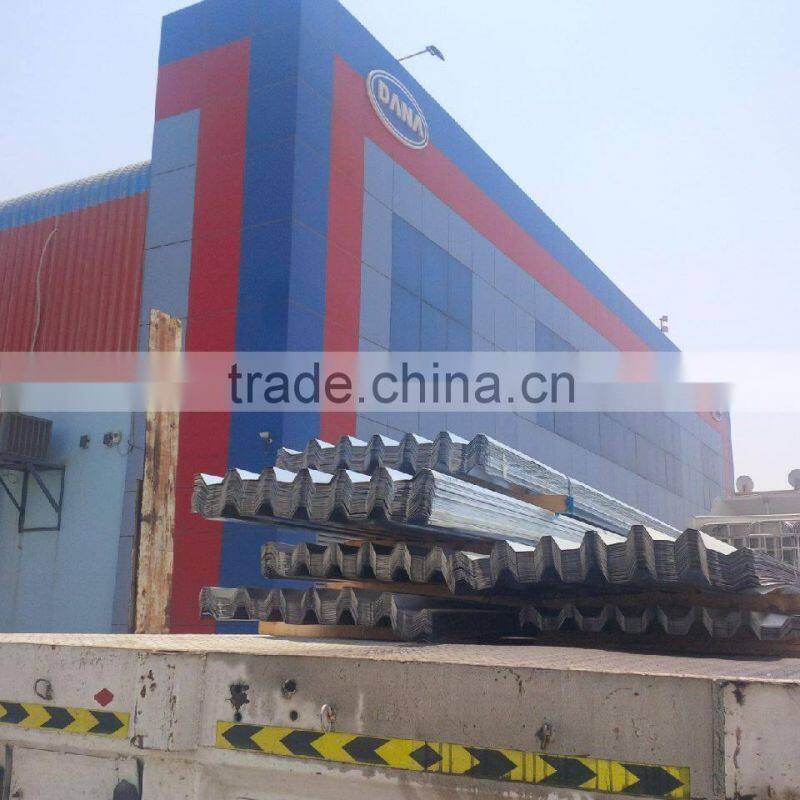

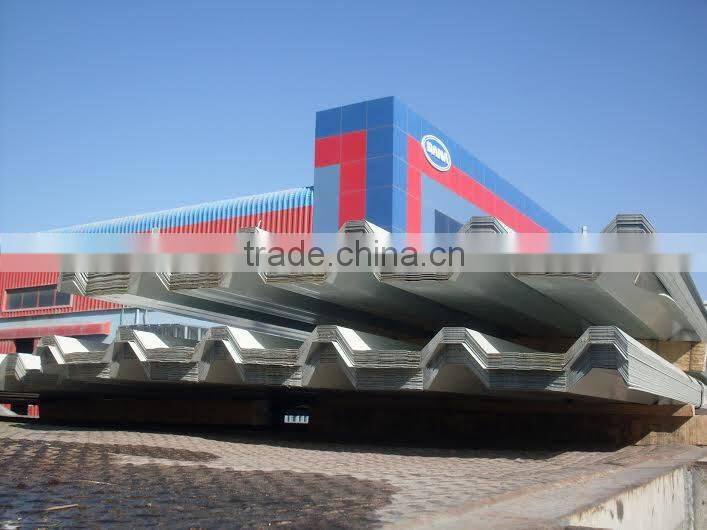

DANA COMPOSITE FLOOR DECKING SYSTEM

The DANA composite floor decking sheets ( DSD 75/305 & DSD 45/150) offers the ultimate in lightweight steel decking for all multi-rise buildings including car parks,hangars. It combines exceptional spanning capabilities with reduced concrete usage to provide a cost-effective and attractive floor solution that’s easy to install. The state-of-the-art profile has been developed using roll-forming techniques pioneered by DANA Steel, drawing on our years of experience in designing advanced composite floor decking systems. Engineered with optional closed ends, DANA DSD 75/305 & DSD 45/150 decking sheet profile provides excellent acoustic performance and fire protection, with no requirement for filler blocks.
