YM Type Automatic Sludge Belt Filter Press for Solid-liquid Separation Equipment

Specifications

YM type automatic sludge belt filter press for solid-liquid separation equipment

A profile

YMYL series belt type filter press is nuclear engineering company absorption, digestion sludge dewatering with the latest technology at home and abroad, through repeated practice. The research of a new type of dewatering equipment, its main technical indicators have reached domestic advanced level. Scope of application is very broad.

Second, the working principle

Efficient flocculation in the sludge conditioning treatment reasonable, using gravity dehydration, mechanical squeeze dewatering principle of removing the moisture in the sludge, the sludge to filter cake state, can be all kinds of industrial sludge after gravity dehydration with high quality of mud cake quality filter band, can rapidly in the process of pressure filtration dehydration, back press roller are arranged and filter of decreasing with contact Angle changes, to ensure the best combination of pressure and shear, which greatly enhance the efficiency of solid content of mud cake and dehydration, the unique design of the electromagnetic adjustable slant and tensioning system to solve the all difficulties in the equipment used.

Three, the structure

YMYL series belt type filter press flocculation area, including gravity dehydration, wedge dehydration zone, pressure dehydration. (the accessory equipment of complete sets of equipment including the required.)

1.Flocculation area:  The equipment there is a vertical agglutination trough, mixer and device a group.

2. The gravity dehydration zone: a gravity concentration area is composed of concentrated filter cloth, the material is PE material. Agglutination of sludge after import concentration enrichment filter cloth.

3. Wedge dehydration: wedge dehydration zone is composed of concentrated filter cloth, the material is PE material. A gravity dehydration after import the wedge continues to condense dehydration dehydration zone.

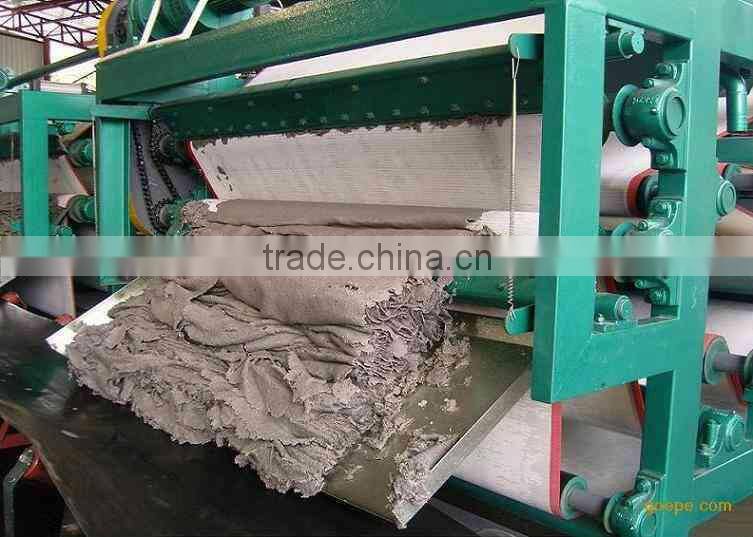

4. Compression dewatering area: compression dewatering area by the main roller. Direct squeezing roller and wheel, etc, the main roller for special l-shaped bar concentrated sludge between two strips, gradually increased by two roller pressure shear dehydration, separation water easily dispatched from groove, effective pressure sludge moisture, side by side out of the mud cake. (in order to make the normal operation of the filter cloth, with the electromagnetic adjustable eccentric device)

5. Cleaning device for filter cloth, filter cloth after stripping of mud cake, the device on both sides of the filter cloth cleaning water spray to clean.

6. Electromagnetic adjusting device, pneumatic. When the filter cloth anomaly migration, through the electromagnetic adjusting device, the dewatering equipment immediately stop their operations, to ensure the safety of machines. Limit switch can measured the limit deviation of belt, when the filter belt deviation limit dewatering machine automatic induction immediately stop operation.

Four, plane schematic diagram

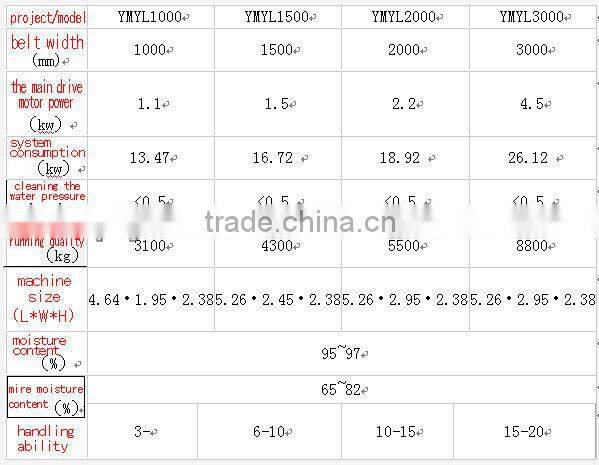

Five, the technical parameters (reference only)

Six, to adapt to the range

Widely used in mining, ceramic, chemical, metallurgical, starch, fruit juice, pharmacy, fruit juice, electric power, coal, slag, wine by, papermaking, bean dregs, department continuous dehydration of wood department slag etc.
