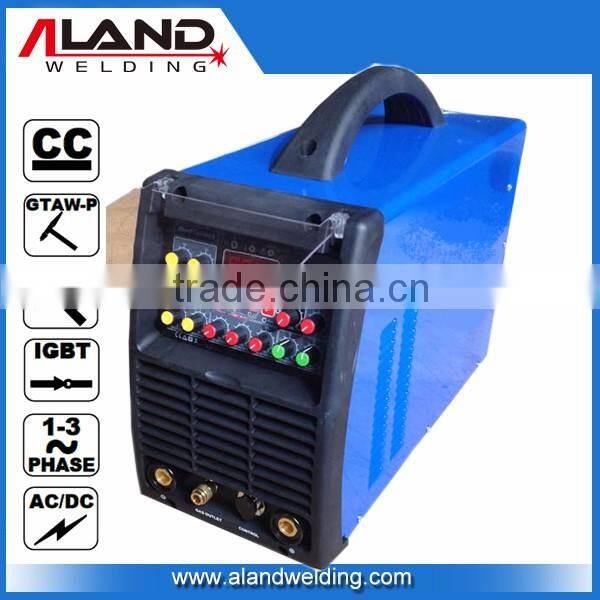

Portable AC DC 3IN1 TIG250Ex Tig Inverter Welding Machine
- Beijing Tianjin Shanghai
- Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Beijing, China | |
| Brand Name | OEM | Model Number | TIG250Ex | |
| Arc Current | 10-200A | Pulse Frequency | 50-60Hz | |
| Pilot Arc Current | 10A | Rated Duty Cycle | 60% | |
| Motor Type | DC Motor | Dimensions | 470mm*235mm*435mm | |
| Usage | STICK,AC TIG, DC TIG(PULSE TIG),CUT | Voltage | 110/220V | |
| Power(W) | 25KVA | Certification | ROHS/CE | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
Portable AC DC 3IN1 TIG250Ex Tig Inverter Welding Machine
3IN1 TIG250Ex Tig Welding Machine
| MODEL | SuperTig250EX | ||
| INPUT Voltage | 1~AC110V 50/60Hz | 1~AC220V 50/60Hz | |
| AC TIG | No-load Voltage | 80V | |
| Base current Adjusting Range | 5~150A | 5~250A | |
| AC balance | 10%~90 % | ||
| AC Square Wave Frequency | 20~250Hz | ||
| Rated Duty Cycle | 60% | ||
| Pre Flow | 0-10s | ||
| Start Amps | 5-150A | 5-250A | |
| DC TIG | AMP Adjusting Range | 5~150A | 5~250A |
| Rated Duty Cycle | 60% | ||
| Current Up-slope Time | 0~10S | ||
| Current Down-slope Time | 0~25S | ||
| pulse(Base/AMP) Current Ratio | 5%-95% | ||
| Pluse Time On | 0.1~0.9 | ||
| Pluse Frequency | 0.5~25(25~250)Hz | ||
| post Flow Time | 0~25s | ||
| Arc starting Mode | high frequency arc striking | ||
| Pre Flow | 0-10s | ||
| Start Amps | 5-150A | 5-250A | |
| End Amps | 5-150A | 5-250A | |
| DC STICK | No-load Voltage | 80V | |
| Current Range | 20-120A | 20-200A | |
| Rated Output Current | 120A | 200A | |
| Rated Duty Cycle | 35% | ||
| Efficiency | ≥83% | ||
| Mass | 28kg | ||
| Protection Class of enclosure | IP21S | ||
| Outline Dimensions | 470mmx235mmx435mm | ||
Portable AC DC 3IN1 TIG250Ex Tig Inverter Welding Machine

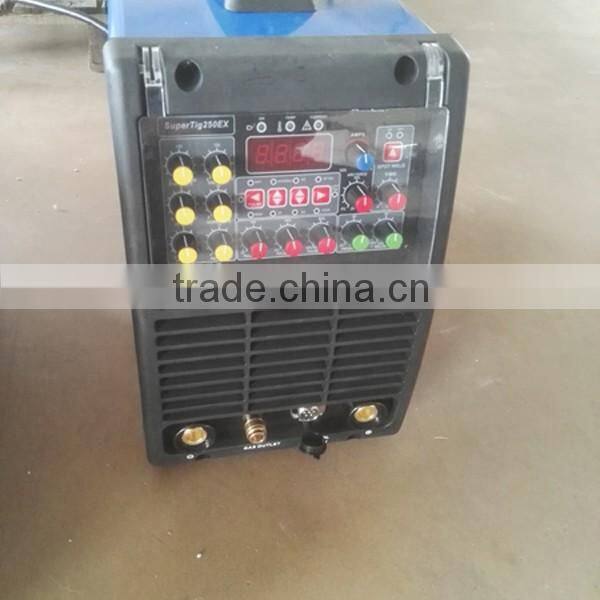

SuperTig250EX Welder is triple functional machine used as STICK,AC TIG, DC TIG(PULSE
TIG),CUT Welder. All ferrous metals copper, Aluminium ,titanium and stainless steel material
can be omnibearing welding in all position. The welding current is stable and stepless adjustable.The welding seam is nice. Few spatter and low noise occurs during welding. The welder is small volume, light in weight and easy to move. It is particularly suitable for enterprise of pressure vessel,building, shipping and petrochemical works.
Portable AC DC 3IN1 TIG250Ex Tig Inverter Welding Machine

Portable AC DC 3IN1 TIG250Ex Tig Inverter Welding Machine Accessories :
Welding machine 1
Welding Holder 1
Ground clamp 1
TIG welding torch 1
gas inlet pipe 1
Adjustable foot control 1
Operation instructions 1
Certificate of quality 1
