Home > Products > Multifunction Welding Machine > BT-1800 DC Inverter HF-TIG MMA 2IN1 Welder

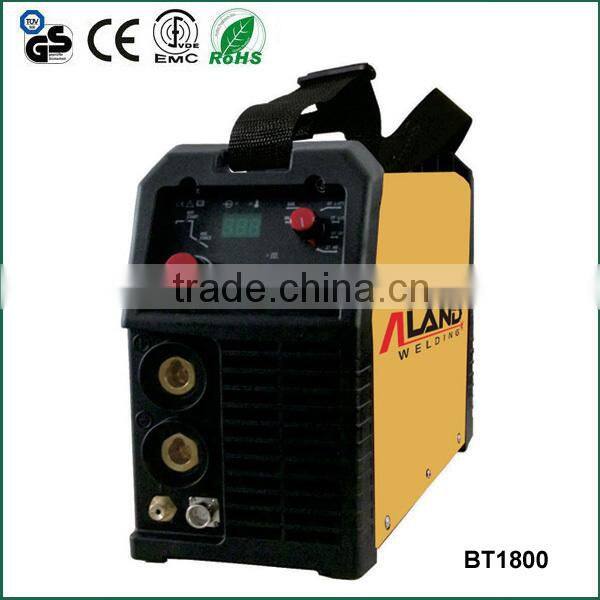

BT-1800 DC Inverter HF-TIG MMA 2IN1 Welder
- Shanghai Tianjin
- D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Beijing, China | |
| Brand Name | ALAND | Model Number | BT-1800 | |
| Arc Current | 5-180A | Pulse Frequency | 50/60Hz | |
| Pilot Arc Current | 20.9A | Rated Duty Cycle | 60% | |
| Motor Type | DC Motor | Dimensions | 400*140*230mm | |
| Usage | Welding stainless steel, alloy steel, copper, Titanium, Plates | Voltage | 220/230/240V | |
| Power(W) | 3.7/5.8KW | Certification | GS/CE/EMC/ROHS |
Product Description
Specifications
DC Inverter TIG MMA 2IN1 Welder- IGBT & PWM
- Digital Display
- Selective Modules: EMC,PULSE
- Certificate:GS/CE/EMC/ROHS
BT-1800 DC Inverter HF-TIG MMA 2IN1 Welder
Features:
- Adopt IGBT & advanced PWM inverter technology.
- Using high performance MCU, speedy, excellent and real-time response.
- Digital display, easy operation.
- Each welding parameter can be adjusted in real-time.
- Intelligent HF, brush strokes arc ignition technology, high success rate
- welding pulse parameters accurate.
- Intelligent protection function based on the fuzzy technology.
- Selective module: EMC, PULSE
Application:
- Nuclear power installation, pipe installation, petrochemical, shipbuilding, automobile, boiler, pressure vessel, aviation, etc.
- Apply to all positions welding of stainless steel, carbon steel, alloy steel, copper, titanium and other plates.
Specifications:
| Model | BT-1800 |
| Rated Input Voltage(V) | 1phase,230±15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 3.7(TIG) 5.8(MMA) |
| No-load Voltage(V) | 63 |
| Rated Output Voltage(V) | 17.2(TIG) 27.2(MMA) |
| Output Current Range (A) | 5-180 |
| Duty Cycle(%) | 40C°180A @ 30% 40C°100A @ 100% |
| Efficiency(%) | 80 |
| Insulation Class | F |
| Protection Class | Ip23S |
| Weight(Kg) | 7 |
| Dimension(mm) | 400X140X230 |
Optional Accessories:
TIG Torch, Electrode Holder, Earth Clamp, Welding Mask, Steel Brush
Beijing Aland Welding Co., Ltd. is a professional welding company who is specializing in Researching, Manufacturing and Exporting welding products.
Our welding machine line include:
- Inverter Digital MCU Welder
- IGBT Inverter DC MMA Welder
- MOS Inverter DC MMA Welder
- Inverter DC TIG Welder
- Inverter DC TIG/MMA Welder
- Inverter DC TIG/MMA/CUT Welder
- Inverter DC MIG/MAG Welder
- Plasma Cutter
- Wire feeder
Any inquiry from you will be highly appreciated and replied immediately.
