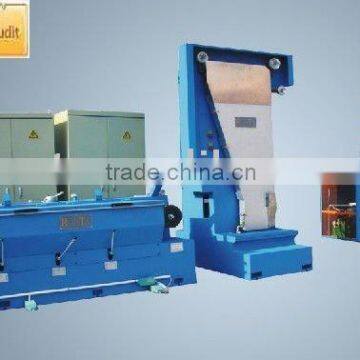

17 Dies Intermediate Copper Wire Drawing Machine with annealer

Specifications

 1.The feature of the machine:

- Ahorizontal and tandem construction driven by double motors to achieve fast die change.

- A helical gear with high accuracy to ensure high efficiency and low noise.

- An immersion lubricating and cooling system to ensure better quality .

2.Technical specification:

a. Drawing machine:

Inlet wire diameter:2.6-3.5mm

Outlet wire diameter:0.4-1.2mm

 Max. Line speed:35 m/s

Max. Drawing passes:17

Diameter of finish capstan:250 mm

Speed ratio between capstans:1.265

Max. Size of dies : 25x10 mm

Speed ratio among:1.25 , 1st~16th dies;  1.186, 17th die

Power of main motor:55kw; AC

Total install power:300KVA

b. Online annealer:

Rated DC Annealing Current: 2000A

Maximum DC Annealing Voltage:60V

Annealing Capacity:170KVA

Protection:by steam

Weight:about 1800 kgs

Drive:by the flat belt from the finished capstan

c. Spooler:

Max rotate Speed:1800 r/min

Max. movable distance of the shaft:150 mm

Max. travel distance of bobbin lifter:150mm

Spooling motor: 11kW;1500r/min

Traverse motor :servomotor 1KW  3000r/min

Bobbins:DIN 630

Brake :hydraulic type, emergency stop within 5 seconds;

Bobbin loading and unloading : by hydraulic liftor;

Wire traverse speed :  automatically detect the changes of the speed
