threading and pointing machine
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
You May Like
-
Intermediate wire drawing machine
-
Threading and pointing machine
-
Intermediate copper drawing machine copper wire cable making equipment wire cable machine
-
Intermediate Wire Drawing Machine with Annealing copper wire drawing machine
-
( Wire Drawing Machine with Annealing ) cable tray making machine
-
( Used Wire Drawing Machine / wire drawing machine price )copper wire making machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HONTA | |
| Model Number | 170 | Usage | Stripping |
Product Description

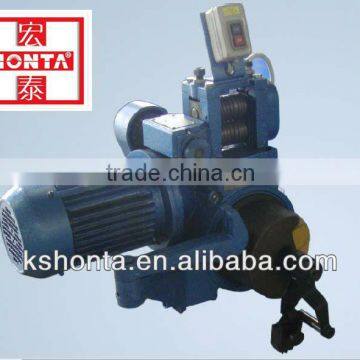

This machine is to induce the section area of the wire for threading to the wire machine conveniently. It always worked for intermediate wire drawing machine.
Specifications:
| 1 | Diameter of Roller | mm | Φ50 |
| 2 | Rolling range | mm | Φ0.67-Φ3.55 |
3 | Diameter of Drum wheel | mm | Φ170 |
| 4 | Electric motor power | kw | 1.5 |
| 5 | Electric motor Rotational speed | R/min | 1410 |
| 6 | Linear Velocity of Roller | M/min | 9.6 |
| 7 | Linear Velocity of Drum wheel | M/min | 22 |
| 8 | Dimension | mm | 600x700x500mm |
| 9 | Weight | kg | 112Kg |
| 10 | Power Source | V/hz | 380V/50HZ |
