3D HDMI Extender 60m by single UTP Cat6 CAT5e x 1 Cable Extend HDTV up To 60Meters For 1080P Transmitter and Receiver

3D HDMI Extender 60m by single UTP Cat6 CAT5e x 1 Cable Extend HDTV up To 60Meters For 1080P Transmitter and Receiver

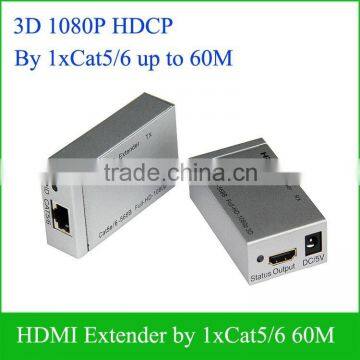

P/N: TP-HED60

This HDMI Extender by CAT-5e/6 uses two pieces of UTP cable with cross stand inside to extend the HDTV display up to 60 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also CAT-5e/6 has more flexibility and convenience in cable construction.

It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.

This product offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Benefits:

The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves. However CAT-5e/6 cables are available everywhere and be processed easily by the user or installer.

Because the header of the long HDMI cable is big, using it must in hidden method. What's more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However, CAT-5e/6 cable has no such problems.

Using this Extender together with UTP cable with cross stand inside, the transmission distance can be up to 60 meters for 1080p. For the general HDMI cables, they must be customized when the length is over 10 meters.

Features:

This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:

1. One pair as a full functional module, no need of setting.

2. CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.

3. Follow the standard of IEEE-568B.

4. Transmission distance can be up to 60 meters for 1080p using UTP cable with cross stand inside.

5.  Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.

6. Compact size.

7. Supports HDMI1.2a.

8. Supports highest video resolution 1080p.

9. Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.

10. Supports 8bit per channel (24bit all channel) deep color.

11. Supports HDCP Support uncompressed audio such as LPCM

12. Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby  True HD)

Specifications:
