Home > Products > Hydraulic Cylinders > Single Double Acting Hydraulic Cylinder
Single Double Acting Hydraulic Cylinder
US$ 90 - 3,080
/ Piece
1 Piece(Min. Order)
- Tianjin
You May Like
-
Long Stroke Double Acting Telescopic Cushion Hydraulic Cylinder
-
3000mm Long Stroke Hydraulic Cylinder for Garbage Packing Machine
-
Double Acting High Tonnage Hydraulic Cylinder
-
Long Stroke Double Acting Telescopic Hydraulic Cylinder
-
Tailer Double Acting Hydraulic Cylinder
-
Refuse Collection Vehicle Hydraulic Cylinder
Product Details
| Type | Fittings | Model Number | YHC | |
| Brand Name | YH | Place of Origin | Hebei, China |
Product Description
Specifications
1.single double acting hydraulic cylinder2.Max Stroke:15000mm
3.Seal kits:Parker/Merkel Seal or as

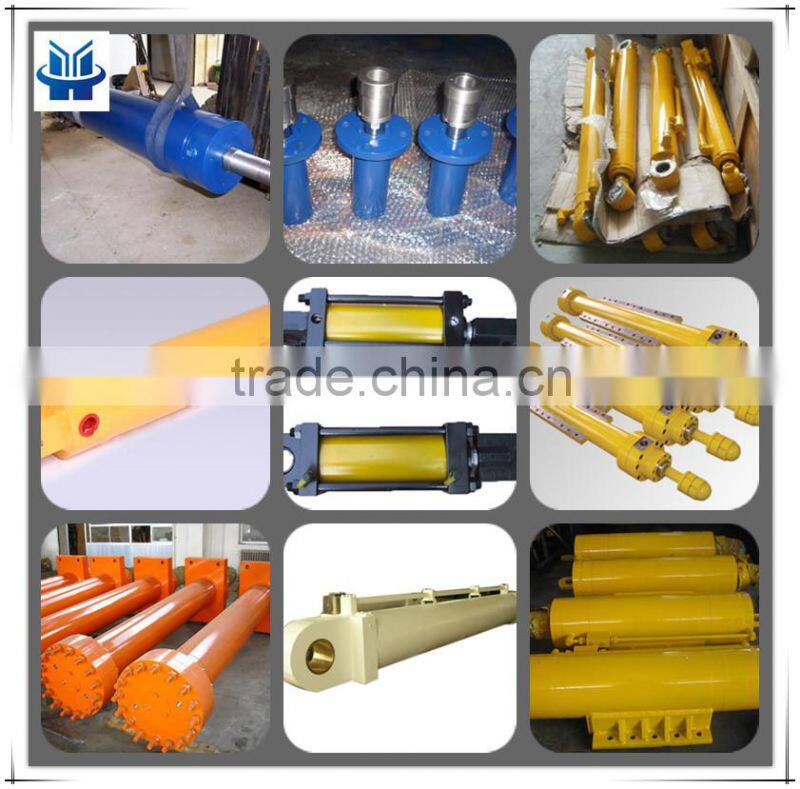

single double acting hydraulic cylinder
Company Information

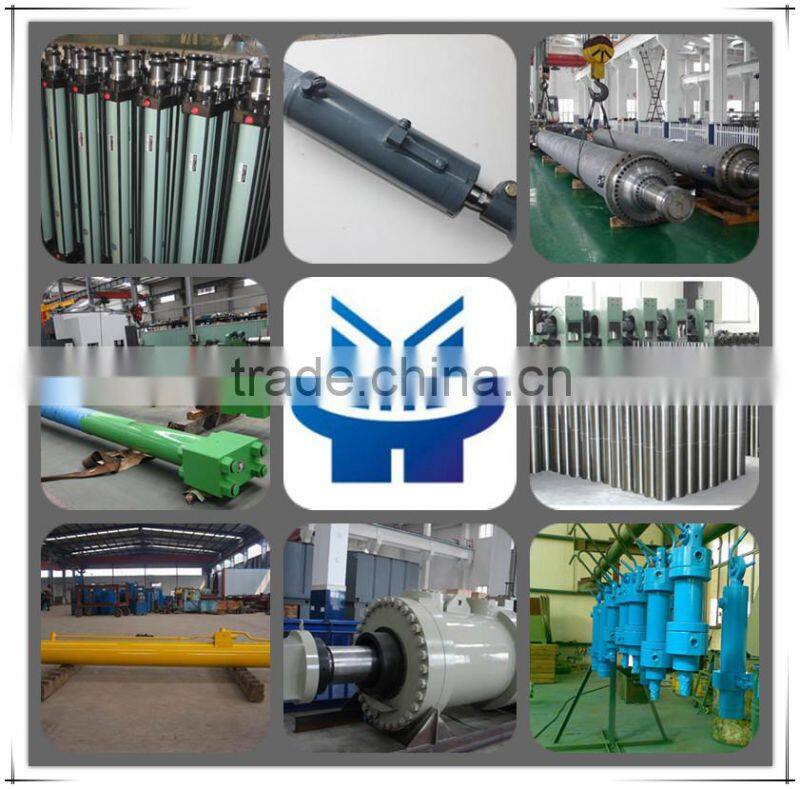

single double acting hydraulic cylinder
- ISO9001:2008 certified
- Complete CNC Machining capabilities
- Bore size from 1 1/5" to 20" (30mm to 500mm)
- Stroke lengths to 200'' (5000mm) or longer
- Working pressures to 32Mpa
- Up to 4 stage of multi stage hydraulic cylinder experience
Our Services

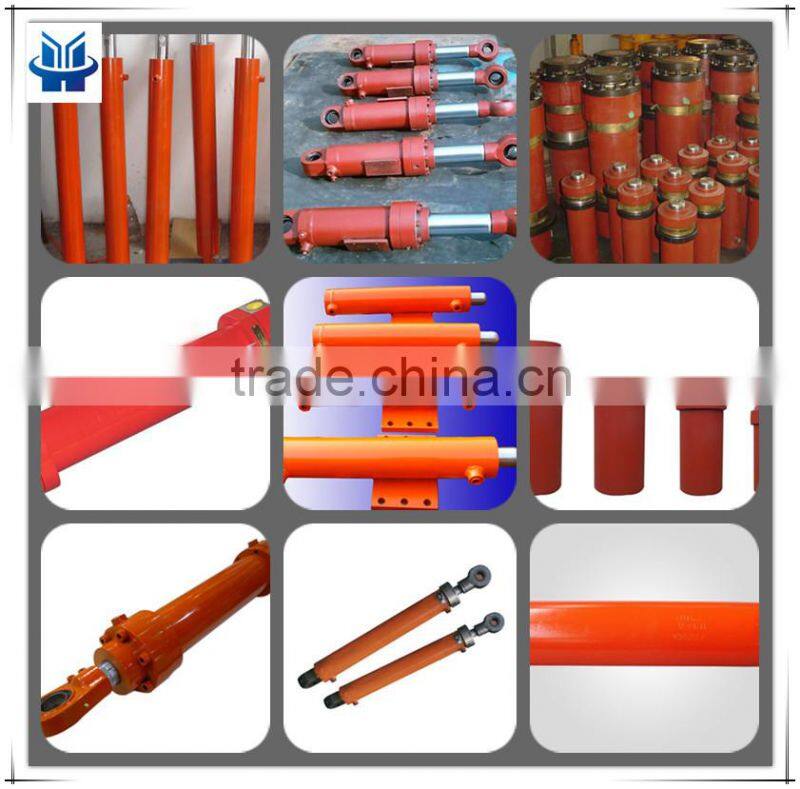

single double acting hydraulic cylinder
We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
- diameter of bore & rod
- stroke
- mounting type
- closed/open centers
- working pressure
- ports
- seals
- other requirement
Product Description
single double acting hydraulic cylinder
| Model Number | Cylinder Capacity ton (kN) | Stroke (mm) | Collapsed Height A (mm) | Extended Height B (mm) | Outside Dia. D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Weight (kg) |
| YH-50** | 5 (45) | 16 | 41 | 57 | 58*** | 28,7 | 25,4 | 6,5 | 10 | 1,0 |
| YH -51 | 5 (45) | 25 | 110 | 135 | 38 | 28,7 | 25,4 | 6,5 | 16 | 1,0 |
| YH -53 | 5 (45) | 76 | 165 | 241 | 38 | 28,7 | 25,4 | 6,5 | 50 | 1,5 |
| yh-55* | 5 (45) | 127 | 215 | 342 | 38 | 28,7 | 25,4 | 6,5 | 83 | 1,9 |
| YH-57 | 5 (45) | 177 | 273 | 450 | 38 | 28,7 | 25,4 | 6,5 | 115 | 2,4 |
| YH-59 | 5 (45) | 232 | 323 | 555 | 38 | 28,7 | 25,4 | 6,5 | 151 | 2,8 |
| YH-101 | 10 (101) | 26 | 89 | 115 | 57 | 42,9 | 38,1 | 14,5 | 38 | 1,8 |
| YH-102* | 10 (101) | 54 | 121 | 175 | 57 | 42,9 | 38,1 | 14,5 | 78 | 2,3 |
| YH-104 | 10 (101) | 105 | 171 | 276 | 57 | 42,9 | 38,1 | 14,5 | 152 | 3,3 |
| YH-106* | 10 (101) | 156 | 247 | 403 | 57 | 42,9 | 38,1 | 14,5 | 226 | 4,4 |
| YH-108 | 10 (101) | 203 | 298 | 501 | 57 | 42,9 | 38,1 | 14,5 | 294 | 5,4 |
| YH-1010* | 10 (101) | 257 | 349 | 606 | 57 | 42,9 | 38,1 | 14,5 | 373 | 6,4 |
| YH-1012 | 10 (101) | 304 | 400 | 704 | 57 | 42,9 | 38,1 | 14,5 | 441 | 6,8 |
| YH-1014 | 10 (101) | 356 | 450 | 806 | 57 | 42,9 | 38,1 | 14,5 | 516 | 8,2 |
| YH-151 | 15 (142) | 25 | 124 | 149 | 69 | 50,8 | 41,4 | 20,3 | 51 | 3,3 |
| YH-152 | 15 (142) | 51 | 149 | 200 | 69 | 50,8 | 41,4 | 20,3 | 104 | 4,1 |
| YH-154* | 15 (142) | 101 | 200 | 301 | 69 | 50,8 | 41,4 | 20,3 | 205 | 5,0 |
| YH-156* | 15 (142) | 152 | 271 | 423 | 69 | 50,8 | 41,4 | 20,3 | 308 | 6,8 |
| YH-158 | 15 (142) | 203 | 322 | 525 | 69 | 50,8 | 41,4 | 20,3 | 411 | 8,2 |
| YH-1510 | 15 (142) | 254 | 373 | 627 | 69 | 50,8 | 41,4 | 20,3 | 516 | 9,5 |
| YH-1512 | 15 (142) | 305 | 423 | 728 | 69 | 50,8 | 41,4 | 20,3 | 619 | 10,9 |
| YH-1514 | 15 (142) | 356 | 474 | 830 | 69 | 50,8 | 41,4 | 20,3 | 723 | 11,8 |
| YH-251 | 25 (232) | 26 | 139 | 165 | 85 | 65,0 | 57,2 | 33,2 | 86 | 5,9 |
| YH-252* | 25 (232) | 50 | 165 | 215 | 85 | 65,0 | 57,2 | 33,2 | 166 | 6,4 |
| YH-254* | 25 (232) | 102 | 215 | 317 | 85 | 65,0 | 57,2 | 33,2 | 339 | 8,2 |
| YH-256* | 25 (232) | 158 | 273 | 431 | 85 | 65,0 | 57,2 | 33,2 | 525 | 10,0 |
| YH-258 | 25 (232) | 210 | 323 | 533 | 85 | 65,0 | 57,2 | 33,2 | 697 | 12,2 |
| YH-2510 | 25 (232) | 261 | 374 | 635 | 85 | 65,0 | 57,2 | 33,2 | 867 | 14,1 |
| HY-2512 | 25 (232) | 311 | 425 | 736 | 85 | 65,0 | 57,2 | 33,2 | 1033 | 16,3 |
| YH-2514* | 25 (232) | 362 | 476 | 838 | 85 | 65,0 | 57,2 | 33,2 | 1202 | 17,7 |
| YH-308 | 30(295) | 209 | 387 | 596 | 101 | 73,2 | 57,2 | 42,1 | 880 | 18,1 |
| YH-502 | 50 (498) | 51 | 176 | 227 | 127 | 95,2 | 79,5 | 71,2 | 362 | 15,0 |
| YH-504 | 50 (498) | 101 | 227 | 328 | 127 | 95,2 | 79,5 | 71,2 | 719 | 19,1 |
| YH-506* | 50 (498) | 159 | 282 | 441 | 127 | 95,2 | 79,5 | 71,2 | 1131 | 23,1 |
| YH-5013 | 50 (498) | 337 | 460 | 797 | 127 | 95,2 | 79,5 | 71,2 | 2399 | 37,6 |
| YH-756 | 75 (718) | 156 | 285 | 441 | 146 | 114,3 | 95,2 | 102,6 | 1601 | 29,5 |
| YH-7513 | 75 (718) | 333 | 492 | 825 | 146 | 114,3 | 95,2 | 102,6 | 3417 | 59,0 |
| YH-1006 | 95 (933) | 168 | 357 | 525 | 177 | 130,3 | 104,9 | 133,3 | 2239 | 59,0 |
| YH-10010 | 95 (933) | 260 | 449 | 709 | 177 | 130,3 | 104,9 | 133,3 | 3466 | 72,6 |
Contact Us
- Xingtai Ya Han Machinery Factory
- Contact nameJoe Zhao Chat Now
- Phone0086-319-7592008
- AddressNo. 163, Dong Zhenzhuang Village, Tiankou Town, Ren County, Xingtai, Hebei
