Home > Products > Hydraulic Cylinders > Hydraulic Telescopic Cylinder for Lifts
Hydraulic Telescopic Cylinder for Lifts
US$ 90 - 3,080
/ Piece
1 Piece(Min. Order)
- Tianjin
You May Like
Product Details
| Type | Fittings | Model Number | YHC | |
| Brand Name | YH | Place of Origin | Hebei, China |
Product Description
Specifications
1.hydraulic telescopic cylinder for lifts2.Max Stroke:15000mm
3.Seal kits:Parker/Merkel Seal or as you required

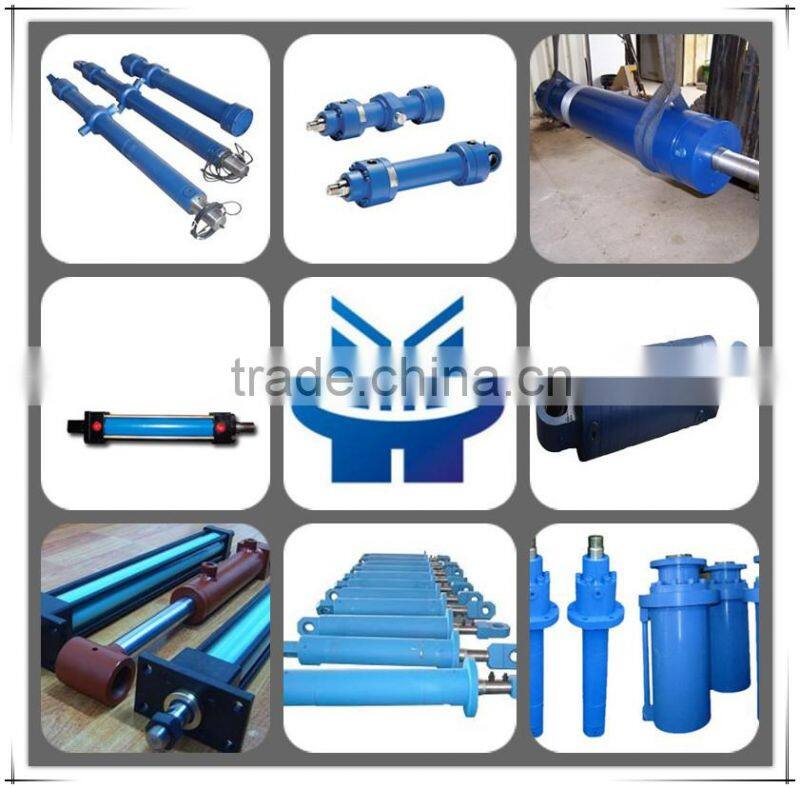

hydraulic telescopic cylinder for lifts
Company Information
- ISO9001:2008 certified
- Complete CNC Machining capabilities
- Bore size from 1 1/5" to 20" (30mm to 500mm)
- Stroke lengths to 200'' (5000mm) or longer
- Working pressures to 32Mpa
- Up to 4 stage of multi stage hydraulic cylinder experience
Our Services
We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
- diameter of bore & rod
- stroke
- mounting type
- closed/open centers
- working pressure
- ports
- seals
- other requirement
Product Description
| Model Number | Cylinder Capacity ton (kN) | Stroke (mm) | Collapsed Height A (mm) | Extended Height B (mm) | Outside Dia. D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Weight (kg) |
| YH-50** | 5 (45) | 16 | 41 | 57 | 58*** | 28,7 | 25,4 | 6,5 | 10 | 1,0 |
| YH -51 | 5 (45) | 25 | 110 | 135 | 38 | 28,7 | 25,4 | 6,5 | 16 | 1,0 |
| YH -53 | 5 (45) | 76 | 165 | 241 | 38 | 28,7 | 25,4 | 6,5 | 50 | 1,5 |
| yh-55* | 5 (45) | 127 | 215 | 342 | 38 | 28,7 | 25,4 | 6,5 | 83 | 1,9 |
| YH-57 | 5 (45) | 177 | 273 | 450 | 38 | 28,7 | 25,4 | 6,5 | 115 | 2,4 |
| YH-59 | 5 (45) | 232 | 323 | 555 | 38 | 28,7 | 25,4 | 6,5 | 151 | 2,8 |
| YH-101 | 10 (101) | 26 | 89 | 115 | 57 | 42,9 | 38,1 | 14,5 | 38 | 1,8 |
| YH-102* | 10 (101) | 54 | 121 | 175 | 57 | 42,9 | 38,1 | 14,5 | 78 | 2,3 |
| YH-104 | 10 (101) | 105 | 171 | 276 | 57 | 42,9 | 38,1 | 14,5 | 152 | 3,3 |
| YH-106* | 10 (101) | 156 | 247 | 403 | 57 | 42,9 | 38,1 | 14,5 | 226 | 4,4 |
| YH-108 | 10 (101) | 203 | 298 | 501 | 57 | 42,9 | 38,1 | 14,5 | 294 | 5,4 |
| YH-1010* | 10 (101) | 257 | 349 | 606 | 57 | 42,9 | 38,1 | 14,5 | 373 | 6,4 |
| YH-1012 | 10 (101) | 304 | 400 | 704 | 57 | 42,9 | 38,1 | 14,5 | 441 | 6,8 |
| YH-1014 | 10 (101) | 356 | 450 | 806 | 57 | 42,9 | 38,1 | 14,5 | 516 | 8,2 |
| YH-151 | 15 (142) | 25 | 124 | 149 | 69 | 50,8 | 41,4 | 20,3 | 51 | 3,3 |
| YH-152 | 15 (142) | 51 | 149 | 200 | 69 | 50,8 | 41,4 | 20,3 | 104 | 4,1 |
| YH-154* | 15 (142) | 101 | 200 | 301 | 69 | 50,8 | 41,4 | 20,3 | 205 | 5,0 |
| YH-156* | 15 (142) | 152 | 271 | 423 | 69 | 50,8 | 41,4 | 20,3 | 308 | 6,8 |
| YH-158 | 15 (142) | 203 | 322 | 525 | 69 | 50,8 | 41,4 | 20,3 | 411 | 8,2 |
| YH-1510 | 15 (142) | 254 | 373 | 627 | 69 | 50,8 | 41,4 | 20,3 | 516 | 9,5 |
| YH-1512 | 15 (142) | 305 | 423 | 728 | 69 | 50,8 | 41,4 | 20,3 | 619 | 10,9 |
| YH-1514 | 15 (142) | 356 | 474 | 830 | 69 | 50,8 | 41,4 | 20,3 | 723 | 11,8 |
| YH-251 | 25 (232) | 26 | 139 | 165 | 85 | 65,0 | 57,2 | 33,2 | 86 | 5,9 |
| YH-252* | 25 (232) | 50 | 165 | 215 | 85 | 65,0 | 57,2 | 33,2 | 166 | 6,4 |
| YH-254* | 25 (232) | 102 | 215 | 317 | 85 | 65,0 | 57,2 | 33,2 | 339 | 8,2 |
| YH-256* | 25 (232) | 158 | 273 | 431 | 85 | 65,0 | 57,2 | 33,2 | 525 | 10,0 |
| YH-258 | 25 (232) | 210 | 323 | 533 | 85 | 65,0 | 57,2 | 33,2 | 697 | 12,2 |
| YH-2510 | 25 (232) | 261 | 374 | 635 | 85 | 65,0 | 57,2 | 33,2 | 867 | 14,1 |
| HY-2512 | 25 (232) | 311 | 425 | 736 | 85 | 65,0 | 57,2 | 33,2 | 1033 | 16,3 |
| YH-2514* | 25 (232) | 362 | 476 | 838 | 85 | 65,0 | 57,2 | 33,2 | 1202 | 17,7 |
| YH-308 | 30(295) | 209 | 387 | 596 | 101 | 73,2 | 57,2 | 42,1 | 880 | 18,1 |
| YH-502 | 50 (498) | 51 | 176 | 227 | 127 | 95,2 | 79,5 | 71,2 | 362 | 15,0 |
| YH-504 | 50 (498) | 101 | 227 | 328 | 127 | 95,2 | 79,5 | 71,2 | 719 | 19,1 |
| YH-506* | 50 (498) | 159 | 282 | 441 | 127 | 95,2 | 79,5 | 71,2 | 1131 | 23,1 |
| YH-5013 | 50 (498) | 337 | 460 | 797 | 127 | 95,2 | 79,5 | 71,2 | 2399 | 37,6 |
| YH-756 | 75 (718) | 156 | 285 | 441 | 146 | 114,3 | 95,2 | 102,6 | 1601 | 29,5 |
| YH-7513 | 75 (718) | 333 | 492 | 825 | 146 | 114,3 | 95,2 | 102,6 | 3417 | 59,0 |
| YH-1006 | 95 (933) | 168 | 357 | 525 | 177 | 130,3 | 104,9 | 133,3 | 2239 | 59,0 |
| YH-10010 | 95 (933) | 260 | 449 | 709 | 177 | 130,3 | 104,9 | 133,3 | 3466 | 72,6 |
