Home > Products > Hydraulic Cylinders > professional forklift accessories hydraulic cylinder

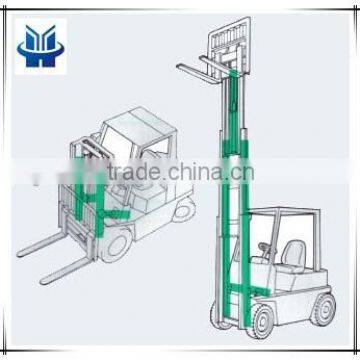

professional forklift accessories hydraulic cylinder
USD $90 - $3,080
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- Tianjin
You May Like
-
double acting oil long stroke hydraulic cylinder
-
double acting hydraulic cylinder with welded oil tube
-
hydraulic cylinder for refuse collecting trucks
-
single double acting hydraulic cylinder
-
long stroke double acting telescopic cushion hydraulic cylinder
-
3000mm long stroke hydraulic cylinder for garbage packing machine
Product Details
| Type | Fittings | Model Number | YHC | |
| Brand Name | YH | Place of Origin | Hebei, China |
Product Description
Specifications
fessional forklift accessories hydraulic cylinder2.Max Stroke:15000mm
3.Seal kits:Parker/Merkel Seal or as
professional forklift accessories hydraulic cylinder
Company Information
professional forklift accessories hydraulic cylinder
- ISO9001:2008 certified
- Complete CNC Machining capabilities
- Bore size from 1 1/5" to 20" (30mm to 500mm)
- Stroke lengths to 200'' (5000mm) or longer
- Working pressures to 32Mpa
- Up to 4 stage of multi stage hydraulic cylinder experience
Our Services
professional forklift accessories hydraulic cylinder
We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
- diameter of bore & rod
- stroke
- mounting type
- closed/open centers
- working pressure
- ports
- seals
- other requirement
Product Description
professional forklift accessories hydraulic cylinder
| Model Number | Cylinder Capacity ton (kN) | Stroke (mm) | Collapsed Height A (mm) | Extended Height B (mm) | Outside Dia. D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Weight (kg) |
| YH-50** | 5 (45) | 16 | 41 | 57 | 58*** | 28,7 | 25,4 | 6,5 | 10 | 1,0 |
| YH -51 | 5 (45) | 25 | 110 | 135 | 38 | 28,7 | 25,4 | 6,5 | 16 | 1,0 |
| YH -53 | 5 (45) | 76 | 165 | 241 | 38 | 28,7 | 25,4 | 6,5 | 50 | 1,5 |
| yh-55* | 5 (45) | 127 | 215 | 342 | 38 | 28,7 | 25,4 | 6,5 | 83 | 1,9 |
| YH-57 | 5 (45) | 177 | 273 | 450 | 38 | 28,7 | 25,4 | 6,5 | 115 | 2,4 |
| YH-59 | 5 (45) | 232 | 323 | 555 | 38 | 28,7 | 25,4 | 6,5 | 151 | 2,8 |
| YH-101 | 10 (101) | 26 | 89 | 115 | 57 | 42,9 | 38,1 | 14,5 | 38 | 1,8 |
| YH-102* | 10 (101) | 54 | 121 | 175 | 57 | 42,9 | 38,1 | 14,5 | 78 | 2,3 |
| YH-104 | 10 (101) | 105 | 171 | 276 | 57 | 42,9 | 38,1 | 14,5 | 152 | 3,3 |
| YH-106* | 10 (101) | 156 | 247 | 403 | 57 | 42,9 | 38,1 | 14,5 | 226 | 4,4 |
| YH-108 | 10 (101) | 203 | 298 | 501 | 57 | 42,9 | 38,1 | 14,5 | 294 | 5,4 |
| YH-1010* | 10 (101) | 257 | 349 | 606 | 57 | 42,9 | 38,1 | 14,5 | 373 | 6,4 |
| YH-1012 | 10 (101) | 304 | 400 | 704 | 57 | 42,9 | 38,1 | 14,5 | 441 | 6,8 |
| YH-1014 | 10 (101) | 356 | 450 | 806 | 57 | 42,9 | 38,1 | 14,5 | 516 | 8,2 |
| YH-151 | 15 (142) | 25 | 124 | 149 | 69 | 50,8 | 41,4 | 20,3 | 51 | 3,3 |
| YH-152 | 15 (142) | 51 | 149 | 200 | 69 | 50,8 | 41,4 | 20,3 | 104 | 4,1 |
| YH-154* | 15 (142) | 101 | 200 | 301 | 69 | 50,8 | 41,4 | 20,3 | 205 | 5,0 |
| YH-156* | 15 (142) | 152 | 271 | 423 | 69 | 50,8 | 41,4 | 20,3 | 308 | 6,8 |
| YH-158 | 15 (142) | 203 | 322 | 525 | 69 | 50,8 | 41,4 | 20,3 | 411 | 8,2 |
| YH-1510 | 15 (142) | 254 | 373 | 627 | 69 | 50,8 | 41,4 | 20,3 | 516 | 9,5 |
| YH-1512 | 15 (142) | 305 | 423 | 728 | 69 | 50,8 | 41,4 | 20,3 | 619 | 10,9 |
| YH-1514 | 15 (142) | 356 | 474 | 830 | 69 | 50,8 | 41,4 | 20,3 | 723 | 11,8 |
| YH-251 | 25 (232) | 26 | 139 | 165 | 85 | 65,0 | 57,2 | 33,2 | 86 | 5,9 |
| YH-252* | 25 (232) | 50 | 165 | 215 | 85 | 65,0 | 57,2 | 33,2 | 166 | 6,4 |
| YH-254* | 25 (232) | 102 | 215 | 317 | 85 | 65,0 | 57,2 | 33,2 | 339 | 8,2 |
| YH-256* | 25 (232) | 158 | 273 | 431 | 85 | 65,0 | 57,2 | 33,2 | 525 | 10,0 |
| YH-258 | 25 (232) | 210 | 323 | 533 | 85 | 65,0 | 57,2 | 33,2 | 697 | 12,2 |
| YH-2510 | 25 (232) | 261 | 374 | 635 | 85 | 65,0 | 57,2 | 33,2 | 867 | 14,1 |
| HY-2512 | 25 (232) | 311 | 425 | 736 | 85 | 65,0 | 57,2 | 33,2 | 1033 | 16,3 |
| YH-2514* | 25 (232) | 362 | 476 | 838 | 85 | 65,0 | 57,2 | 33,2 | 1202 | 17,7 |
| YH-308 | 30(295) | 209 | 387 | 596 | 101 | 73,2 | 57,2 | 42,1 | 880 | 18,1 |
| YH-502 | 50 (498) | 51 | 176 | 227 | 127 | 95,2 | 79,5 | 71,2 | 362 | 15,0 |
| YH-504 | 50 (498) | 101 | 227 | 328 | 127 | 95,2 | 79,5 | 71,2 | 719 | 19,1 |
| YH-506* | 50 (498) | 159 | 282 | 441 | 127 | 95,2 | 79,5 | 71,2 | 1131 | 23,1 |
| YH-5013 | 50 (498) | 337 | 460 | 797 | 127 | 95,2 | 79,5 | 71,2 | 2399 | 37,6 |
| YH-756 | 75 (718) | 156 | 285 | 441 | 146 | 114,3 | 95,2 | 102,6 | 1601 | 29,5 |
| YH-7513 | 75 (718) | 333 | 492 | 825 | 146 | 114,3 | 95,2 | 102,6 | 3417 | 59,0 |
| YH-1006 | 95 (933) | 168 | 357 | 525 | 177 | 130,3 | 104,9 | 133,3 | 2239 | 59,0 |
| YH-10010 | 95 (933) | 260 | 449 | 709 | 177 | 130,3 | 104,9 | 133,3 | 3466 | 72,6 |
