straw machine--straw extrusion
- ShangHai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Marrow | |
| Model Number | ML12 | Voltage | 380V | |
| Power(W) | 1.5kw | Certification | CE ISO | |
| Warranty | One Year |
Product Description

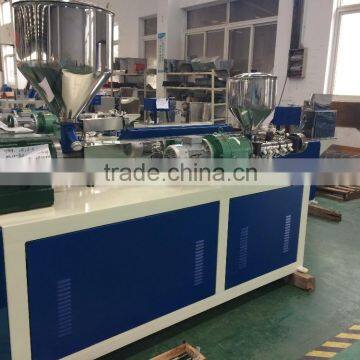

ML12 DRINKING STRAW EXTRUDER
DESCRIPTION
Model ML12 is a tube extrusion line, composed of extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, The series machines can produce all kinds of drinking strawspiral strip strawfrom one color to two color , medical pipe, all the machines controls base with the control elements ergonomically adapted to permit easy operation.
TECHNICAL FEATURE
1.The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,
2. Water bath in stainless steel can be adjusted in three planes ,
3. The haul-off unit can be belt or rollers, it is customizable.
4. Fitted with single or double rotary cutter.
5. Conveyor device(you may select if you want)
SPECIFICATIONS
Model | ML12 | |
Parameter of main screw | φ50mm(diameter) | |
Parameter of sub- screw | 1×φ25mm | |
Capability | 25~35Kg/h | |
Power supply | Main motor | 11kW 380v 50Hz (VFD) |
Sub motor | 0.75kW×1 | |
Haul-off motor | 0.75kW×1(VFD) | |
Cutting motor | 0.75kW×1(VFD) | |
ntroller | 8 zone | |
Heating power | 11.63kw | |
Length of cooling container | 3400mm/4400mm | |
Specifications | diameterφ2~14mm thickness0.08~1mm | |
Other specifications are customizable | ||
