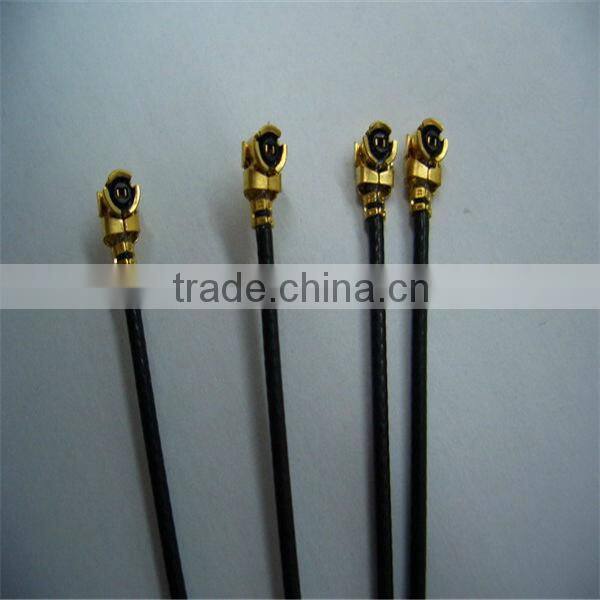

Ipx1.13 to Ipx 1.13 rf 1.13 Coaxial Cable Assembly

Specifications

 ipx1.13 to ipx 1.13 rf 1.13 coaxial cable assembly

Features:

Profile: 2.5mm Mated Height

Cable: 0.81, 1.13, 1.32, 1.37, 1.48 and RG178 cable

Specification:

Frequency Range: DC 0 to 6GHz (VSWR: 1.5Max.)

Characteristic Impedance: 50 ohm

Temperature: -40 to +90

Rated Voltage: AC 60V

Withstand Voltage: AC 200V

Insulation Resistance: 500M ohm Min./DC 100V

Applicable Technology: IEEE802.11 a/b/g/n, UWB,

WiMax, iBurst, Zigbee, Bluetooth Wireless, MIMO

Applications: Cellular Phone, Notebook Computer,

Game Equipment, Access Point, WiFi Antenna

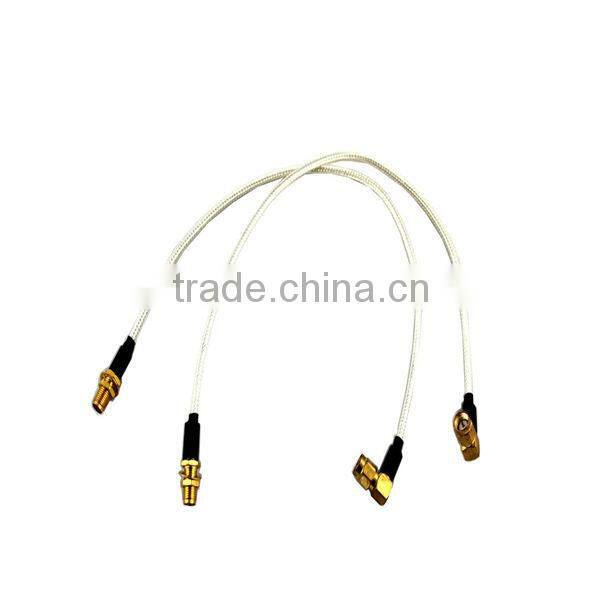

 RG-316 SMA male to female right angle SMA Coaxial Cable Assembly

Detailed Product Description

SMB 4m RG-316 Good Electrical Conductivity Microwave RF Cable Assembly ATL-SMA(316)

Specifications:

Description:

RF cable assembly Features:

Low return loss

Good electrical conductivity

Applications:

 Most of antennas using

Competitive Advantage:

 Low return loss

Good electrical conductivity

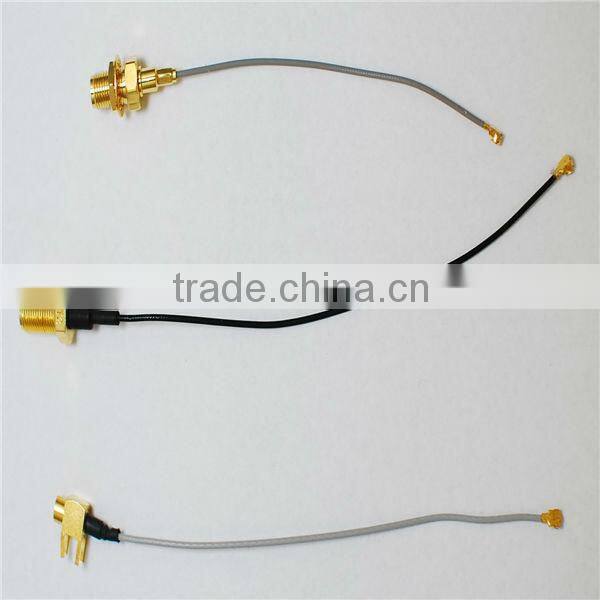

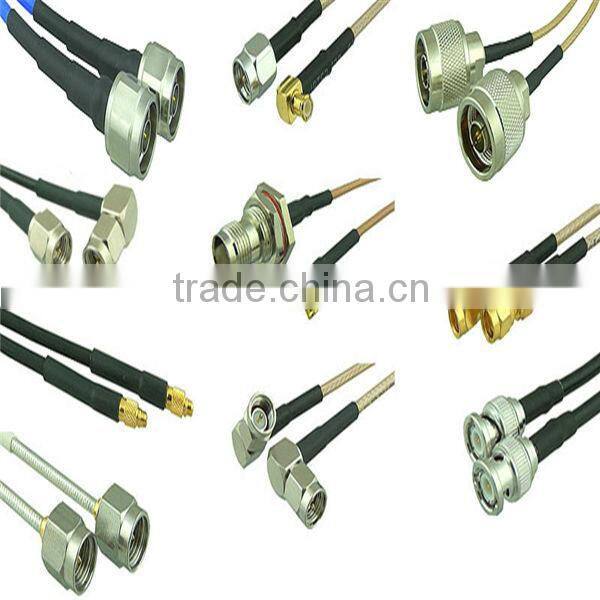

RF Coaxial Cable Assembly

1.Electrical Properties

1.1Frequency Range: 1.5~5GHz

1.2 Impedance: 50Ohms/75Ohms

2. Physical Properties

 2.1 Cable Type......1.13mm.1.37mm/RG-178.RG174.RG316.RG58U.RG59

 2.2 Cable Connector1.....SMA/MCX/MMCX/Ftype/IEC/FME/U.HF

 2.3 Cable Connector2..SMA/MCX/MMCX/Ftype/IEC/FME/U.HF

RF Coaxial Cable Assembly

Applied Coaxial Cable Assembly

If you have your own designs for coaxial cable, pls also dont hesitate to send them to me via email, we will give you our professional advice and our best price.
