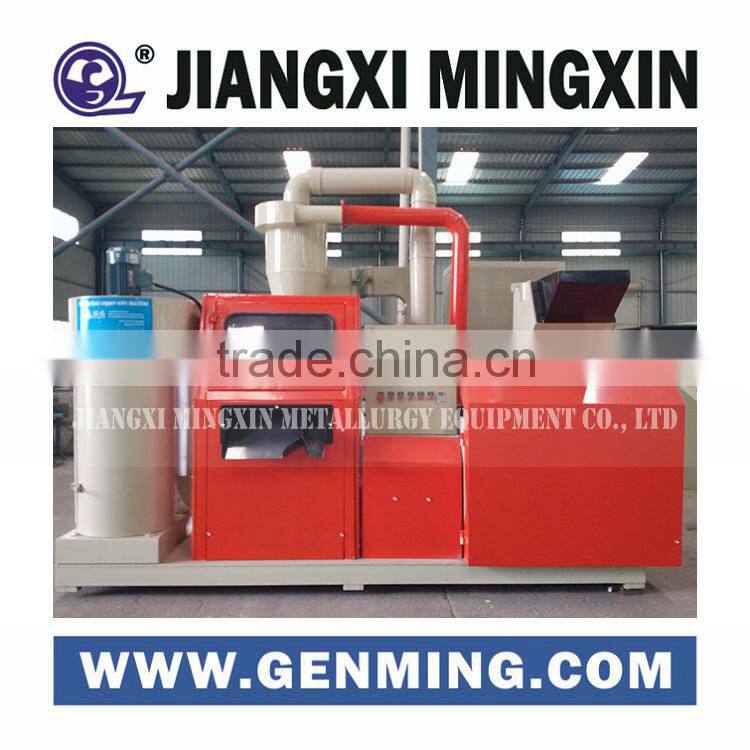

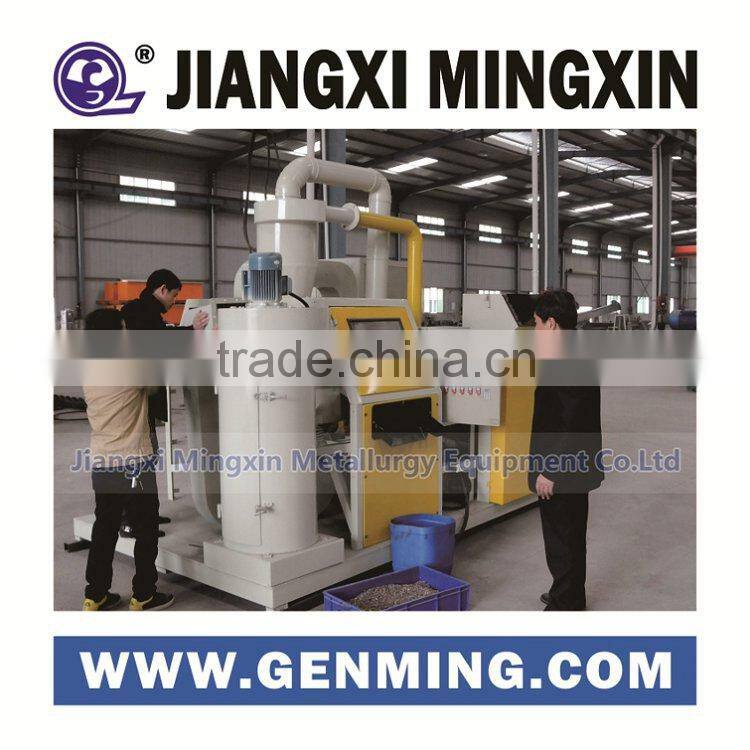

Automatic Dry Type Waste Copper Cable Recycling Machine

Application for waste cable recycling machine   :

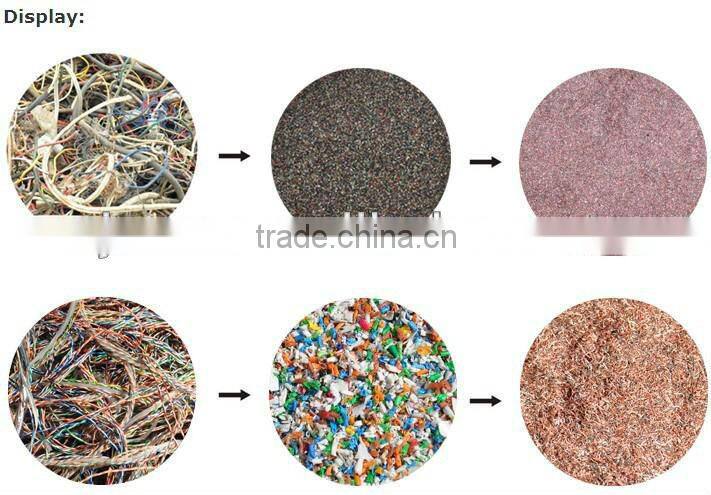

Automation copper wire machine is a professional dry separation of waste wire and cable production line  will be separated into tiny copper rice and plastic, the applicable range of Φ waste wire diameter of 0.3 mm to 20 mm, the old auto circuit lines ,communication cables and wire stripping machine is not suitable for machining (various civilian wire).Waste miscellaneous material wire. Filament wire etc. can be also broken separation without classification .After crushing processing and shock treatment, screen separation copper and plastic will be sorting out.

Working Principle of waste cable recycling machine  :

The copper wire is directly put into the machine, it is cut into granules first. During this process, copper andplastic is mixed together. Then the granules are sent to vibration device for separation. Through wind blow and vibration, the copper and plasticis are separated. Finally pure copper comes out from one side and pure plastic comes out from the other

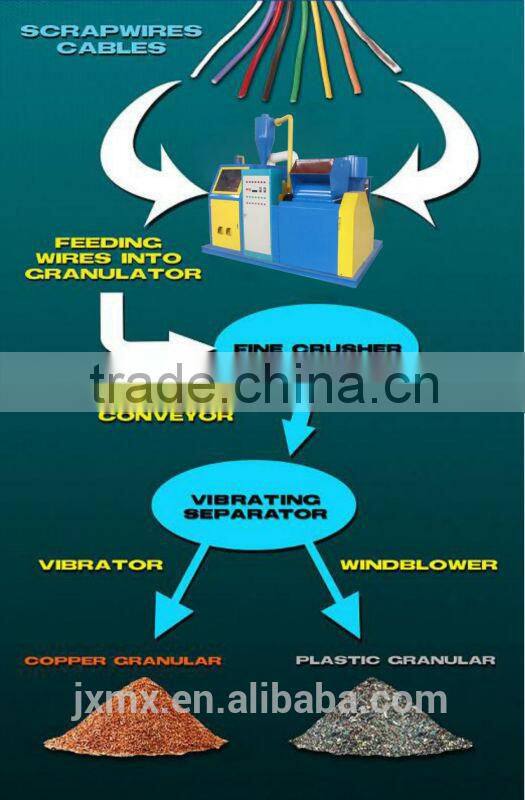

flow chart of waste cable recycling machine

Feature of waste cable recycling machine  :

(1) the automation degree of the whole line is high, it is easy to operate.

(2) during the process of sorting, PE,PVC and copper are recycled with 99%.

(3) the seperating copper has a purity up to 99%

(4)No pollution

(5) Energy saving

(6) It is semi-permanent machine, only need to change the consumptive or wearing accessaries.

The technical parameters of  waste cable recycling machine
