Product Details

ac dc led power source
1.Installed with EMI filter,minimum wave
2.Globallyapplicable AC input power
3.High reliability,safety

single output ac dc led power source

Features:

Model		C100-W1V5	C100-W1V12	C100-W1V15	C100-W1V24
output	DC voltage	5V	12V	15V	24V
	Voltage tolerance	±1%	±1%	±1%	±1%
	Current range	0~20A	0~8.5A	0~6.7A	0~4.5A
	Rated power	100W	100W	100W	100W
	DC voltage ADJ.range	±10%	±10%	±10%	±10%
input	Voltage range	85~132VAC 170~264VAC (selected by switch)
	frequency	47~63HZ
	AC current	2.4A/110V,1.2A/230VAC
	efficiency	81%	84%	85%	85%
	Inrush current	Cold start current 20A/115V,40A/230V
	Leakage current	< 2mA/240VAC
protection	overload	Rated output power105%~135% start over load protection
		protection type:hiccup mode, recovery after restart power
	over-voltage	115~135%cut off the output ,auto-recovery
	-----	-----
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Comply with EN55022,UL60950
	Weight/packing/size	0.3kg/60pcs/18kg/ 1128934MM
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation

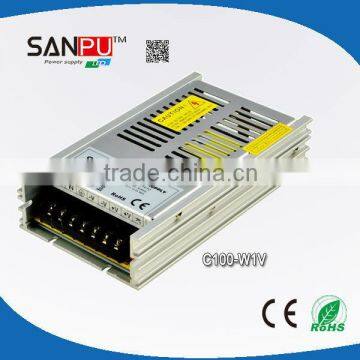

Pictures:
