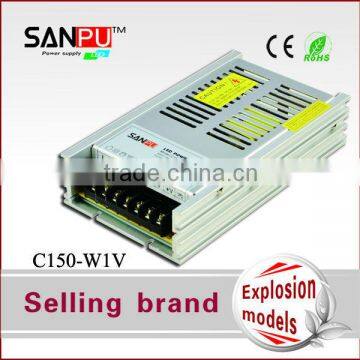

waterproof grade IP20 150W led point lamp power source

Model

C150-W1V5

C150-W1V12

C150-W1V15

C150-W1V24

output

DC voltage

5V

12V

15V

24V

Voltage tolerance

±1%

±1%

±1%

±1%

Current range

0~30A

0~12.5A

0~10A

0~6.5A

Rated power

150W

150W

150W

150W

DC voltage ADJ.range

±10%

±10%

±10%

±10%

input

Voltage range

85~132VAC 170~264VAC (selected by switch)

frequency

47~63HZ

AC current

3.2A/110V,1.6A/230VAC

efficiency

81%

84%

85%

85%

Inrush current

Cold start current 20A/115V,40A/230V

Leakage current

< 2.5mA/240VAC

protection

overload

Rated output power105%~135%  start over load protection

protection type:hiccup mode, recovery after restart power

over-voltage

115~135%cut off the output ,auto-recovery

-----

-----

-----

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

Comply with EN55022,UL60950

Weight/packing/size

0.39kg/50pcs/19.5kg/ 158*88*34MM

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation
