STA Double Spiral SCR Heating Element for High Temperature Furnace

               STA Double spiral SCR Heating element for high temperature Furnace

Character: high-applied temperature anti-oxidization ,anti-corrosion ,long service life ,little deformation, easy installation and maintenance.

Usage: heater silicon carbide sic heating elements used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy ,glass, and machinery.

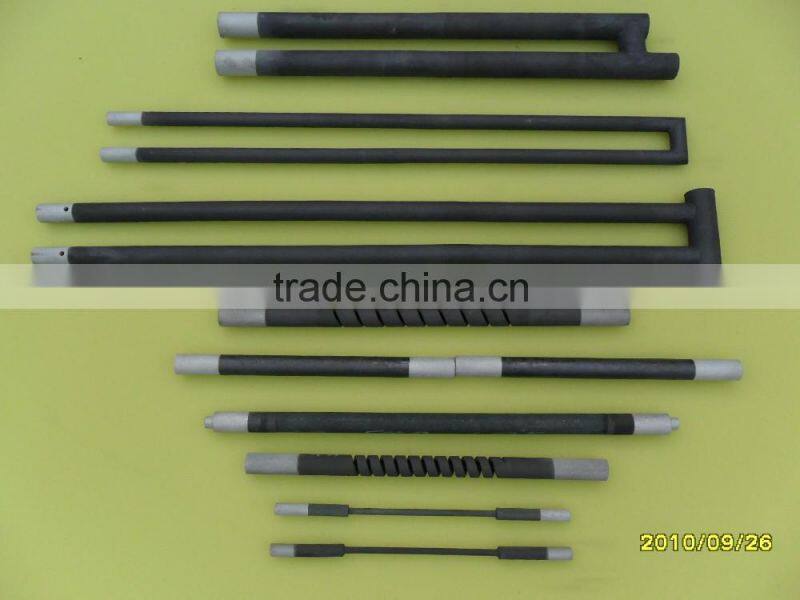

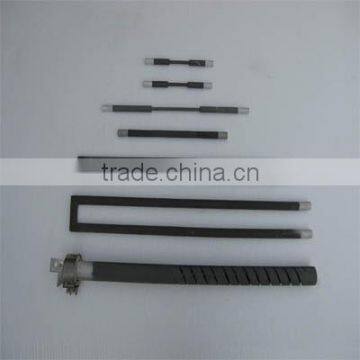

Type: we have rod ,u, w, h, gun, single spiral, double spiral, dumbbell, door like type heater silicon carbide sic heating elements.

Heater silicon carbide sic heating elements have rather large specific resistance. When it is heated in air and the surface temperature of the hot zone reaches 1050°C,it's resistance rate is 600-1400mm2/mm and its resistance value changes as the temperature rises which is negative value from room-temperature to 800 °C  and is postive value nature over 800 °C .

The key factor to the optimum service life of the element is to select the surface load of the element correctly according to the furnace construction, atmosphere and temperature. The figure shows the relation between furnace temperatures, element temperature and element surface load under the condition that the element radiation is not obstructed.

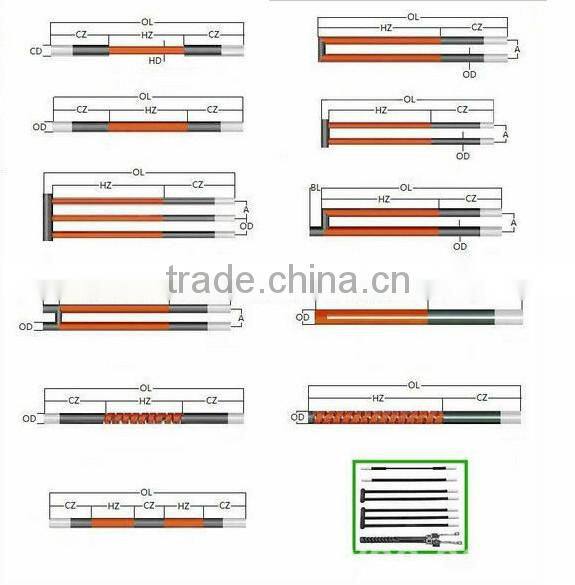

Technical parameter of SiC Heating Element:

Please kindly tell us the size of heating element when you order.

1. Typle: U, W, Single Spiral etc.

2. Out Diameter (OD)

3. Heating Zone Lengh (HZ)

4. Overall Length (OL)

5. Resistance

Order Sample: Stright type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.

1)Our products can be customized according to customer requirements.

2)Notes for using and installing the heater:

3)Heater should be protected againest damp during storing or installing to ensure the performance of the henter.

4)In order to be sure of well-distributed lod of each and groups heater shoud be divided before assembling. The tolerance of the resistance of each one can not exceed by 10% each other.

5)Heater is hard and brittle, please be careful when assem bling and maintaining so as to avoid damage.

6)When operating the electric furnace at the beginning, the voltage should be increased slowly and can not be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.

7)When heater is damaged and need to be changed , the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, akk heater should be changed.

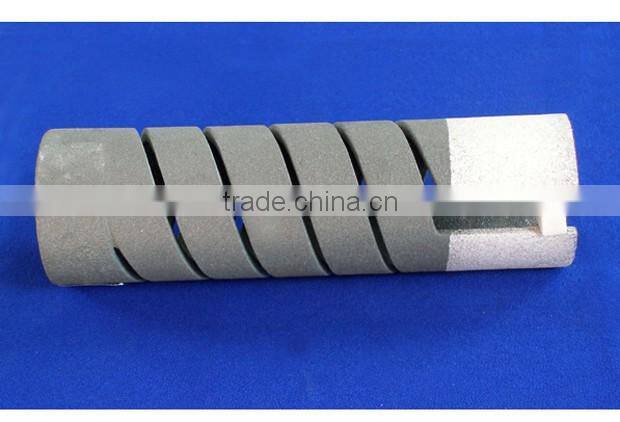

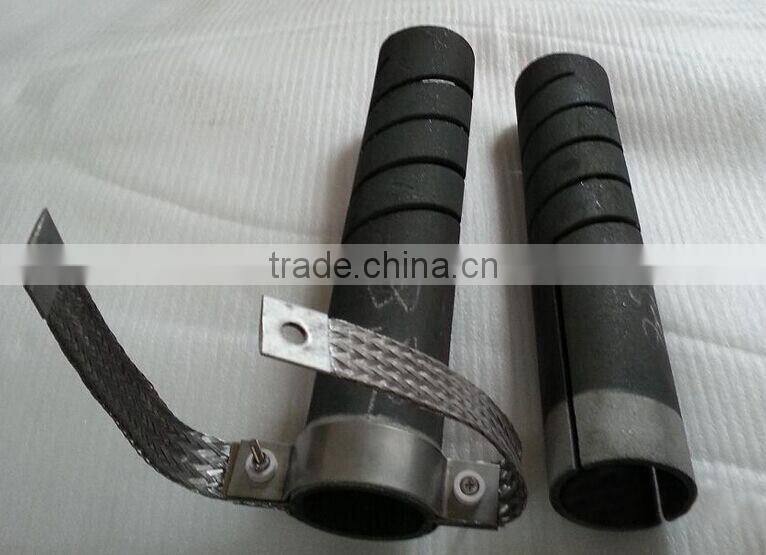

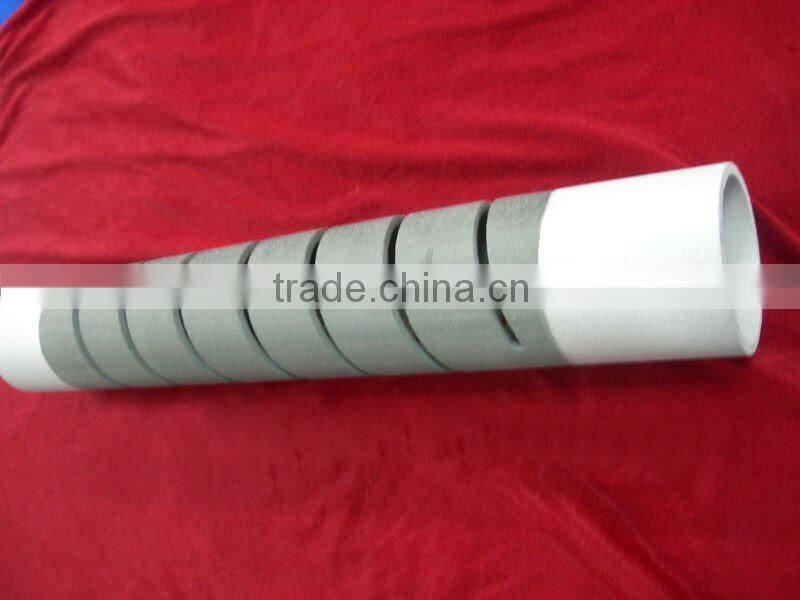

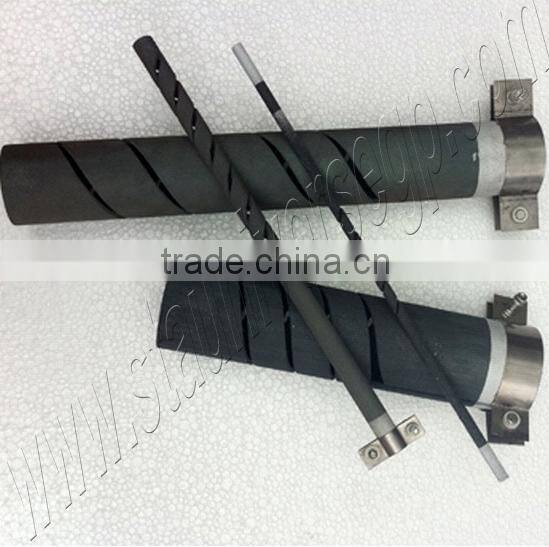

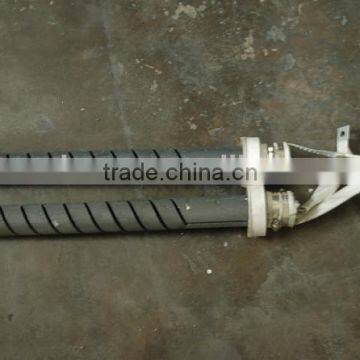

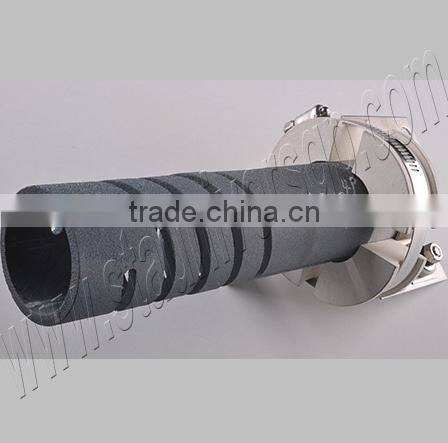

ScR heating element:

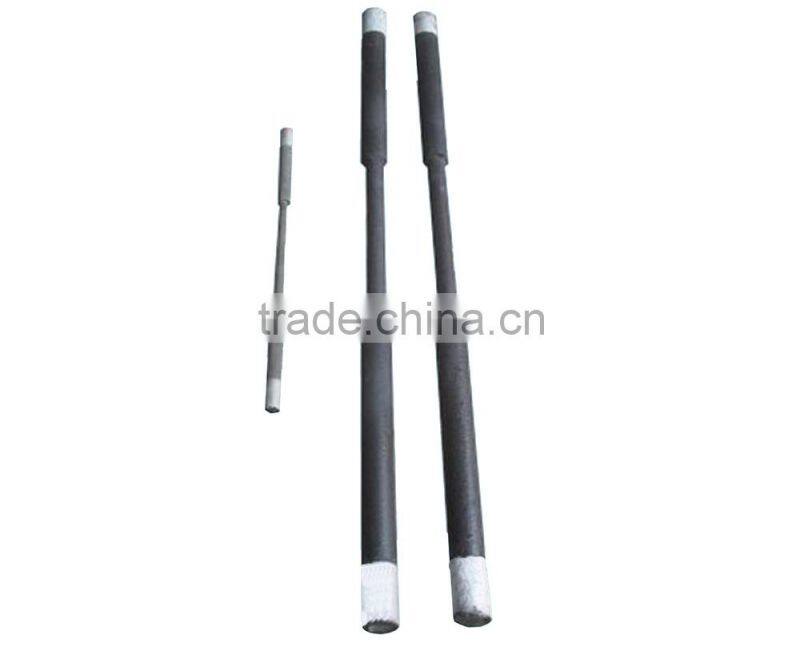

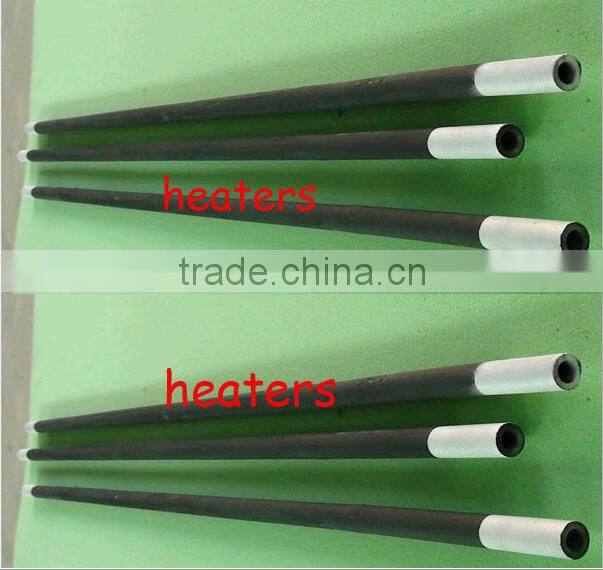

DB type heating element:

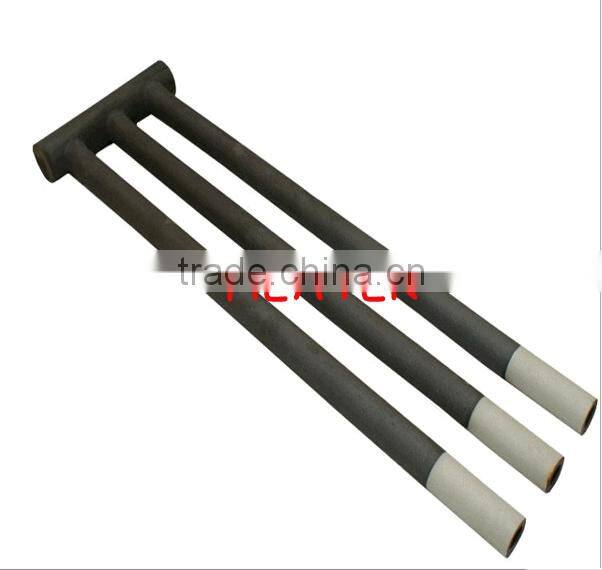

W type heating element:

EB type heating element:

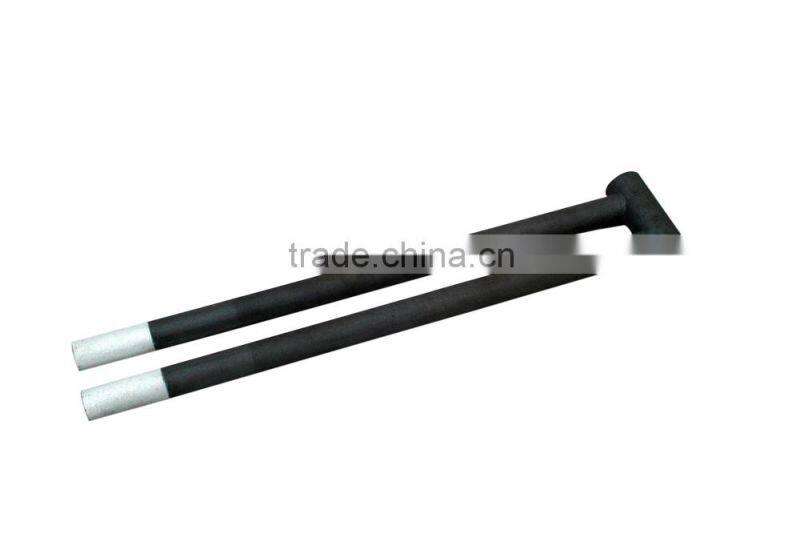

U type SiC heating element:

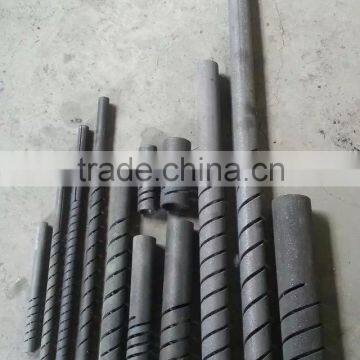

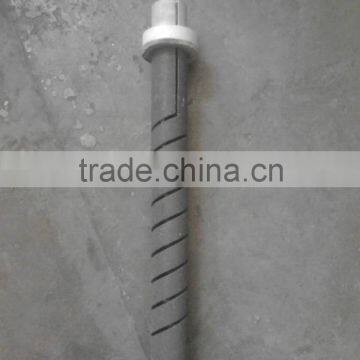

SG heating elements:

Any question, pleasre don't hesitate to contact us!
