STA 1400C 1500C 1600C Sic Elements Silicon Carbide Heating Rod for Klin

STA silicon carbide heating rod which uses high-purity green silicon carbide as main materials and be recrystallized to be formed above 2300 C. Because of its stable chemical property, high mechanical strength, small coefficient of heat expansion, convenient installation and maintenance, it can be used in an air atmosphere up to 1500 C without any protection atmosphere under rational condition, it can be continuously used over 5000 hours. It is suitable for electric kiln and furnace and has been widely used in the fields of national defense, mechanism, metallurgy, light chemical industry, ceramics, electron, glass, analysis test and scientic research, it plays an important role in national economy. Type: GC Type, GD Type, U Type, Spiral Type, SGR Type Dia: 6-60mm Temp: 600-1600 C

Types
We make Rod type(ED type), Dumbbell type(dB type), U type, W type (Three Phase type), Solid Rod type, Spiral type, 5 piece type (dual hot zone), Gun type, H type or according to your requirement.

for example

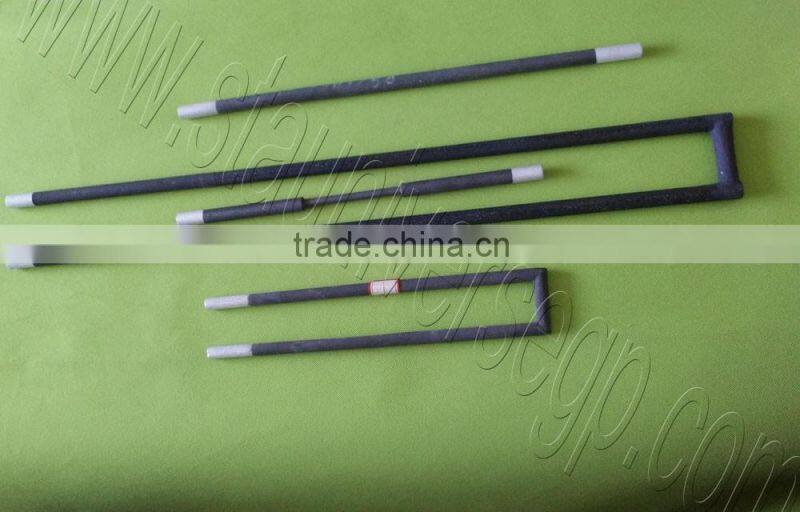

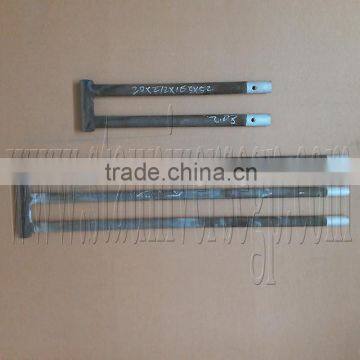

u and w  shape

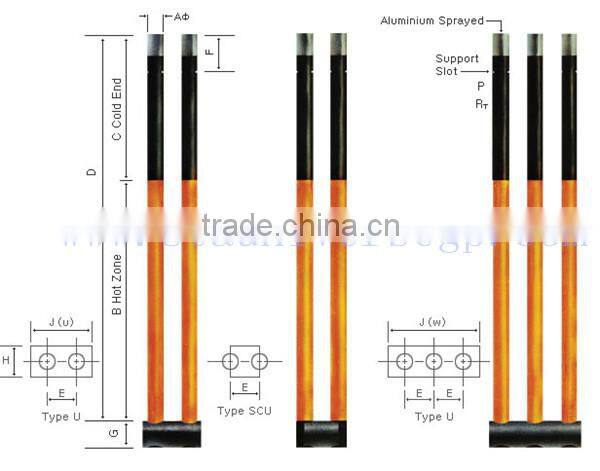

Length of hot zone(HZ)(mm)

Length of cold zone(CZ)(mm)

Overall Length(OL)(mm)

Dia(OD)  (mm)

d=8,D=14mm, HZ=150mm, CZ=100mm, OL=350mm, Resistance=1.5ohms.

Please specify as: dia8/14x150x350mmx1.5ohms

Specification and Range of Resistance:

Applications
STA  silicon carbide heating rod  are used in a wide variety of furnace applications, from small laboratory furnaces to large industrial heating processes, in different atmospheres and temperature ranges. The elements allow great freedom in furnace design which combined with simple installation and a long operating life, makes them the preferred choice in many applications including; The glass, ceramics, electronics and metals industries, and also for research and development.


   standard wooden packaging or customized

 High puriy material make sure high max working temperature,
Tight tolerance make sure the right installation.
Large quantity Crucibles in stock ensured fast delivery
Large capacity reduce crucible prices
