Home > Products > FX90 Series High Speed Fancy Braiding Machine > FX90 series high speed fancy braiding machine FX90-64

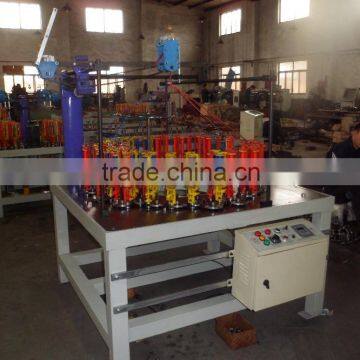

FX90 series high speed fancy braiding machine FX90-64
- shanghai
You May Like
-
114 spindle Fancy cotton braided rope making machine /Packing Knitting Rope making machine
-
Decorative rope braiding machine /Fancy round braided rope making machine
-
PP fancy rope Braided rope machine FX90-64
-
114 spindle High speed fancy braiding machine/decorative laces making machine
-
90 Series 83 Spindle High speed fancy braiding machine
-
FX90 Series 65 Spindle High speed fancy braiding machine
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | FX90-64 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
good quality & service & competitive price
manufacturer & delivery on time
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intelligent control system & advanced technology
- good quality & service and competitive price
- manufacturer & delivery on time
- CE,ISO9001
| FX90 Series High Speed Fancy Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| FX90-64 | 64 | 1 | 1500 X 1450 X 1700 | 0.75 | 300 | A | Φ43 X 140 | |
| FX90-83 | 83 | 1 | 1600 X 1500 X 1700 | 1.1 | 300 | A | Φ43 X 140 | |
| FX90-89 | 89 | 1 | 1600 X 1500 X 1700 | 1.1 | 300 | A | Φ43 X 140 | |
| FX90-103 | 103 | 1 | 1700 X 1600 X 1700 | 1.5 | 300 | A | Φ43 X 140 | |
| FX90-114 | 114 | 1 | 1700 X 1600 X 1700 | 1.5 | 300 | A | Φ43 X 140 | |
Range of products: Various decorative laces and tapes.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
5.details
:
samples:
