Home > Products > GD265 Series High Speed Braiding Machine > 8 spindle marine rope braiding machine GD335-8-1

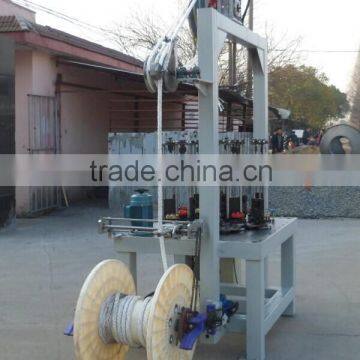

8 spindle marine rope braiding machine GD335-8-1
- shanghai
- T/T
You May Like
-
265 series 24 spindle safety rope braiding machine GD265-24-1
-
265 series 16 spindle high speed rope braiding machine GD265-16-1
-
265 series 12 spindle high speed rope braiding machine GD265-12-1
-
32 Spindle big rope making machine GD270-32-1
-
8 Spindle rope braiding machine GD335-8-1
-
12 Spindle cable braiding machine
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | GD335-8-1 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Intellignrt control system and Reliability
High quality and Factory,cheap
High quality braiding machine
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| GD265 Series High Speed Rope Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| GD335-8-1 | 8 | 1 | 1400 X 1200 X 2150 | 1.1 | 80 | E | Φ130 X 400 | |
| GD265-12-1 | 12 | 1 | 1550 X1220 X 2150 | 1.1 | 90 | E | Φ130 X 400 | |
| GD264-16-1 | 16 | 1 | 1300 X 1100 X 2000 | 1.5 | 90 | E | Φ130 X 400 | |
| GD265-24-1 | 24 | 1 | 1450 X 1250 X 2000 | 1.5 | 90 | E | Φ130 X 400 | |
Range of products:
High strengh ropes,mountaineering ropes,marine ropes,fire ropes,safety ropes,fishing net rope and etc.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
samples:
wooden case
About us
1. 1.Professional technical team:
2. comfortable working environment:
3.
4. Certification:
