STA Zirconia Ceramic zro2 foam filter for metal foundry
- 20 Ton / Tons per Month
- ANY PORT IN CHINA
- Credit Card
You May Like
-
STA Zirconia Ceramic Foam Filter for Steel Casting
Quality Choice
-
STA Alumina Ceramic Foam Filter for Iron Casting
-
STA alumina ceramic foam filter for filtering molten alumnium ceramic
-
china 99.8% purity ceramic roller quartz roller
-
Fused Silica Ceramic Rollers
-
Fused Silica Ceramic Rollers For Glass Tempering Furaces
Product Details
| Place of Origin | Henan, China | Type | Ceramic Plates | |
| Application | Refractory | Material | Alumina Ceramic | |
| Model Number | STA-FF004 | Brand Name | STA |
Product Description
STA Zirconia Ceramic zro2 foam filter for metal foundry
We can supply ceramic foam filters are as follows:
1. Silicon Carbide Ceramic Foam Filter is applied to purge and filter solution of ductile iron casting, grey iron and other iron casting.
2. Zirconia Ceramic Foam Filter is applied to purge and filter solution of steel high temperature metal such as steel alloy stainless steel etc.
3. Magnesia Ceramic Foam Filter is applied to purge and filter solution of magnesium and magnesium alloy.
4. Alumina Ceramic Foam Filter is applied to purge and filter solution of aluminium and aluminium alloys.
Specification of ceramic filters:
Material | ZrO2 | SiC | Al2O3 |
Colour | Yellow | Sage green | white |
Aperture (ppi) | 4~60 | 4~60 | 4~60 |
Cell-opening ratio(%) | 80~90 | 80~90 | 80~90 |
Operating temperature(°C) | 1680 | 1500 | 1100 |
Porosity(≥%) | 80 | 80 | 90 |
Compression Strength(MPa) | 1.5 | 0.8 | 0.7 |
Density(g/cm3) | 0.55-0.80 | 0.40-0.80 | 0.46-0.80 |
Thermal Shock Resistance(1100-20°C) | >6 times | >6 times | >6 times |
application | steel | iron | Non-ferrous,Alumina
|
Character of ceramic filter:
Micron grade impurities separation
Excellent erosion resistance
Stable purifying efficiency
Long work life, reduce casting cost
Improve casting quality, reduce defective rate

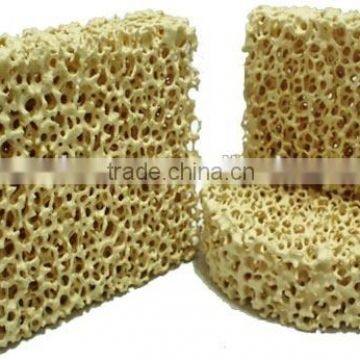

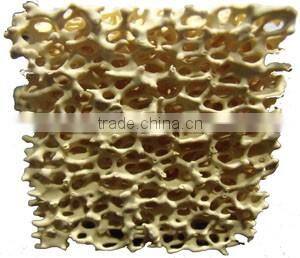

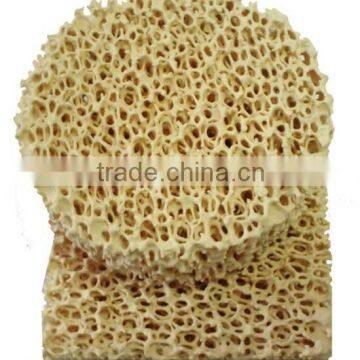

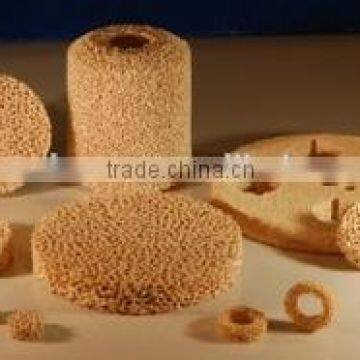

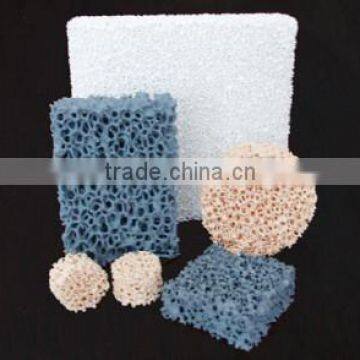

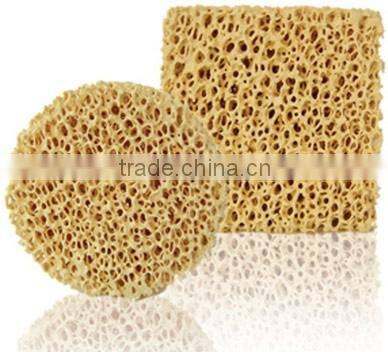

Pictures of ceramic filter:
Size of ceramic filters is for your reference:
No. | Size (mm) | Flow velocity (Kg/s) | Filter capacity (Kg) | ||
Gray castiron | Ductile castiron | Gray castiron | Ductile castiron | ||
1 | 30×50×22 | 2~4 | 1~3 | 45~60 | 15~30 |
2 | 40×40×11 | 2~4 | 1~3 | 45~60 | 15~30 |
40×40×13 | 2~4 | 1~3 | 45~60 | 15~30 | |
40×40×22 | 2~4 | 1~3 | 45~60 | 15~30 | |
3 | 50×50×13 | 3~6 | 2~4 | 55~90 | 25~45 |
50×50×22 | 3~6 | 2~4 | 55~90 | 25~45 | |
4 | 60×60×22 | 4~8 | 3~5 | 65~110 | 40~75 |
5 | 66×66×22 | 5~9 | 4~6 | 80~130 | 45~80 |
6 | 75×50×22 | 4~8 | 5~7 | 65~110 | 40~75 |
7 | 75×75×22 | 9~14 | 6~9 | 145~220 | 70~100 |
8 | Φ50×22 | 3~5 | 1~3 | 50~70 | 20~40 |
9 | Φ60×22 | 3~6 | 2~4 | 65~110 | 35~60 |
10 | Φ70×22 | 4~8 | 3~6 | 75~130 | 40~75 |
11 | Φ76×22 | 5~9 | 4~7 | 90~150 | 45~80 |
12 | Φ90×22 | 10~15 | 6~9 | 180~260 | 75~110 |
13 | 100×50×22 | 8~12 | 5~8 | 130~200 | 65~90 |
14 | 100×60×22 | 9~14 | 6~9 | 180~260 | 70~100 |
15 | 150×100×22 | 18~25 | 12~16 | 300~ 400 | 150~210 |
16 | 150×150×22 | 35~50 | 24~36 | 400~ 900 | 300~450 |
Packing: PE bag inside outer carton(930*630*230mm),finally make the wooden pallet(950*950mm 950*1000mm) or according to your requirement
Shipping term: DHL/FEDEX/TNT/UPS

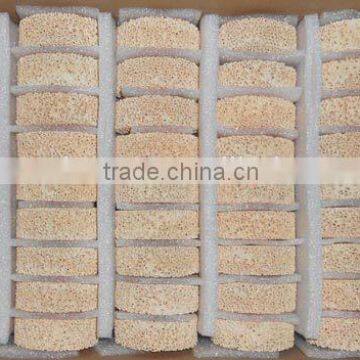

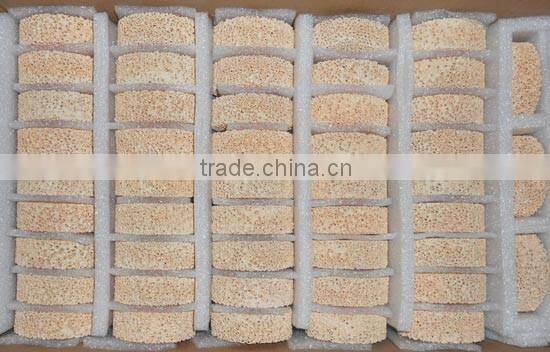

Packaging:
STA UNIVERSE GROUP CO.,LTD is a profession manufactory in China for years. We specialize in muffle furance, ceramic fiber products, refractory and related goods. High quality products with competitive price are popular to customer. With good after-sales service, our company have a highest reputation at overseas.
Founded is 2001, The universe group is dedicating to innovation and creating a world brand from now on. Original a small collective plant on the verge of workshop, it has now grown into an international group which has more than 72,00 employees around the globe and realizes a turnover of 2.7 billion yuan in 2010.
Our Service
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. All our products have 1-year warranty.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
7. Check quality of items one by one
8. Provide packing photos and tracking number
9. tracking parcel for you.
1.Do you have MOQ of goods?
We accept the trial order, so you can test quality firstly.
2.Can you offer best price for us to beat competitors?
Of course, we can update price to support your business.
3.How long will it take to complete my order?
For the stock items, we can arrange the shippment within 2 days after paymment is received. For the customized items,lead time is about 25 days.
4.What's your after-sales service?
Furances is 2 years warranty, other products is 3 months.
5. Can you send goods to our shipping agent in China?
YES, We can. And delivery time is within 3 days.
6. I will go to China for Shanghai international exhibition of refractories and industrial ceramics, And can we visit your factory?
We are so happy to get your visit.
