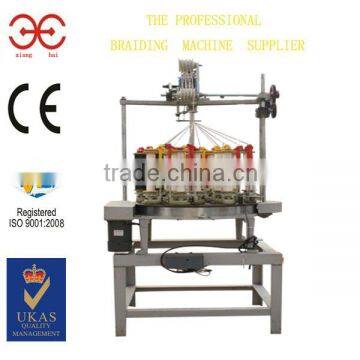

big 16 spindle middle speed braiding machine
- Shanghai
- T/T
You May Like
-
DH180 Series 9 Spindle Middle Speed Round RopeBraiding MachineDH180-9
-
3-strand cord braiding machine
-
DH130 Series 16 Spindle Middle Speed Round Rope Braiding Machine
-
DH130 Series 24 Spindle Middle Speed Braiding MachineDH130-24
-
DH130 &150 Series 32 Spindle Middle Speed Braiding MachineDH130-32
-
DH130 Series 8 Spindle Middle Round Rope Speed Braiding MachineDH130-8
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | DH130-16 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
16 Spindle Braiding MachineFor Shoe laces,Elastic cords,etc
cheap
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| DH130,150 Series Middle Speed Round Rope Braiding Machine | ||||
| Model | Spindle Qty | Measurement(mm) | Power (kw) | Bobbin Size(mm) |
| DH130-16 | 16 | 660 X 500 X 1700 | 0.25 | Φ58 X 180 |
| DH130-24 | 24 | 720 X 600 X 1700 | 0.25 | Φ58 X 180 |
| DH130-32 | 32 | 800 X 680 X 1700 | 0.36 | Φ58 X 180 |
| DH130-40 | 40 | 1050 X 860 X 1800 | 0.36 | Φ58 X 180 |
| DH130-48 | 48 | 1150 X 1000 X 1800 | 0.5 | Φ58 X 180 |
| DH150-16 | 16 | 660 X 550 X 1700 | 0.25 | Φ70 X 210 |
| DH150-24 | 24 | 790 X 660 X 1700 | 0.25 | Φ70 X 210 |
| DH150-32 | 32 | 880 X 750 X 1700 | 0.36 | Φ70 X 210 |
| DH150-40 | 40 | 1150 X 950 X 1800 | 0.36 | Φ70 X 210 |
| DH150-48 | 48 | 1270 X 1100 X 1800 | 0.5 | Φ70 X 210 |
| Range of Products: Gift bag ropes,high tension ropes,fishing lines,satety rope,fiberglass sleeves,round elastic bands,hollow ropes,core ropes,and etc. | ||||
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
samples:
wooden case
