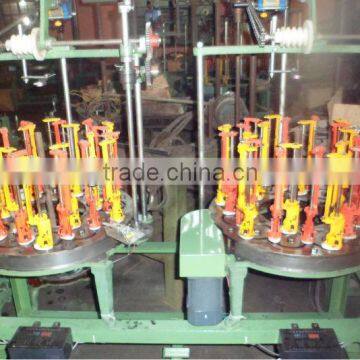

DH100 Series 24 Spindle Middle Round Rope Speed Braiding MachineDH100-24
- Shanghai
- T/T
You May Like
-
DH100 Series 48 Spindle Middle Round Rope Speed Braiding MachineDH100-48
-
DH100 Series 40 Spindle Middle Round Rope Speed Braiding MachineDH100-40
-
DH100 Series 16 Spindle Middle Round Rope Speed Braiding MachineDH100-16
-
DH100 Series 41 Spindle Middle Flat Rope Speed Braiding Machine DH100-41
-
DH100 Series 56 Spindle Middle Round Rope Speed Braiding MachineDH100-56
-
DH series middle speed high tension rope ,gift bag rope, fishing line,marine rope braiding machine DH130-40
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | DH100-24 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
16 Spindle Yarn Braiding MachineFor Shoe laces,Elastic cords,etc
High quality braiding machine
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| DH100 Series Middle Speed Round Rope Braiding Machine | ||||
| Model | Spindle Qty | Measurement(mm) | Power (kw) | Bobbin Size(mm) |
| DH100-8 | 8 | 460 X 430 X 870 | 0.12 | Φ48 X 140/48 X 113 |
| DH100-16 | 16 | 540 X 460 X 900 | 0.12 | Φ48 X 140/48 X 113 |
| DH100-20 | 20 | 630 X 560 X 920 | 0.12 | Φ48 X 140/48 X 113 |
| DH100-24 | 24 | 680 X 590 X 950 | 0.18 | Φ48 X 140/48 X 113 |
| DH100-32 | 32 | 790 X 730 X 950 | 0.18 | Φ48 X 140/48 X 113 |
| DH100-40 | 40 | 1000 X 1000 X 1050 | 0.25 | Φ48 X 140/48 X 113 |
| DH100-48 | 48 | 1100 X 1100 X 1050 | 0.3 | Φ48 X 140/48 X 113 |
| DH100-56 | 56 | 1180 X 1180 X 1050 | 0.36 | Φ48 X 140/48 X 113 |
| DH100-64 | 64 | 1250 X 1250 X 1050 | 0.5 | Φ48 X 140/48 X 113 |
| DH100-72 | 72 | 1380 X 1380 X 1100 | 0.68 | Φ48 X 140/48 X 113 |
| DH100-84 | 84 | 1610 X 1600 X 1050 | 0.75 | Φ48 X 140/48 X 113 |
| DH100-88 | 88 | 1650 X 1650 X 1050 | 0.75 | Φ48 X 140/48 X 113 |
| DH100-96 | 96 | 1780 X 1780 X 2250 | 0.75 | Φ48 X 140/48 X 113 |
| DH100-104 | 104 | 1900 X 1900 X 2250 | 0.75 | Φ48 X 140/48 X 113 |
| DH100-108 | 108 | 1980 X 1980 X 2250 | 1.1 | Φ48 X 140/48 X 113 |
| DH100-120 | 120 | 2080 X 2080 X 2350 | 1.1 | Φ48 X 140/48 X 113 |
| DH100-140 | 140 | 2500 X 2500 X 2350 | 1.5 | Φ48 X 140/48 X 113 |
Range of products:
Gift bag ropes,high tension tension ropes,fishing lines,satety rope,fiberglass sleeves,round elastic bands,hollow ropes,core ropes,and etc.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
5.details:
samples:
wooden case
About us
1. 1.Professional technical team:
2. comfortable working environment:
3. Certification:
COTANCT US:
Address:NO.8 zone,NO.3841 Huqingping Road, shanghai ,21703,china.
website:
shxianghai.en.china.cn
contact: Amy Xia
Skype:xianghai-amy QQ:2466224175 FAX:21-6975655
WELCOME YOU
