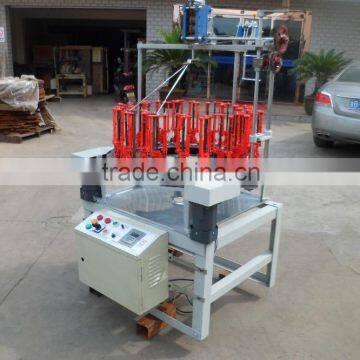

DH100 series 41 carrier middle speed shoelace ,flat belt , bandlet , underwear belt braiding mahine
- shanghai
- T/T
You May Like
-
DH100 series 13 spindle middle speed bandlet. flat belt. elastic belt. underwear belt.knitting mahine DH100-13
-
DH100 series 108 spindle middle speed fishing line making machine DH100-108
-
DH100 series 48 spindlemiddle speed safety rope knitting machine DH100-48
-
DH100 series 40 spindle middle speed core rope making machine DH100-40
-
DH100 series 32spindle middle speed core rope knitting machine DH100-32
-
DH100 series 24carrier middle speed hollow rope braider DH100-24
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | DH100-41 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Intellignrt control system and Reliability
High quality and Factory,cheap
High quality braiding machine
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| DH100 Series Middle Speed Flat Rope Braiding Machine | ||||
| Model | Spindle Qty | Measurement(mm) | Power (kw) | Bobbin Size(mm) |
| DH100-9 | 9 | 460 X 430 X 870 | 0.12 | Φ48 X 140/48 X 113 |
| DH100-13 | 13 | 530 X 410 X 890 | 0.12 | Φ48 X 140/48 X 113 |
| DH100-17 | 17 | 540 X 460 X 900 | 0.12 | Φ48 X 140/48 X 113 |
| DH100-21 | 21 | 630 X 580 X 900 | 0.18 | Φ48 X 140/48 X 113 |
| DH100-25 | 25 | 690 X 600 X 950 | 0.12 | Φ48 X 140/48 X 113 |
| DH100-29 | 29 | 730 X 700 X 950 | 0.18 | Φ48 X 140/48 X 113 |
| DH100-33 | 33 | 795 X 740 X 950 | 0.18 | Φ48 X 140/48 X 113 |
| DH100-41 | 41 | 1000 X 950 X 1100 | 0.36 | Φ48 X 140/48 X 113 |
| DH100-45 | 45 | 1080 X 1000 X 1100 | 0.36 | Φ48 X 140/48 X 113 |
| DH100-53 | 53 | 1130 X 1050 X 1100 | 0.36 | Φ48 X 140/48 X 113 |
| Range of products: Flat rope,flat belt,elastic belt,shoelace,bandlet,topline belt,underwear belt,and etc. | ||||
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
5.details:
samples:
