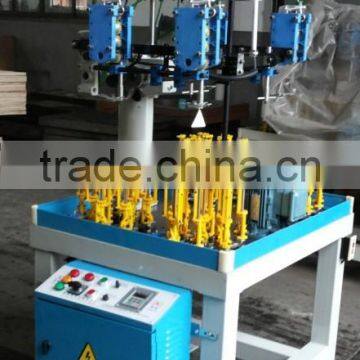

13 Spindle high speed pp rope making /Braiding Machine XH80-13-4

Our team  has gained over 30 years experience in offering technically advanced Braiding Machine for rope to our clients. These machine are developed using best-in-class raw material and advanced technology. - All spare parts are made by ourselves, and every parts have to pass strict inspection before they are installed on the machine. We also offer our range in various specifications, which can be customized as per the specification given by our clients.

MAIN FEATURES:
- The Machine is High speed and still noiseless.
- Space saving, because of compact design
- The yarn packages, generally available in cone form, can directly mounted on creel and fed to the machine.
- Stop motion fitted for detecting the yarn.
- Density of produced cord is adjustable by change pitch gears system.

-make different size of products by changing the pitch gears

- adopting frequency control motor which is easy to control the speed

-auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop automatically, which reduce the waste of the yarn. So when there is nobody works near the machine, it is also safe. This device lower the labor cost and increase the production.

TECHNICAL SPECIFICATION :
1) Diameter of cord-3 to 15 mm
2) Cord Insertion - Possible
3) Speed - 320 rpm.
4) Production -1 meter. to 2 meter per minute.
5) Elect. Motor: 0.75 kw
6) Net weight 450 Kgs.

Suitable for Making rope Used in
-Flat rope
-Flat belt

-Elastic belt
-Shoelace
-Topline belt
-Fiber Glass Rope
-Cotton Rope

Applies varieties of material like:

Nylon, yarn, polypropylene, polyester, polypropylene

Note: Creel can be make as per requirement.

Other Information
Pay Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
Minimum Order Quantity: 1 Set
Port of Dispatch:Shanghai
Delivery Time: Within 2-3 weeks after technically and commercially clear order
Packaging Details: As per Order

Domestic Wooden Box Packing
Export Type Wooden Box (Vacuum Packing)
