Home > Products > New Products > brace web making machinery/ elastic cord braiding machine/ elastic band making machine XH90-25-4
brace web making machinery/ elastic cord braiding machine/ elastic band making machine XH90-25-4
- Shanghai
- T/T Credit Card
You May Like
-
90 Series 13 Spindle shoe laces braiding machine XH90-13-8
-
90 series 25 Spindle 2 head marine rope machine XH90-25-2
-
hollow braid rope making machine XH90-17-4
-
13 Spindle High speed flat belt braiding machine XH90-13-8
-
29 spindle high speed flat belt braiding machine
-
7 spindle high speed flat rope braiding machine XH80-7-4
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | XH90-25-4 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
brace web making machinery/ elastic cord braiding machine/ elastic band making machine XH90-25-4
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intelligent control system & advanced technology
- good quality & service and competitive price
- manufacturer & delivery on time
- CE,ISO9001
| XH90 Series High Speed Flat Belt Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| XH90-9-4 | 9 | 4 | 1050 X 400 X 1500 | 0.75 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-9-8 | 9 | 8 | 1780 X 750 X 1500 | 0.75 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-13-4 | 13 | 4 | 1150 X 450 X 1500 | 0.75 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-13-8 | 13 | 8 | 1700 X 1050 X 1500 | 1.1 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-17-4 | 17 | 4 | 1780 X 450 X 1500 | 1.1 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-21-4 | 21 | 4 | 1980 X 650 X 1600 | 1.5 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-25-2 | 25 | 2 | 1200 X 750 X 1500 | 0.75 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-25-4 | 25 | 4 | 2010 x 650 x 1600 | 1.5 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-29-2 | 29 | 2 | 1300 X 850 X 1500 | 0.75 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-33-2 | 33 | 2 | 1400 X 950 X 1500 | 1.1 | 320 | A | Φ48 X 140Φ48 X 113 | |
| XH90-45-1 | 45 | 1 | 1050 X 950 X 1500 | 0.75 | 320 | A | Φ48 X 140Φ48 X 113 | |
Range of products:
Flat rope,flat belt,elastic belt,shoelace,bandle,topline belt,underwear belt,and etc.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable

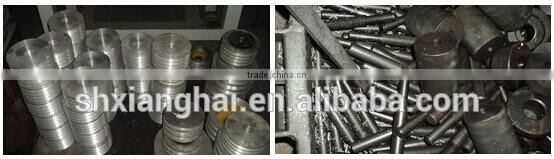

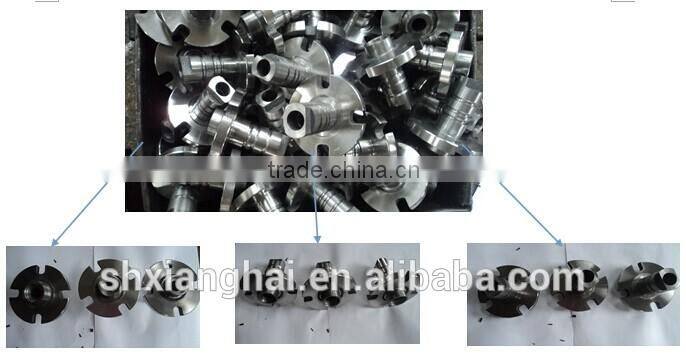

4. All the spare parts are made by ourselves, So we each production procedure of the control machine
samples:
About us
1. 1.Professional technical team:
2. comfortable working environment:
3. Certification:
Want to know more? Welcome to contact me ^_^
