Home > Products > Passive Video Balun > 8CH Passive Video Balun HY-808
8CH Passive Video Balun HY-808
US$ 12 - 14
/ Piece
5 Pieces(Min. Order)
- Xiamen
- Credit Card
You May Like
-
New Arrival Connectable Design Single Channel Passive Video Balun HY-105C
-
Press-fit Design Single Channel Passive Video Transmitter HY-102C
-
Toolfree Design Single Channel Passive Video Transmitter HY-006C
-
Toolfree Design Single Channel Passive Video Transmitter HY-006A
-
Right Angle Single Channel Passive Video Transceiver HY-101B
-
Single Channel Passive Video Transceiver HY-101CF
Product Details
| Place of Origin | Fujian, China | Brand Name | HONYEN | |
| Model Number | HY-808M |
Product Description
Specifications
1) 8CH passive video balun2) High performance video transmitting.
3) Built-in transient surpression protection.
Features:
a) 8CH passive video balun
b) Screw terminal, easy installation.
c) High quality discharging tube, perfect transient supression protection. Can work in bad weather.
d) CE, FCC, RoHs compliant, no importing obstruction.
Specification:
| Balun Type: | Passive |
| Video transmitting distance | 330m with passive video transceiver |
| 1500m with active video transceiver | |
| Video Formats: | NTSC, PAL, SECAM |
| Crosstalk & noise immunity: | 60dB |
| Built-in transient supression protection: | Yes |
| Frequency Response: | DC to 8MHz |
| Working temperature: | -10 Celsius to + 70 Celsius |
| Storage Temperature: | -30 Celsius to + 70 Celsius |
| Material: | Aluminium-alloy |

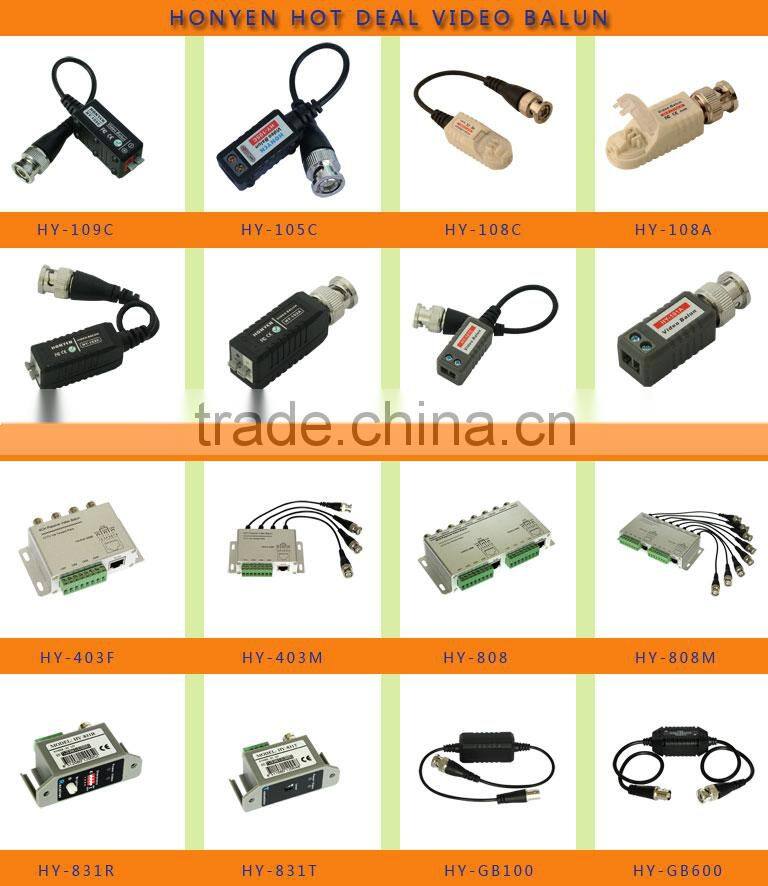

Hot deal Honyen Baluns:

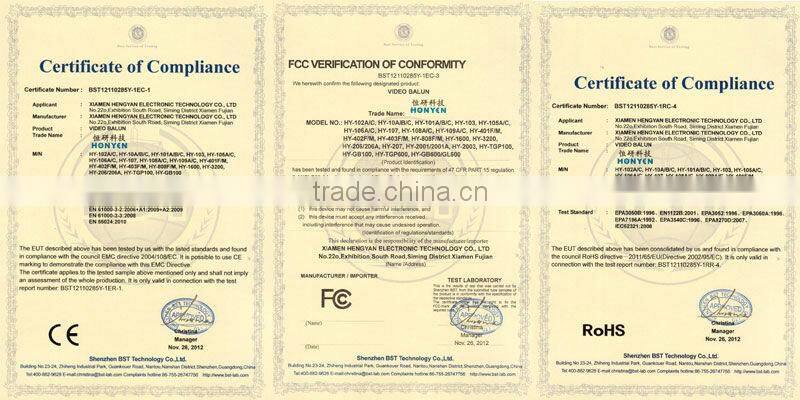

Certificates:

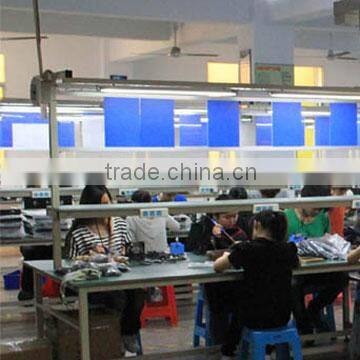

Workshop:
