Home > Products > New Arrival > 3af Pd splitter HY-110PD-PoE

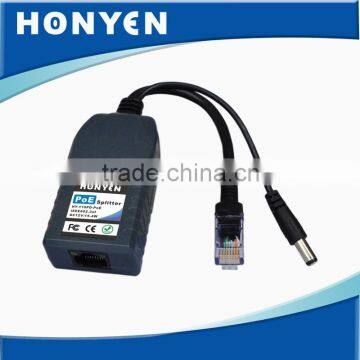

3af Pd splitter HY-110PD-PoE
Negotiable
/ Piece
200 Pieces(Min. Order)
- XIAMEN
You May Like
-
New design single channel passive AHD Video balun HY-109AL-HD
-
New design single channel passive TVI Video balun HY-109AL-HD
-
New design single channel passive AHD Video balun HY-109CL-HD
-
New design single channel passive TVI Video balun HY-105AL-HD
-
New design single channel passive AHD Video balun HY-105AL-HD
-
New arrival single channel passive tvi balun HY-102C-HD
Product Details
| Place of Origin | Fujian, China | Brand Name | HONYEN | |
| Model Number | HY-110PD-POE |
Product Description
Specifications
1) IEEE802.3af/15.4W2) Compatible with mode A (End-span) and B (Mid-span)
3) Power output : DC12V1A.
Features:
a) Standard PD splitter, compatible with mode A ( End-span) and B (Mid-span).
b) For 10M/100M device PoE solution
c) Plug and Play, no configuration required
Specification:
| Transmission Medium: | Cat5/5e/6 UTP |
| Input voltage: | DC36V~57V |
Transmission Distance: --See the Power-Distance Chart | 100m (Max) |
| Transmission Bandwidth: | 10M/100M |
| Working Temperature: | 0Celsius - + 55 Celsius |
| Storage Temperature: | -40 Celsius - +85Celsius |
| Humidity: | 0 to 95% |
| DC Plug Specifation: | ID 2.1mm, OD 5.5mm |
| Dimension: | 52mm * 28mm * 21mm with 15cm cable |
Diagram:
Certificates:
