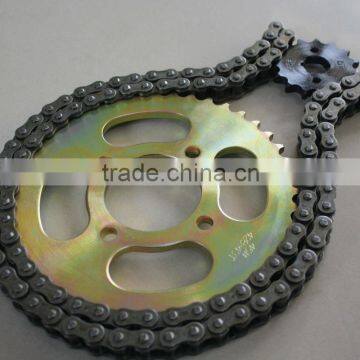

428H/530 Motor cycle chain

FOB Price

USD $1.25 - $2.25 / Piece

1000 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Motorcycle Chain		Place of Origin	Shandong, China
Brand Name	HP		Model Number	428H

Product Description

Specifications

428H motor cycle chain
*Material:45Mn(plates)30CrMnTi(pin)20CrMnMo(bush)#10 steel(roller)
*Pitch12.70mm
*Roller diameter:7.77

1,Name: 428H/530 Motor cycle chain

2,Mode: 420/428/428H/530/630

3,Parameters:

Changtai Chain No.	Pitch	Roller Diameter	Width between inner plater	Pin diameter	Pin length		Inner plate depth	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d₁ max	b₁ min	d₂ max	L min	L_c max	h₂ max	Q min	Q_o	q
	mm	mm	mm	mm	mm	mm	mm	KN	KN	kg/m
420	12.70	7.77	6.35	3.96	14.75	16.10	12.00	16.00	16.50	0.60
428	12.70	8.51	7.75	4.45	16.70	18.05	12.00	17.80	18.50	0.72
428H	12.70	8.51	7.94	4.51	18.90	20.10	12.00	20.60	21.50	0.85
530	15.875	10.16	9.40	5.08	20.90	22.20	15.00	26.50	29.70	1.08
630	19.05	11.91	9.40	5.94	22.70	24.00	18.00	35.00	37.00	1.44

4,Material: 45Mn(Plate)+30CrMnTi(Pin)+20CrMnMo(Bush)+No.10 steel(Roller)

5,Packing:

Inner:plastic bag or small carton

Outer:30 bags/Carton

25 small catons/carton(size:43X22X12.5<cm>)

6,Factory:

Wulian Changtai Machinery Manufacturing Co.,Ltd is a production company which professional committed to highclass chain.We were founded in 1998, our factory has a floor area of 16800 square meters and located in RIZHAO CITY SHANGDONG PROVINCE.Our main products are motorcycle chain,agricultural chain,machinery chain and so on.
