Home > Products > Other Chain > Chinese High Quality Motorcycle Sprocket Chain
Chinese High Quality Motorcycle Sprocket Chain
- 5 Piece / Pieces per Month
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Changtai/Lupai/Hengpai | |
| Model Number | 420/428/428H/530/630 | Structure | Chain Wheel | |
| Function | Transmission Chain | Material | Other, 45Mn, 45 Mn | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
1.have 15 years experience is chain field2.heat treatment
.we accept L/C,T/T payment terms

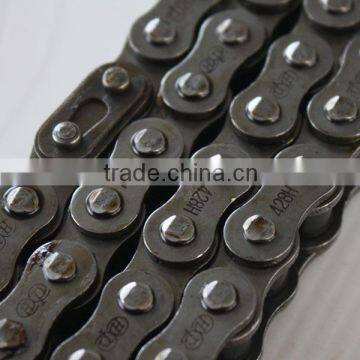

Motorcycle Sprocket Chains
Changtai Chain No. | Pitch | Roller Diameter | Width between inner plater | Pin diameter | Pin length | Inner plate depth | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L min | Lc max | h2 max | Q min | Qo | q | |
mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | |
420 | 12.70 | 7.77 | 6.35 | 3.96 | 14.75 | 16.10 | 12.00 | 16.00 | 16.50 | 0.60 |
428 | 12.70 | 8.51 | 7.75 | 4.45 | 16.70 | 18.05 | 12.00 | 17.80 | 18.50 | 0.72 |
428H | 12.70 | 8.51 | 7.94 | 4.51 | 18.90 | 20.10 | 12.00 | 20.60 | 21.50 | 0.85 |
530 | 15.875 | 10.16 | 9.40 | 5.08 | 20.90 | 22.20 | 15.00 | 26.50 | 29.70 | 1.08 |
630 | 19.05 | 11.91 | 9.40 | 5.94 | 22.70 | 24.00 | 18.00 | 35.00 | 37.00 | 1.44 |
Specification:
1, Model:420,428,428H,530,630
2, Suit to Honda,Yamaha,Suzuki,Kawasaki
3, Good quality and reasonable price
4, OEM SERVICE
5, Material:45Mn(Plate)+30CrMnTi(Pin)+CrMnMo(inner roller)+No.10 steel(outer roller)
6, Always in 100links/pc,98,102,104,112,116 or as your order.
7, Riveting:Two side riveting or four side riveting.
8, Heat treatment(quenching and tempering)
9, Pre-stretching and Running in each motorcycle chain.
10,Good lubrication with excellent grease.
