Home > Products > Set top box > HD Combo Dvb s2 Dvb t Satellite Receiver

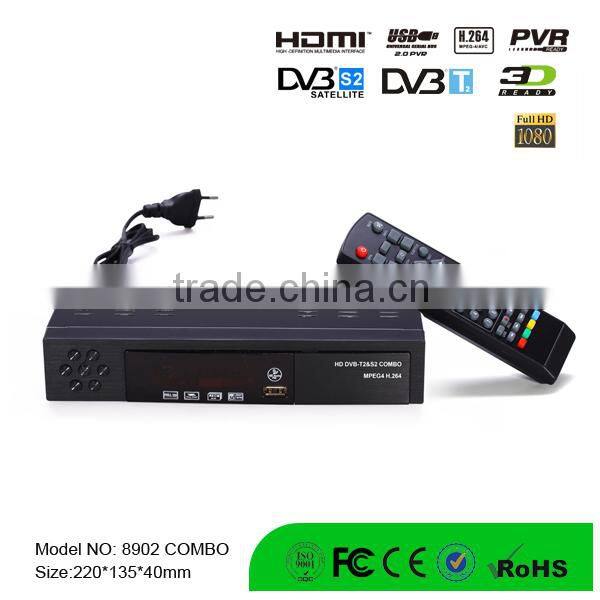

HD Combo Dvb s2 Dvb t Satellite Receiver
US$ 1 - 20
/ Set
1 Set(Min. Order)
- china main port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Full HD DVB T2+S2 Combo Digital Satellite Receiver Quality Choice
-
Full HD DVB T2 Set Top Box/DVB S2 Set Top Box
-
DVB-S2 DVB-T2 COMBO With HDTV Channels and Connector FTA HD Satellite Receiver Decoder Dvbs2 Dvbt2 Set Top Box
-
2015 Hot-sale hd Combo Dvb-s2 Dvb-t2 Satellite Receiver for Arica Asia DVB-T2 DVB-S2 HD Set Top Box Quality Choice
-
European Standard High Definition DVB-T2 DVB-S2 Combo Digital Receiver
-
Receiver Dvb-s2 Dvb-t2
Product Details
| Place of Origin | Sichuan, China | Brand Name | Shineco | |
| Model Number | 8901 Combo |
Product Description
HD combo dvb s2 dvb t satellite receiver
Please add my Skype to talk details: Jacky.shineco
| Hardware | ||||
| CPU | Montage VT6000 (128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | Montage DM6000 Chip Set | |||
| S2+TUNER | Montage TS2022 Chip Set | |||
| T2+TUNER | MaxLinear MXL 608 | |||
| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel KEY, POWER, CH+ ,CH- | ||||
| Rear Panel | S2 LNB IN input connector | IEC60169-2 | ||
| T2 ANT input connector | IEC-162-2(IEC Female) | |||
| HDMI V1.3 | ||||
| RCA CVBS AL AR Connector x1 | ||||
| Ypbpr RCAx1 | ||||
| Coaxial x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| DVB-T2 Demodulation | ||||
| DVB-T2 Demodulation | Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744) | |||
| Input RF Frequency 48~866MHZ | ||||
| Bandwidth6MHz,7MHz,8MHz | ||||
| Constellation QPSK 16-QAM 64-QAM and 256-QAM | ||||
| FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 | ||||
| Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4 | ||||
| FFT Mode 2K/ 8K/32K | ||||
| Support Single and multiple PLPS | ||||
| Input level -83~ -5dBm | ||||
| DVB-S2 Channel Decoder | ||||
| DVB-S2 Channel Decoder | Frequency Range | 950MHz-2150MHz | ||
| Sensitivity Level | - 10~ - 81dBm | |||
| Mode IFFT | 2k,8k | |||
| FEC Mode | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
| Guard intervals | 1/4,1/8,1/16,1/32 | |||
| Constellation | QPSK,8PSK,16APSK | |||
| Neighboring channels immunity and Protection | According to ETSI TR 101 190 V1.2.1 | |||
| Active Ant Power | 13/18V DC @ 500mA MAX,Overload Protection | |||
| Sortware Features | ||||
| •Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard | ||||
| •Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard | ||||
| •Support BISS KEY | ||||
| •Supports single / multiple or blind search satellite search | ||||
| •DiSEqC 1.0 / 1.1 / 1.2 | ||||
| •The maximum speed of the traffic flow of at least 50 Mbit / sec | ||||
| •Support 3D interface | ||||
| •Sleep Timer | ||||
| •Support teletext/subtitle/muti-language | ||||
| •Powerful and highly effective 7-day EPG function | ||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | |||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding | |||
| Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) | |||
| Photo Codec | JPEG, BMP, PNG | |||
| License | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||

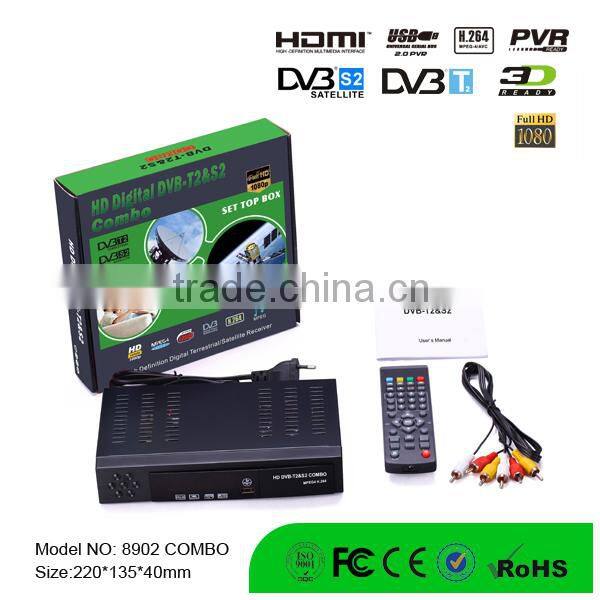

| Accessories | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable optional | ||||
| IR remote control | ||||
| User Manual | ||||
| Loading | ||||
| Loading | machine size | 168*95*37mmmm | Packaged size | |
| machine weight | Packaged weight | |||
| Loading for 40GP | Loading for 20HQ | |||
Market of DVB-T2 can be Used
Russian Version:
Russian Federation,Belarus,Kazakhstan,Uzbekistan,Azerbaijan…..etc.
English Version:
Europe Area:Germany,France,Belgium,Norway,Finland,Sweden,Austria,Poland,Switzerland,Netherlands,Hungary,Greece,Ireland,Portugal,Spain,Italy,Slovenia,Slovakia,Romania,Colombia…..etc.
Asia Area:Singapore,Indonesia,Malaysia,Thailand,Israel….etc
The Pacific Area:Australia,New Zealand…etc.
Mideast Area:Saudi Arabia,Iran,Turkey....
