Ingersoll Rand Air Compressor Part
US$ 1,000 - 20,000
/ Unit
1 Unit(Min. Order)
- Xiamen
- T/T Credit Card PayPal
You May Like
-
Ingersoll Rand SSR Air Compressor
-
Ingersoll Rand ML45 MM45 MH45 Mj45 Air Compressor
-
Ingersoll Rand Mining 750cfm Prices Portable Diesel Air Compressor
-
Ingersoll Rand HP650 Diesel Portable Air Compressor for Sale
-
Ingersoll Rand Screw Diesel Portable Air Compressor
-
DOOSAN High Pressure Portable Diesel Screw Air Compressor
Product Details
| Condition | New | Type | Screw | |
| Configuration | Stationary | Power Source | AC Power | |
| Lubrication Style | Oil-less | Mute | Other, Yes, ultra-silence | |
| Place of Origin | Shanghai, China | Brand Name | Ingersoll rand | |
| Model Number | ML45 MM45 MH45 Mj45, Ingersoll Rand air compressor part | Voltage | 380-415V | |
| Dimension(L*W*H) | 1689mm*1605m*1696mm, 2432*1265*2032 MM | Weight | 1270kg, 1270kg | |
| Certification | EPA ISO 9001;CE;GC | Warranty | 1 year or 2000 hours | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Ingersoll Rand air compressor part1.Intellisys control system
2.high efficiency motor
3.Standard IP55
Product Description

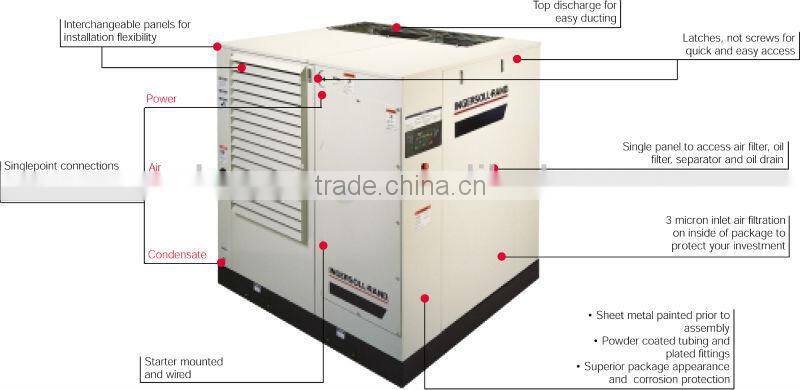

Ingersoll Rand air compressor part specification
• Reliability
• Ease of installation
• Accurate information
• Easy and low cost of maintenance
• Efficiency
• Quiet operation
• Flexible options • Reliability
• Ease of installation
• Accurate information
• Easy and low cost of maintenance
• Efficiency
• Quiet operation
• Flexible options
| Advantages | Specifications | |
| 1 | Remote start/stop | This option gives you offsite on/ off control. |
| 2 | Outdoor modification | Outdoor modification includes IP65 option and moves the package discharge from the top of the package to the side. |
| 3 | Star Delta Starting | A motor requires 600% of its full load amps to start. With star delta starting, the current used to start is only 200%, resulting in a cushioned start for both mechanical and electrical components (standard on 50Hz units). |
| 4 | Intellisys System Controller (ISC) | Maintains system pressure while minimizing operating costs. |
| 5 | Condensate Separator System (CSS) | Provides clean water disposal with minimal operating costs. |
| 6 | Watercooled | SSRs can be outfitted with a variety of watercooled heat exchangers. The standard cooler is admiralty brass with options existing for 90/10 copper nickel, 70/30 copper nickel and stainless steel. |
| 7 | Heavy Duty filter | The heavy duty air filter is designed for applications where the heavy dust load would cause the air filter to plug early. |
| 8 | IP65 | For those applications where the compressor will be exposed to water. |
| 9 | Heavy Duty filter | The heavy duty air filter is designed for applications where the heavy dust load would cause the air filter to plug early. |
Ingersoll Rand air compressor part -Parameter
| Type | 0.8 Mpa air compressor part | ||
| Mode | SSR45 A/C W/C | ||
| Manufacturer | Ingersoll-Rand | ||
| Capacity | m3/min | ML:10.1 m3/min MM:9.1 m3/min MH:8.3 m3/min | |
| Discharge pressure | Kg/cm2 | ML:7.5 barg MM:8.5 barg MH:10 barg MJ:11.4 barg | |
| Noise level | dB(A) | 76 | |
| Cooling method | Air-cooled Water-cooled | ||
| Connection | NPT(inch) | 1.5 | |
| Outline dimension (L/W/H) | mm | 1689/1605/1696 | |
| Weight | Kg | 1270 | |
| Motor | Motor power | KW | 45kW |
| Power requirement & Startup mode | V/Hz/Ph | 380-415V/50Hz/3Ph, | |
| Motor protection class | IP55 | ||
FAQ
| Purchase Information | MOD | 1 PCS |
| warranty | 1 years | |
| Leading Time | within 20days after payment | |
| Payment | L/C,T/T,Western Union,MoneyGram,Paypal, Escrow | |
| Unit Price | EXW OR FOB Xiamen, (also can be CIF, CRF Destination) |

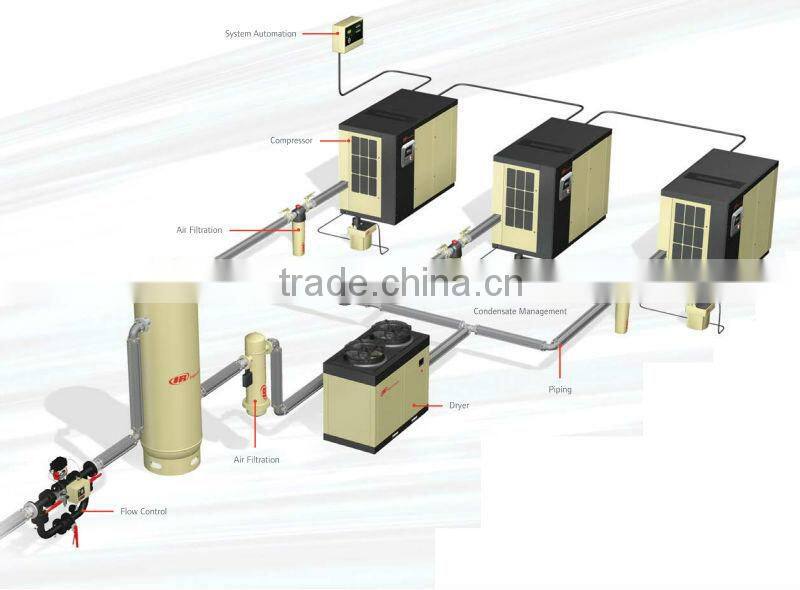

From compressors to system automation and everything in between, Ingersoll Rand is your
total solution provider.
Our Services
1. Warranty: 1 year or 2000 hours
2. All The World Have Engine Maintenance Center
3. Online Technical Service

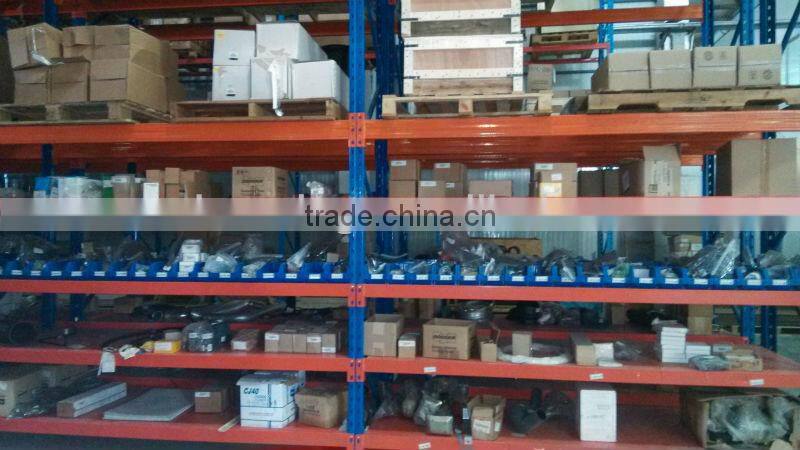

4. Supply Original Spare Parts
Company Information
Our Certificate
Zhaoxing can provide you with the following :
Contact Us
- Xiamen Zhaoxing Machinery & Electric Equipment Co., Ltd.
- Contact nameJenny Lin Chat Now
- Phone86-0592-5689018
- Address185-9 Dongdu Road, Xiamen, Fujian
