FNS Type, Air Cooled Condenser Series, CE Certificate

Specifications

Introduction
Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments.
Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.

Features
1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;
3. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;
4. Application for R22,R134a,R404a,R407C etc. refrigerant;
5. FNS condenser utilized large air volume and low speed internal motors with low noise,beautiful appearance; Application for refrigerant equipments which demand high requirements of noise;
6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.

Models Specifications
FN S ----- 80 A
FN--- Condenser Products Code
S--- Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)
80--- Heat Exchange Area

A--- Version Code

FNS Type: Low Noise Models: FNS-25 to FNS-150
FNS Air Cooled Condenser

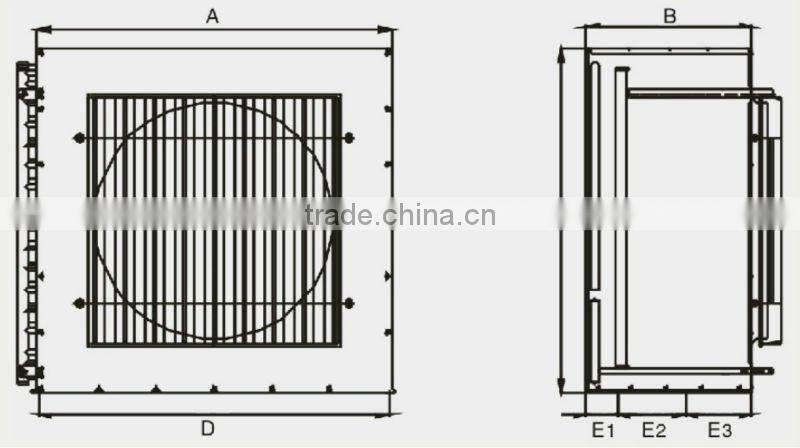

Overall Size

Technical Data
