Top Quality and Energy-saving Air Cooled Condenser Series for Cold Room Storage

Introduction
Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. ow we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.
Features
1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. refrigerant;
5. FNS condenser utilized large air volume and low speed internal motors with low noise,beautiful appearance; Application for refrigerant equipments which demand high requirements of noise;
6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.

Models Specifications
FN S ----- 80 A

FN---Condenser Products Code

S---Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)

80---Heat Exchange Area

A---Model Change Design Code

FN Type: Standard Models: FN-2 to FN-180

Overall Size:

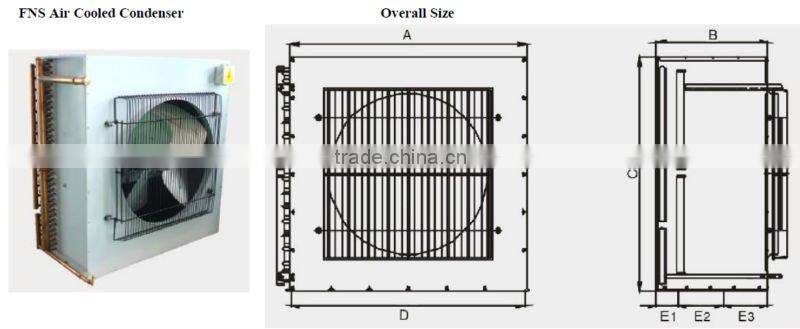

FNS Type: Low Noise Models: FNS-25 to FNS-150

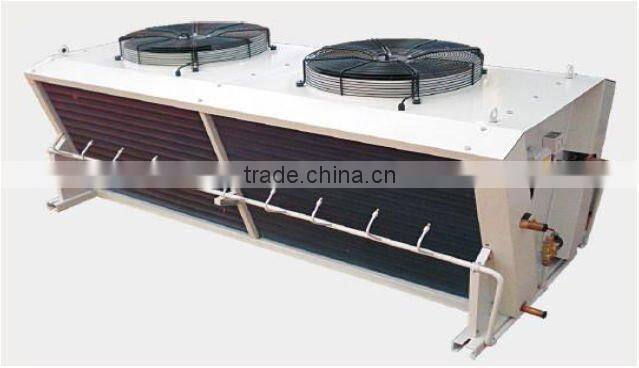

FNV Type: Air Top Outlet Models: FNV-70A to FNV-505A

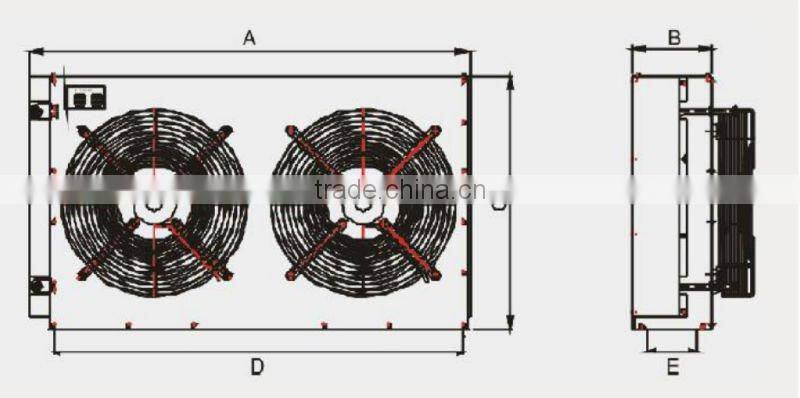

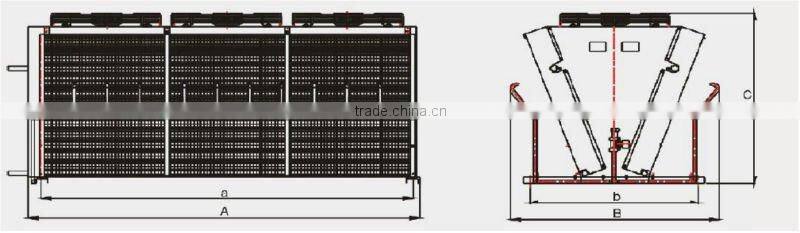

Overall Size

FNP Type: Water Spray Models: FNP-70 to FNP-505

Overall Size

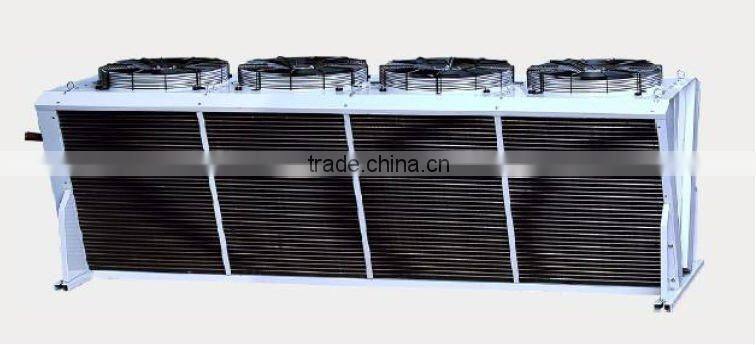

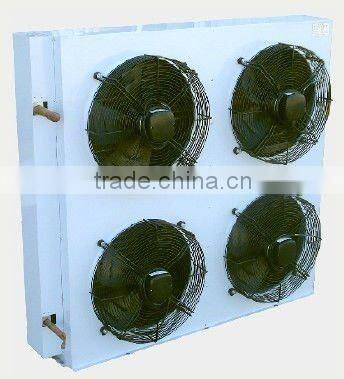

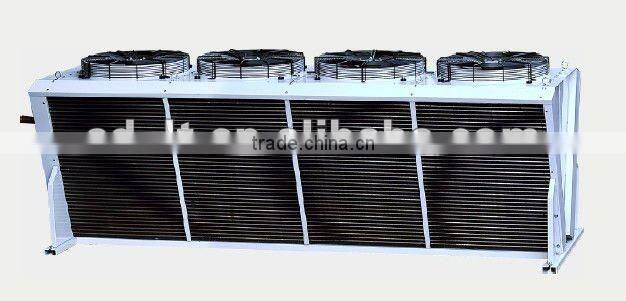

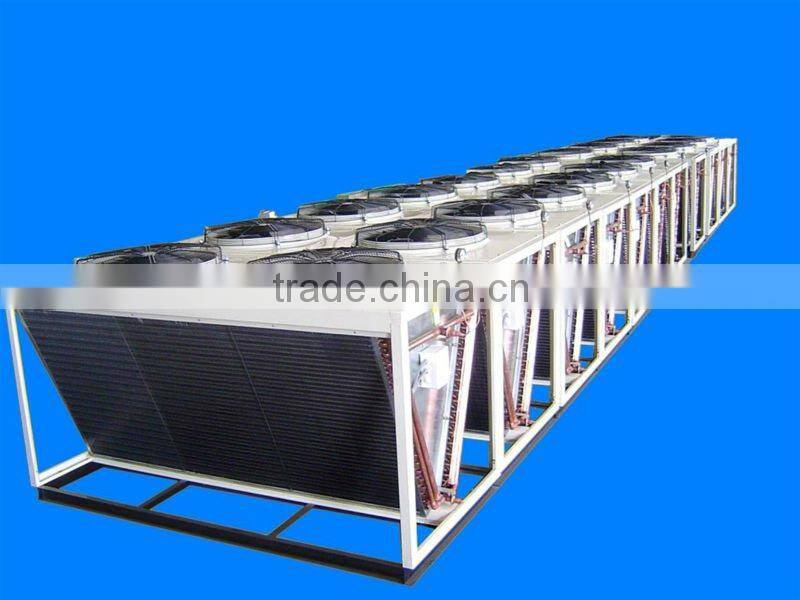

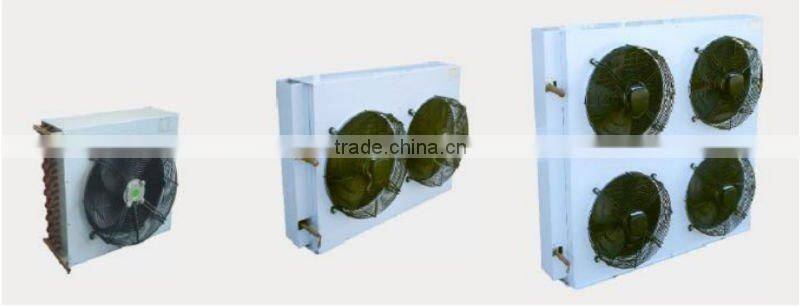

Products Pictures

Product Certificates
