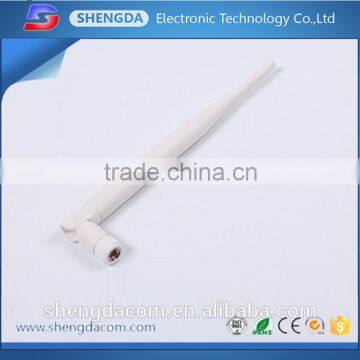

850Mhz foldable L shape indoor rubber antenna/5dBi omni portable RF antenna with SMA-Male and white color

SD34   Multi band GSM anetnna

Frequency Range(MHz): 800/900/1800/1900/2100Mhz

VSWR:less than 1.3

                    SD42

Frequency:900/1800MHz
VSWR:less than 1.3
Gain:5.5dBi
Connector:SMA-male
Magnet Base Dia:42mm
Cable: 3m RG174 cable

              SDD5

Frequency：900/1800 MHz
VSWR：Less 1.5
Gain：3.5 dBi
Connector：SMA-male
Color: Black
Hight:55 mm

                  SDT4

Frequency:890-960MHz
VSWR:less than 1.3
Gain:3.5dBi
Max. Power Input:50W
Connector:SMA-male
Cable: 3m RG174 cable

                    SDXQX1

Frequency：890-960 MHz
VSWR：Less 1.5
Gain：3.5 dBi
Connector：N-Female
Color: Gray /White
Hight:185 mm

SDBF0.5F  GSM qual band

Frequency Range: 800/900/1800/1900/2100/2400MHz
VSWR: less than 1.5
Gain: 9.0 dBi
Polarization: Vertical
Maximun Power input: 500W
Connector Type: N-Female
Hight: 500mm
Radome Material: Fiberglass
Color: White

SDD21   Hot style Hot sale

Frequency：900/1800 MHz
Gain：5.5 dBi
Polarization：Vertical
Connector：SMA-male
Color: Black
Hight:210 mm

SDY890/960

Frequency Range: 890-960 MHz
Impedance: 50 ohm
VSWR: 1.5
Gain: 11.0 dBi
Polarization: Vertical
Horizontal 3dB Beam Width: 53°
Vertical 3dB Beam Width: 48°
Front To Back Ratio: >15 dB
Connector: N-Female(or according customer require)
Length: 490 mm
Mounting hardware: Ø40～Ø50 mm

M150

Frequency Range: 144MHz
VSWR: less than 1.5
Gain: 3.5dBi
Connector: UHF
Height: 500 mm

PO150

Frequency Range: 144MHz
VSWR: less than 1.5
Gain: 3.5dBi
Connector: UHF
Height: 1270 mm

SD-HF-1 (hot sale)

Frequency Range: 7-50MHz
Impedance: 50 Ohm
VSWR: Less than1.5
Gain: 3 dBi
Height: 1165mm
Radome Material:Whip steel
Color: Black

770S  Diamond mobile antenna

Frequency Range: 144MHz/430MHz
VSWR: less than 1.5
Gain: 2.5dBi/3.5dBi
Polarization: Vertical
Max. Power Input-watts: 50 W
Connector: UHF
Height: 500 mm

                 438V or U

Frequency Range: 136-174MHz or 400-470MHz
VSWR:less than 1.5
Gain: 5.5 dBi
Polarization: Vertical
Radiation: Omni
Connector: UHF
Height: 830 mm

SG506  Diamond mobile antenna

Frequency Range: 144MHz/430MHz
VSWR: less than 1.5
Gain: 2.5dBi/5.0dBi
Connector: UHF
Height: 630 mm

SDN2  NMO mobile antenna

Frequency Range: 136-470MHz
VSWR: less than 1.5
Gain: 3.0dBi
Polarization: Vertical
Max. Power Input-watts: 200 W
Connector: MNO
Height: 450 mm

SG7500 Diamond antenna

Frequency Range: 144MHz/430MHz
VSWR: less than 1.5
Gain: 3.5dBi/6.5dBi
Polarization: Vertical
Max. Power Input-watts: 150 W
Connector: UHF
Height: 1050 mm

SDN4  NMO mobile antenna

Frequency Range: 136-174MHz
VSWR: less than 1.5
Gain: 3.5dBi
Polarization: Vertical
Max. Power Input-watts: 200 W
Connector: MNO
Height: 1360 mm
